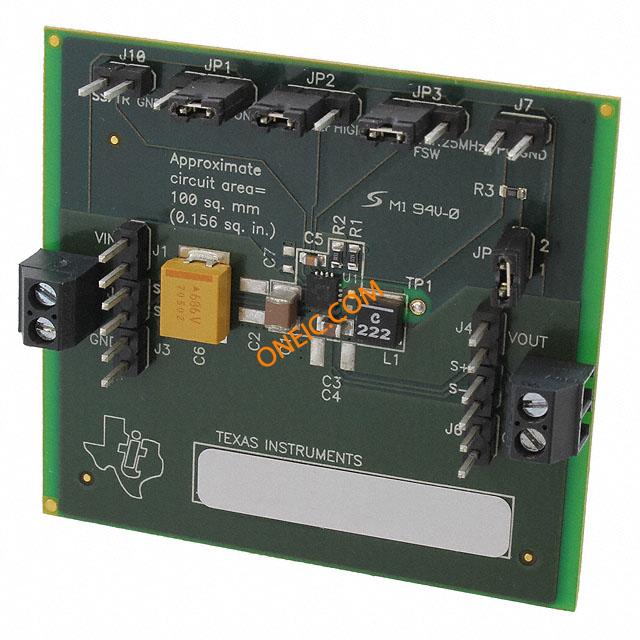

TPS62150EVM-505
| Manufacturer | |
| Description | EVALUATION MODULE IS SET TO A 3.3-V OUTPUT AND WITH AN INPUT VOLTAGE BETWEEN 3.7 V AND 17 V EVAL MODULE FOR TPS62150-505 Power Management IC Development Tools TPS62150 Eval Mod TPS62150, STEP DOWN CONVERTER, EVAL MOD EVAL BOARD, TPS62150 1A SYNC STEP DOWN REG |
| Category |
Business
| Product | Evaluation Boards | Product Category | Power Management IC Development Tools |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | RoHS Not Applicable | Tariff No | 84733020 |
Electrical
| Voltage Rating | 3.7 V to 17 V | Current - Output | 1A |
| Number of Elements | :TPS62150 | Regulator Topology | Buck |
| Voltage - Input (Min) | 3.3V | ||
Mechanical
| Weight | 0.25 | Board Thickness | Fully Populated |
Product Info
| Type | Voltage Regulators - Switching Regulators | Contents | Board |
| Features | :- | Kit Type | :Power Management |
| Kit Contents | :Eval Module TPS62150 | Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated | Tool Type Feature | TPS62150 |
| Utilized IC / Part | TPS62150 | Chipset Manufacturer | :Texas Instruments |
| Application Specifics | :Synchronous Step Down Converter | ||
Documents & Media
Similar Parts
TPS62150RGTT
Texas Instruments
DC/DC Switching Regulators 3-17V 1A SD Cnvrtr Conv DC-DC Single Step Down 3V to 17V 16-Pin VQFN EP T/R IC REG BUCK SYNC ADJ 1A 16QFN Voltage Regulators - Switching Regulators 3-17V 1A SD Cnvrtr 3–17V 1A Step-Down Converter with DCS-Control in 3x3 QFN package Texas Instruments 降压 开关稳压器, 1A, 可调输出, 0.9 → 6 V, 2.5 MHz, 16针 QFN封装 Switching Voltage Regulators 3-17V 1A SD Cnvrtr
TPS62150RGTR
Texas Instruments
DC/DC Switching Regulators 3-17V 1A SD Cnvrtr Conv DC-DC Single Step Down 3V to 17V 16-Pin VQFN EP T/R IC REG BUCK SYNC ADJ 1A 16QFN Voltage Regulators - Switching Regulators 3-17V 1A SD Cnvrtr 3–17V 1A Step-Down Converter with DCS-Control in 3x3 QFN package Switching Voltage Regulators 3-17V 1A SD Cnvrtr
TPS62150RGTRF0
Texas Instruments
IC REG BUCK SYNC ADJ 1A 16QFN Conv DC-DC Single Step Down 3V to 17V T/R Switching Voltage Regulators 3-17V 1A SD Cnvrtr
TPS62150ARGTT
Texas Instruments
IC REG BUCK SYNC ADJ 1A 16QFN Voltage Regulators - Switching Regulators 3-17V 1A 3MHz SD Converter Conv DC-DC Single Step Down 3V to 17V 16-Pin VQFN EP T/R IC, SYNC STEP DOWN, 2.5MHZ, QFN-16 3-17V 1A 3MHz Step-Down Converter with DCS-Control in 3x3 QFN Package Texas Instruments 降压 开关稳压器, 1A, 可调输出, 0.9 → 6 V, 2.5 MHz, 16针 QFN封装 Switching Voltage Regulators 3-17V 1A 3MHz SD Converter
