TPS60500DGSR
| Manufacturer | |
| Description | Charge Pump STPDN 0.8V to 3.3V 250mA 10-Pin VSSOP T/R IC REG BUCK SWITCHED CAP 10MSOP Voltage Regulators - Switching Regulators 250-mA Adj Hi-Eff Step-Dwn Chrg Pump BUCK, CHRGPUMP, 0.25A, ADJ, 10MSOP 250-mA Adjustable (0.8V-3.3V) High-Efficiency Step-Down Charge Pump DC/DC Converter IC 0.8...3.3 VDC VSSOP-10, TPS60500, TPS60500DGSR, Texas Instruments Switching Voltage Regulators 250-mA Adj Hi-Eff Step-Dwn Chrg Pump |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-17015-2 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Efficiency | 90 | Output Type | Adjustable |
| Voltage Rating | 0.8 to 3.3 V | Current - Output | 250(Max) mA |
| Number of Outputs | 1 | Frequency - Switching | 800kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | 0.8 V ~ 3.3 V |
| Voltage - Supply (Min) | 1.8 V | Current - Quiescent (Iq) | 0.04 |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 3 mm | Weight | 0.000663 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :10 | Package / Case | 10VSSOP |
| Package Cooled | VSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.1(Max) | Package Quantity | VSSOP |
| Number of Positions | 10 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 10-VSSOP | ||
Product Info
| Type | Step-Down (Buck), Switched Capacitor (Charge Pump) | Series | TPS60500 |
| Function | Step Down | Software | SLVS391B |
| Topology | Buck | Application | Consumer & Portable Electronics |
| Pattern Number | Y | Utilized IC / Part | View |
| Printed Circuit Board | 10 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
TPS60500DGSR
texas instruments
Charge Pump STPDN 0.8V to 3.3V 250mA 10-Pin VSSOP T/R IC REG BUCK SWITCHED CAP 10MSOP Voltage Regulators - Switching Regulators 250-mA Adj Hi-Eff Step-Dwn Chrg Pump BUCK, CHRGPUMP, 0.25A, ADJ, 10MSOP 250-mA Adjustable (0.8V-3.3V) High-Efficiency Step-Down Charge Pump DC/DC Converter IC 0.8...3.3 VDC VSSOP-10, TPS60500, TPS60500DGSR, Texas Instruments Switching Voltage Regulators 250-mA Adj Hi-Eff Step-Dwn Chrg Pump
$5.9800
Details

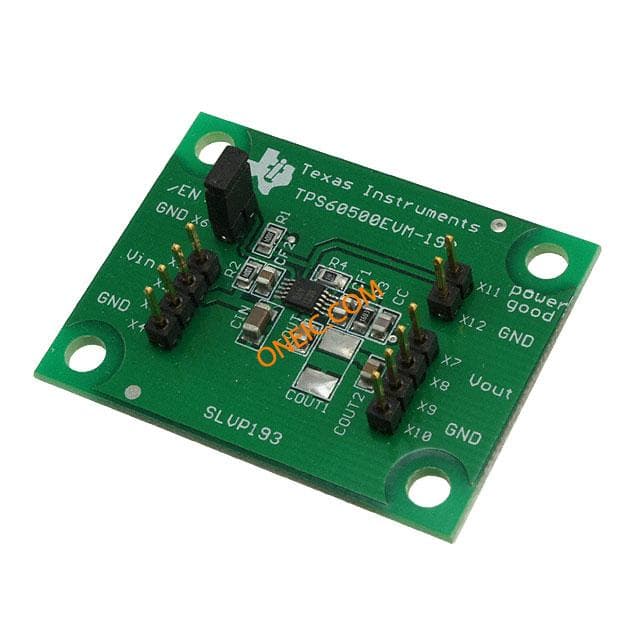

TPS60500EVM-193
