TPS40210DRCT
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-23413-2 | Product Category | Switching Controllers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SON | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| PWM Type | Current Mode | Frequency | :1000kHz |
| Duty Cycle | 95 % | Cuk Converter | No |
| Buck Converter | No | Isolated Power | No |
| Regulator Type | :Step Up (Boost) | Voltage Rating | 5 to 260 V |
| Boost Converter | Yes | Frequency - Max | 1MHz |
| Current - Output | 400 mA | Duty Cycle (Max) | 95 % |
| Voltage - Supply | 4.5 V ~ 52 V | Doubler Converter | No |
| Flyback Converter | Yes | Number of Outputs | 1 |
| Divider/Multiplier | No | Inverting Converter | No |
| Current Rating (Max) | Catalog | Frequency - Switching | 35 to 1000 kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | :12V |
| Voltage - Supply (Min) | 52 V | Number of Outputs and Type | 1 |
| Voltage - Continuous Operating (Max) (MCOV) | :52V | Voltage - Output Difference (Typ) @ Distance | :5V |
Mechanical
| Width | 3.1(Max) | Weight | 0.000921 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Contact Form | Yes |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :10 | Package / Case | 10VSON EP |
| Package Cooled | VSON EP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 3.1(Max) | Package Quantity | VSON EP |
| Number of Positions | 10 | Shell Size - Insert | 0.95(Max) |
Product Info
| Type | Current Mode PWM Controllers | Series | TPS40210 |
| Features | Enable Frequency Synchronization | Software | SLUS772F |
| Topology | Boost|Flyback | Base Unit | :40210 |
| Application | Industrial | Control Method | Current Mode PWM Controller |
| Pattern Number | Y | Functional Diagram | fbd_slus772f.gif |
| Utilized IC / Part | View | Output Configuration | Yes |
| Printed Circuit Board | 10 | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
PDF Document
Online Document
Similar Parts
TLV431ACDBVR
texas instruments
$1.2736
Details
SN74LVC2G07DBVR
texas instruments
$0.6011
Details
TPS61040DBVR
texas instruments
$4.5448
Details
CSD17308Q3
texas instruments
$1.7265
Details
SN74LVC08ADT
texas instruments
$3.2300
Details
TPS2410PW
texas instruments
$15.4428
Details
7447709100
Wurth Electronics
$9.5737
Details
SN74LVC08APWR
texas instruments
$2.1330
Details
TPS2411PW
texas instruments
$15.4428
Details
TPS23851DCE
texas instruments
$38.8450
Details

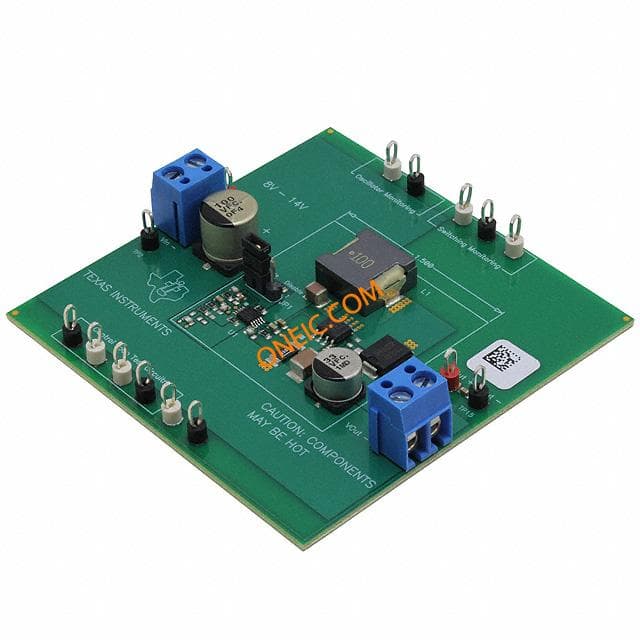

TPS40210EVM
