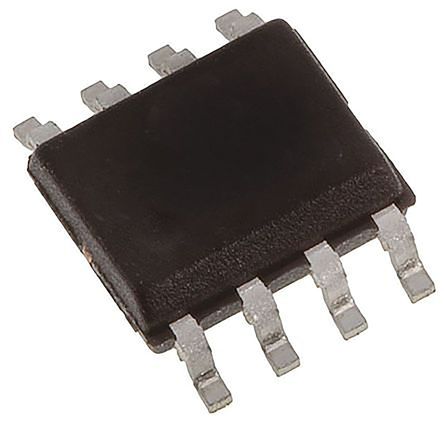

TPS2065D
| Manufacturer | |
| Description | USB Power SW Hi Side/DIST Single 5.5V 1.5A 8-Pin SOIC Tube Power Switch ICs - USB Sngl 1A Crnt-Lit Pwr-Dstibtn Switches IC 1.5A POWER DIST SWITCH 8-SOIC IC, POWER DIS SWITCH, SINGLE, 1A IC, POWER DISTRIBUTION SWTCH Single 1A Current-Limited, Power-Distribution Switches for USB Applications , 四 USB 电源开关, 高侧, 70mΩ, 2.7 V min., 8针 SOIC封装 Power Switch ICs - Power Distribution Sngl 1A Crnt-Lit Pwr-Dstibtn Switches |
| Category |
Business
| Product Category | Power Switch ICs - USB | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Turn On Time | 3 ms | Current - Test | 1 |
| Voltage Rating | :5.5V | Current - Output | 1 A |
| Voltage - Supply | 2.7 V | Number of Outputs | 1 |
| Number of Channels | :1 | Regulator Topology | Constant-Current |
| Current Rating (Max) | :1A | Voltage - Input (Min) | 2.7 to 5.5 V |
| Rds On (Max) @ Id, Vgs | 135 mOhm | Switch Function/Rating | N-channel |
| Power Dissipation (Max) | :585.82mW | Input Logic Level - High | :Active High |
| On-State Resistance (Max) | 150 mOhms | Current - Short Circuit (Isc) | 1.5 A |
| Switch Time (Ton, Toff) (Max) | 10 ms | Common Mode Transient Immunity (Min) | Industrial |
| Drive Voltage (Max Rds On, Min Rds On) | 70 | ||
Mechanical
| Width | 4(Max) | Weight | 0.002561 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Type | High Side Switch|USB Power Distribution Switch | Series | TPS2065 |
| DELETED | Compliant | Software | SLVS490I |
| Base Unit | :2065 | Switch Type | :High Side |
| Programmable | Active High | Internal Switch(s) | Yes |
| Number of Switches | 1 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -40 to 85 | Thermal Resistance | :Yes |
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
