TPD4E001DRLR
| Manufacturer | |
| Description | ESD Suppressor Diode Arrays ±15KV 6-Pin SOT T/R ESD Suppressors 4-Channel +/- 15KV ESD Protection Array ESD Suppressor Diode Arrays ±15KV 6-Pin SOT-563 T/R TVS DIODE 5.5VWM SOT6 TVS Diode Array TPD4E001DRLR, SOT 6-Pin ESD Suppressor Diode Arrays ?15KV 6-Pin SOT-563 T/R DIODE, TVS Low-Capacitance 4-Channel +/-15-kV ESD Protection Array for High-Speed Data Interfaces Texas Instruments TVS 二极管阵列, 6针 SOT-553封装 ESD Suppressors / TVS Diodes 4-Channel +/- 15KV ESD Protection Array |
| Category |
Business
| Other Names | 296-21887-2 | Product Category | ESD Suppressors |
| Standard Package | Tape & Reel, Cut Tape | Factory Pack Quantity | 4000 |
| Standard Package Name | SOT-563 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
| ESD Protection | ±15@Air Gap/±8@Contact Disc/±15@HBM | ||
Electrical
| Channels | 4 Channels | Capacitance | 1.5(Typ) pF |
| Voltage Rating | 5.5 V | Voltage - Supply | 5.5V (Max) |
| Current - Leakage | 0.001uA | Voltage - Working | 5.5V |
| Number of Channels | 4 | Number of Elements | 4 |
| Power - Peak Pulse | 100W | Voltage - Clamping | 105.5 V |
| Capacitance - Input | 1.5 | Capacitance @ Vr, F | :1.5pF |
| Diode Configuration | :DRL | Voltage - Breakdown | 11 V |
| Current Rating (Max) | Catalog | Power Line Protection | Yes |
| Bidirectional Channels | 4 | Voltage - Supply (Min) | 0.9 V to 5.5 V |
| Current - Reverse Leakage @ Vr | 0.001 uA | Current - Peak Pulse (10/1000us) | 5.5A (8/20µs) |
| Current - Leakage (IS(off)) (Max) | 1 | ||
Mechanical
| Depth | 1.2 mm | Width | 1.2mm |
| Height | 0.55mm | Length | 1.6mm |
| Weight | 0.000099 oz | Packaging | Reel |
| Common Pin | 8 | Lead Style | Flat |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | Surface Mount | Number of Pins | :6 |
| Package / Case | SOT-6 | Package Cooled | SOT |
| Locking Feature | Diode Arrays | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 1.6 mm | Package Quantity | SOT-563 |
| Size / Dimension | 1.6 x 1.2 x 0.55mm | Number of Positions | 6 |
| Shell Size - Insert | 0.55(Max) | Supplier Device Package | 6-SOT |
Product Info
| Type | Diode Arrays | Series | TPD4E001 |
| Polarity | Uni-Directional | Software | SLLS682K |
| Diode Type | :TVS | Applications | Ethernet |
| Configuration | Quad | Pattern Number | Y |
| Port Direction | Uni-Directional | Functional Diagram | fbd_slls682k.gif |
| Utilized IC / Part | View | Printed Circuit Board | 6 |
Environmental
| Air Flow - Medium | 15 | Temperature - Test | -40 to 85 |
| Operating Temperature | -40 °C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
TLV1117CDCYR
texas instruments
LDO Regulator Pos 0.8A 4-Pin(3+Tab) SOT-223 T/R Low Dropout Regulators - LDO Standard LDO Voltage IC REG LDO ADJ 0.8A SOT223 LDO Voltage Regulators Standard LDO Voltage Single Output LDO, 800mA, Fixed and Adj., Internal Current limit, Thermal Overload Protection
SN65HVD1050QDRQ1
texas instruments
CAN 1Mbps Silent 5V Automotive 8-Pin SOIC T/R CAN Interface IC Auto Cat EMC Opt CAN Trans IC CAN TRANSCEIVER 5V 8-SOIC CAN TRANSCEIVER, 1MBPS, 1DR/1RX, SOIC-8
.jpg&w=3840&q=75)
ISO7240CDW
texas instruments
OptoCoupler Buffer-OUT 4-CH 16-Pin SOIC Rail Digital Isolator Logic 4-CH 25Mbps 16-Pin SOIC Rail IC DGTL ISO 4CH CMOS 16SOIC Isolator Interface IC Quad Ch 4/0 25Mbps Dig Iso Quad Channel, 4/0, 25Mbps, Digital Isolator Texas Instruments 4通道 数字隔离器, 2500 V 交流隔离电压 Digital Isolators Quad Ch 4/0 25Mbps Dig Iso
TUSB3410IVF
texas instruments
USB To Serial Port Controller 32-Pin LQFP Tray USB Interface IC RS232/IrDA Ser-to-USB Converter USB TO SERIAL PORT CONTROLLER IC CTRLR SERIAL-TO-USB 32-LQFP TUSB3410IVF, USB Controller 12Mbit/s USB 2.0, 3.3V, 32-Pin, LQFP IC, USB TO SERIAL PORT CONTROLLER LQFP32 CONTROLLER, SERIAL-TO-USB, 32LQFP Interface; USB-UART; 3÷3.6VDC; LQFP32 RS232/IrDA Serial-to-USB Converter Texas Instruments 12MBps USB 控制器, 支持USB 2.0, 3.3 V, 32针 LQFP封装
TPS2590RSAT
texas instruments
Load Switch 16-Pin VQFN EP T/R Hot Swap & Power Distribution 3V to 20V Hi Crnt Load Switch Power Switch 0A 16-Pin VQFN EP T/R IC PWR MGR HOTSWAP 3-20V 16QFN Hot Swap Voltage Controllers 3V to 20V Hi Crnt Load Switch HOT SWAP CONTROLLER, 20V, QFN-16 3-V to 20-V High Current Load Switch Texas Instruments , 单输出 负载开关集成电路, 0 → 5.5A, 3 → 20V, 16针 QFN封装

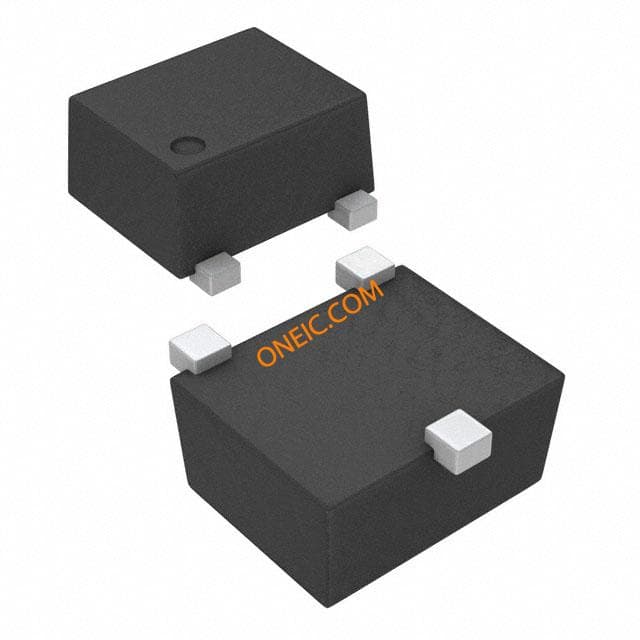

TPD2EUSB30DRTR
