TPD2E007DCKR
| Manufacturer | |
| Description | ESD Suppressor Diode Arrays ±15KV 3-Pin SC-70 T/R ESD Suppressors 2-Channel ESD TVS DIODE SC70-3 ESD Protection Array 3-Pin SC-70 T/R IC, INTERFACE, ESD, 3-SC-70, FULL REEL ESD PROTECTION ARRAY, 2CH, SC-70 IC, INTERFACE, ESD, 3-SC-70 2-Channel ESD Protection Array for AC Signal Data Interface Texas Instruments 单向 ESD 保护二极管, 0.21W, 3针 SC-70封装 ESD Suppressors / TVS Diodes 2-Channel ESD |
| Category |
Business
| Other Names | 296-25281-2 | Product Category | ESD Suppressors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-323 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | ESD Protection | ±15@Air Gap/±8@Contact Disc/±15@HBM |
Electrical
| Channels | 2 Channels | Interface | :RS232, RS422, RS485 |
| Capacitance | 15 pF | Number of Channels | 2 |
| Number of Elements | 2 | Voltage - Clamping | 14 |
| Capacitance - Input | 15 | Voltage - Breakdown | 14V |
| Current Rating (Max) | Catalog | Power Line Protection | No |
| Bidirectional Channels | 2 | Power Dissipation (Max) | 218 mW |
| Current - Reverse Leakage @ Vr | 0.05 uA | Current - Peak Pulse (10/1000us) | 4.5A (8/20µs) |
| Current - Leakage (IS(off)) (Max) | 50 | ||
Mechanical
| Width | 1.4(Max) | Weight | 0 |
| Packaging | Reel | Common Pin | 8 |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Number of Pins | :3 | Package / Case | SC-70-3 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 2.15(Max) |
| Package Quantity | SC-70 | Termination Style | SMD/SMT |
| Number of Positions | 3 | Shell Size - Insert | 1(Max) |
| Supplier Device Package | SC-70-3 | ||
Product Info
| Type | Diode Arrays | Series | TPD2E007 |
| Features | :- | Function | :ESD Protection Diode |
| Polarity | Bi-Directional | Software | SLVS796F |
| Application | :Cell Phones, PDAs, Audio Interface Connections, Consumer Electronics, Industrial Interface | Applications | General Purpose |
| Configuration | Dual | Pattern Number | Y |
| Port Direction | Uni-Directional | Functional Diagram | fbd_slvs796f.gif |
| Utilized IC / Part | View | Printed Circuit Board | 3 |
Environmental
| Air Flow - Medium | 15 | Temperature - Test | -40 to 85 |
| Operating Temperature | -40 °C | ||
Documents & Media
Similar Parts
TLV320AIC3101IRHBT
texas instruments
Audio Codec 2ADC / 2DAC 24-Bit 32-Pin VQFN EP T/R IC STER AUD CODEC 24 BIT 32-VQFN Interface - CODECs 6 In & Out Speaker & Headph Amp Low-Power Stereo Codec with 6 Inputs, 6 Outputs, Speaker/HP Amp and Enhanced Digital Effects 立体声通道 96ksps 24bit 通用 音视频编码器和解码器 IC, 串行2线、串行I2C接口, 32针 VQFN封装
TPD4E001DBVR
texas instruments
ESD Suppressor Diode Arrays ±15KV 6-Pin SOT-23 T/R ESD Suppressors Low-Cap 4Ch +/-15kV ESD Protection Array TVS DIODE 5.5VWM SOT23-6 ESD Suppressor Diode Arrays ?15KV 6-Pin SOT-23 T/R ESD PROTECTION ARRAY, 25V, SOT-23-6 Low-Capacitance 4-Channel +/-15-kV ESD Protection Array for High-Speed Data Interfaces Texas Instruments 单向 ESD 保护阵列, 100W, 100V, 6针 SOT-23封装 ESD Suppressors / TVS Diodes Low-Cap 4Ch +/-15kV ESD Protection Array
TPS2590RSAT
texas instruments
Load Switch 16-Pin VQFN EP T/R Hot Swap & Power Distribution 3V to 20V Hi Crnt Load Switch Power Switch 0A 16-Pin VQFN EP T/R IC PWR MGR HOTSWAP 3-20V 16QFN Hot Swap Voltage Controllers 3V to 20V Hi Crnt Load Switch HOT SWAP CONTROLLER, 20V, QFN-16 3-V to 20-V High Current Load Switch Texas Instruments , 单输出 负载开关集成电路, 0 → 5.5A, 3 → 20V, 16针 QFN封装
TPD2EUSB30DRTR
texas instruments
ESD Suppressor Diode Arrays ±8KV 3-Pin SOT T/R ESD Suppressors 2Ch ESD Solution TVS DIODE 5.5VWM 8VC SOT3 ESD Suppressor Diode Arrays �8KV 3-Pin SOT T/R ESD PROTECTION ARRAY, 2CH, SOT-3 IC, INTERFACE, SOT 2-Channel ESD Solution for SuperSpeed USB 3.0 Interface TVS diode SOT-23-3, TPD2EUSB30, TPD2EUSB30DRTR, Texas Instruments Texas Instruments 双向 TVS 二极管阵列, 45W, 8V, 3针 SOT封装 ESD Suppressors / TVS Diodes 2Ch ESD Solution

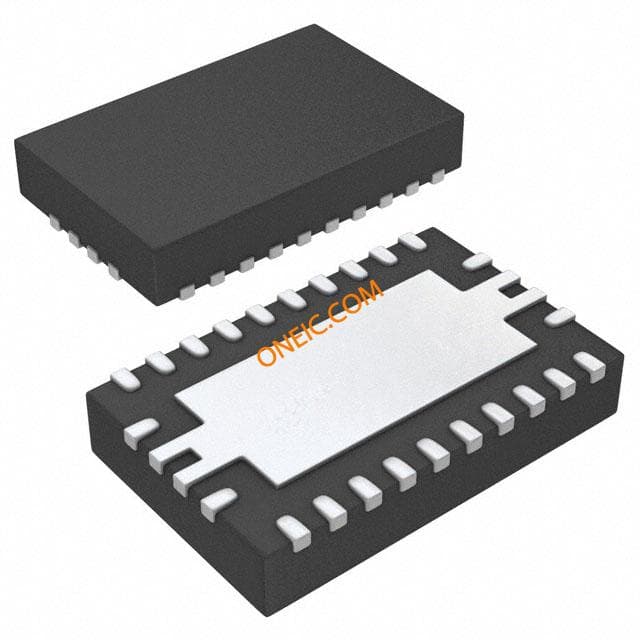

TPS40400RHLR
