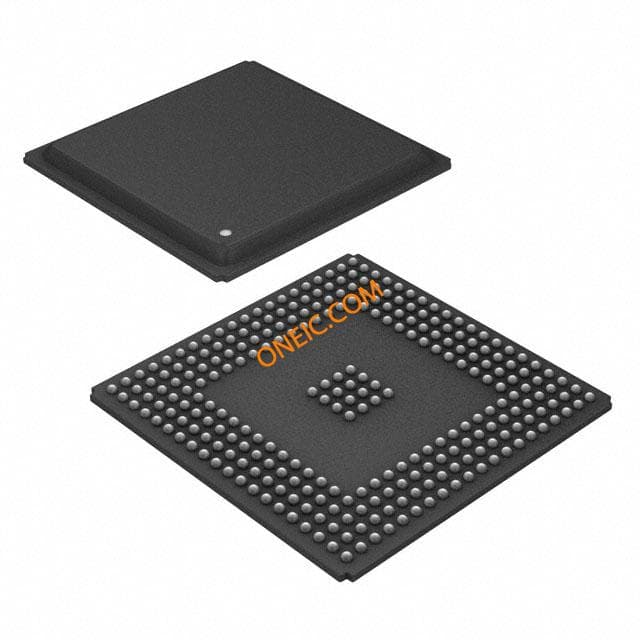

TMS320C6713BZDP300
| Manufacturer | |
| Description | DSP Floating-Point 32-Bit 300MHz 2400MIPS 272-Pin BGA IC DSP FLOATING-POINT 272-BGA TMS320C6713BZDP300, 32bit Digital Signal Processor 300MHz RAM, 272-Pin BGA Digital Signal Processors & Controllers - DSP, DSC Floating Point DSP DSP, F- POINT, C6713B, 300MHZ,272BGA Floating-Point Digital Signal Processors |
| Category |
Business
| Product | DSPs | Other Names | 296-19391 |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC | Standard Package | Trays |
| Factory Pack Quantity | 40 | Standard Package Name | BGA |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Speed | 300 MHz | Core Size | 32 b |
| Core Type | TMS320 | Frequency | :300MHz |
| Interface | Host Interface, I²C, McASP, McBSP | Clock Rate | 2400 MIPS |
| Memory Size | 192 KB | Number of I/O | 16 |
| Voltage - I/O | 3.30V | Number of Bits | :32 bit |
| Voltage - Core | 1.40V | Voltage Rating | 1.4 V, 3.3 V |
| Clock Frequency | 300 MHz | FPGA Core Cells | :2400 |
| Frequency - Max | 300MHz | Voltage - Supply | 1.4|3.3 V |
| Non-Volatile Memory | External | Program Memory Size | Not Required kB |
| Program Memory Type | ROMLess | Voltage - Supply (Min) | 1.33/3.13 V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 27mm | Height | 1.78mm |
| Length | 27mm | Weight | 0.108111 oz |
| Packaging | Tray | Lead Style | Ball |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :272 | Package / Case | 272BGA |
| Package Cooled | BGA | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | BGA | Size / Dimension | 27 x 27 x 1.78mm |
| Number of Positions | 272 | Supplier Device Package | 272-BGA (27x27) |
| Number of Cores/Bus Width | 32 Bit | ||
Product Info
| Type | Floating Point | Format | Floating Point |
| Series | TMS320C6713B | DELETED | Compliant |
| Software | SPRS294B | On-Chip RAM | 264kB |
| Architecture | Advanced VLIW | Programmable | No |
| Number Format | Floating-Point | Core Processor | TMS320 |
| Instruction Type | Floating Point | Functional Diagram | fbd_sprs294b.gif |
| Utilized IC / Part | View | Other Specifications | 2400 |
Environmental
| Operating Temperature | 0°C ~ 90°C | Operating Temperature - Junction | 90C |
