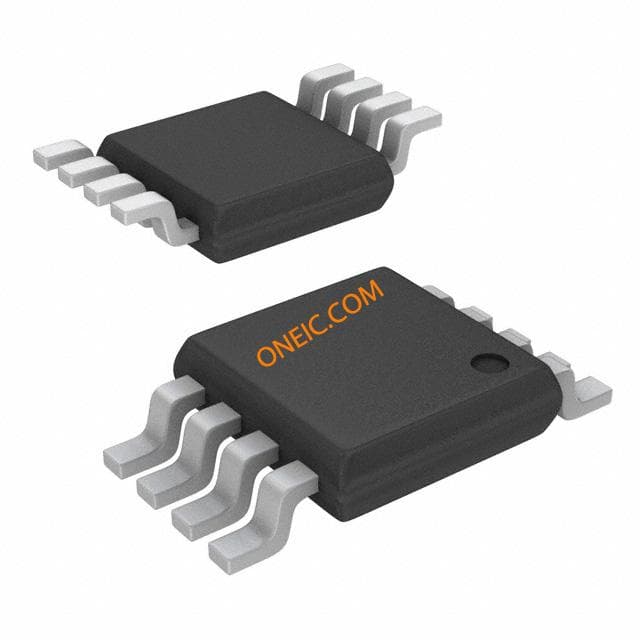

TMP75AIDGKT
| Manufacturer | |
| Description | Temp Sensor Digital Serial (2-Wire) 8-Pin VSSOP T/R IC DGTL TEMP SENSOR 2WIRE 8VSSOP IC DGTL TEMP SENSOR 2WIRE 8-MSOP Board Mount Temperature Sensors Digital w/2-Wire Ifc SENSOR, TEMP, 9/12BITS, +/-2°C, 8MSOP Temperature Sensor with I2C/SMBus Interface in Industry Standard LM75 Form Factor & Pinout Texas Instruments , 12 位 温度传感器, ±1°C, 串行 - 2线接口, 8针 MSOP封装 |
| Category |
Business
| Other Names | 296-18637-2 | Product Category | Board Mount Temperature Sensors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Accuracy | ±1 °C | Interface | Serial (2-Wire) |
| Output Fan | No | Resolution | 12(Max) Bit |
| Output Type | Digital | Sensor Type | Internal |
| Sensing Range | :-40°C to +125°C | Number of Bits | 9 bit to 12 bit |
| Voltage Rating | 2.7 | Current - Output | 3 mA |
| Voltage - Supply | 2.7 to 5.5 V | Digital I/O Lines | 2-Wire, I2C, SMBus |
| Resolution (Bits) | :12bit | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 2.7 V | ||
Mechanical
| Width | 3.1(Max) | Weight | 0.000935 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Contact Timing | :± 1°C |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8VSSOP | Package Cooled | VSSOP |
| Material Finish | :- | Length - Overall | 3.1(Max) |
| Package Quantity | VSSOP | Number of Positions | 8 |
| Shell Size - Insert | 0.95(Max) | Supplier Device Package | 8-VSSOP |
Product Info
| Series | TMP75 | DELETED | Compliant |
| Features | Configurable Resolution Programmable Alert Fault Queue One-Shot Conversion Shutdown | Function | Temp Sensor |
| Shutdown | Yes | Software | SBOS288K |
| Topology | ADC (Sigma Delta), Register Bank | Output Alarm | Yes |
| Configuration | Local | Functional Diagram | fbd_sbos288k.gif |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 125 | Sensing Temperature | -40°C ~ 125°C |
| Operating Temperature | -40°C ~ 125°C | Switching Temperature | Programmable |
| Sensing Temperature - Local | :-40°C | Temperature Coefficient (Typ) | 1.5 |
| Operating Temperature - Junction | -55C | ||
