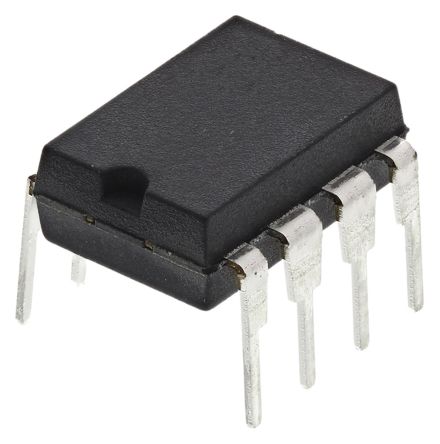

SN75472P
| Manufacturer | |
| Description | Peripheral Drivers 8-Pin PDIP Tube Pref DRVR Dual 5V 1000mW 8-Pin PDIP Tube IC DUAL PERIPHERAL DRIVER 8-DIP Peripheral Drivers & Components - PCIs Dual Peripheral PERIPHERAL DRIVER, DUAL, 0.3A, DIP-8 Dual High-Voltage, High-Current Peripheral Drivers Driver IC DIL-8, SN75472, SN75472P, Texas Instruments 双 设备驱动器, 4.75 → 5.25 V, 8针 PDIP封装 Buffers & Line Drivers Dual Peripheral |
| Category |
Business
| Product Category | Peripheral Drivers & Components - PCIs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Delay Time | 45 | Input Type | TTL |
| Power - Rated | 1 W | Voltage Rating | 5.5 V |
| Current - Output | 76 mA | Current - Supply | 0.076 |
| Driver Circuitry | NAND | Voltage - Supply | 4.75 V ~ 5.25 V |
| Number of Outputs | :2 | Switching Voltage | 55 |
| Voltage - Output 4 | 250 | Current Rating (Max) | Catalog |
| Current - Peak Output | 500 | Power Dissipation (Max) | 1000 |
| Delay Time - Propagation | 65 ns | Current - Off State (Max) | 100 |
| Current - Output / Channel | 400 | Propagation Delay tpLH / tpHL (Max) | 65 |
Mechanical
| Width | 6.6(Max) | Weight | 0.015535 oz |
| Packaging | Tube | Case Color | :DIP |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 10.16(Max) | Package Quantity | PDIP |
| Number of Positions | 8 | Shell Size - Insert | 5.08(Max) - 0.51(Min) |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Type | Driver | Series | SN75472 |
| Software | SLRS024 | Number of Drivers | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
| Number of Drivers/Receivers | 2/0 | ||
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
| Operating Temperature - Junction | 70C | ||
