SN74LVC1G126DBVT
| Manufacturer | |
| Description | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 Buffers & Line Drivers SNGL Bus Buffer Gate IC, BUFFER GATE, SMD, SOT-23-5 Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G126, SN74LVC1G126DBVT, Texas Instruments |
| Category |
Business
| Other Names | 296-32293-1 | Product Category | Buffers & Line Drivers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 1.8 2.5 3.3 5 | Input Type | CMOS/TTL |
| Logic Type | LVC | Output Type | 3-State |
| Input Signal | Single-Ended | Number of I/O | 5 V |
| Number of Bits | 1 | Voltage Rating | 1.65 |
| Number of Inputs | 1 | Voltage - Supply | 1.65 V ~ 5.5 V |
| Number of Outputs | 1 | Number of Channels | 1 |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 150 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 1.65 V | Propagation Delay (Max) | 9.8 |
| Current - Quiescent (Iq) | 10 uA | Delay Time - Propagation | 4.5 ns at 3.3 V, 4 ns at 5 V |
| Current - Quiescent (Max) | 0.01 | Current - Output High, Low | 32mA, 32mA |
| Number of Bits per Element | 1 | Current - Output Source/Sink | 32/-32 |
| Max Propagation Delay @ V, Max CL | 4.5@3.3V|4@5V ns | Propagation Delay tpLH / tpHL (Max) | 8 5.5 4.5 4 |
Mechanical
| Width | 1.75(Max) | Weight | 0.000557 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 5SOT-23 | Package Cooled | SOT-23 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.05(Max) |
| Package Quantity | SOT-23 | Number of Positions | 5 |
| Shell Size - Insert | 1.3(Max) | Supplier Device Package | SOT-23-5 |
Product Info
| Series | SN74LVC1G126 | Process | CMOS |
| Function | Buffer/Line Driver | Polarity | Non-Inverting |
| Software | SCES224R | Base Unit | :741G126 |
| Technology | CMOS | Functional Diagram | fbd_sces224r.gif |
| RF Family/Standard | LVC | Utilized IC / Part | View |
| Printed Circuit Board | 5 | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
SN74LVC1G08DCKR
texas instruments
AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R SINGLE POSITIVE AND GATE SC-70 Logic Gates Single 2-Input Pos IC, AND GATE, SINGLE 2-INPUT, SMD IC, AND GATE, SC-70-5, FULL REEL Single 2-Input Positive-AND Gate Logic IC SC-70-5, SN74LVC1G08, SN74LVC1G08DCKR, Texas Instruments Texas Instruments 逻辑门, CMOS输出, 32mA, 1.65 至 5.5 V, 5针 SC-70封装
SN74LVC1G125DBVR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 SN74LVC1G125DBVR, Bus Buffer, LVC, 4 @ 5 Vns, 32mA 1.65 to 5.5V 5-Pin SOT-23 IC, BUFFER GATE, BUS, SMD, SOT-23-5 IC, BUFFER, NON-INVERT, SOT-23-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G125, SN74LVC1G125DBVR, Texas Instruments LVC 总线缓冲器, 4 ns @ 5 V, 32mA, 1.65 → 5.5 V, 5针 SOT-23封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
SN74LVC2G125DCUR
texas instruments
Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin VSSOP T/R Buffers & Line Drivers Tri-State Dual Bus IC BUS BUFF TRI-ST DL US8 IC, BUFFER GATE, DUAL 3STATE, SMD Dual Bus Buffer Gate with 3-State Outputs LVC 总线缓冲器, 4.2 ns@ 5 V, 1.65 → 5.5 V, 8针 US封装
SN74LVC1G07DCKR
texas instruments
Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SC-70 T/R IC BUFF/DVR NON-INVERT SC705 Buffers & Line Drivers Single w/ OD Single Buffer/Driver With Open-Drain Output Logic IC SC-70-5, SN74LVC1G07, SN74LVC1G07DCKR, Texas Instruments
SN74LVC126ADGVR
texas instruments

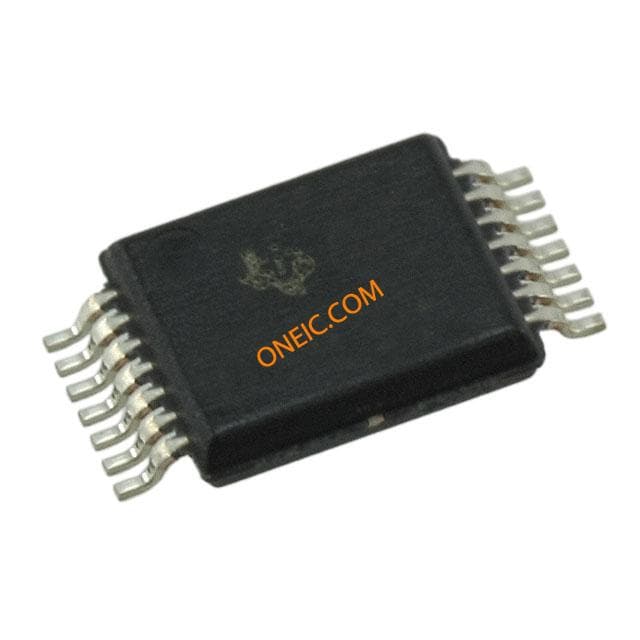

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TVSOP T/R IC BUS BUFF TRI-ST QD 14TVSOP Buffers & Line Drivers Tri-State Quad Bus IC, QUAD BUS BUFFER GATE, SMD Quadruple Bus Buffer Gate With 3-State Outputs
