SN74LV00APW
| Manufacturer | |
| Description | NAND Gate 4-Element 2-IN CMOS 14-Pin TSSOP Tube IC QUAD 2IN POS NAND GATE14TSSOP Logic Gates Quadruple 2-Input Positive-NAND gates IC, QUAD POSITIVE-NAND GATE Quadruple 2-Input Positive-NAND Gates |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | NAND | Product Category | Logic Gates |
| Standard Package | Rail / Tube | Factory Pack Quantity | 90 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 2.5 3.3 5 | Input Type | TTL |
| Logic Type | LV | Output Type | TTL |
| Number of Bits | 4 | Voltage Rating | 2 V |
| Current - Output | :12mA | Number of Inputs | 2-IN |
| Voltage - Supply | 2 V ~ 5.5 V | Number of Outputs | 1 |
| Number of Elements | 4 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 70 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 5.5 V | Current - Quiescent (Iq) | 20 uA |
| Delay Time - Propagation | 16.6 ns | Logic Voltage - VIL, VIH | 0.5V |
| Current - Quiescent (Max) | 20µA | Current - Output High, Low | 12mA, 12mA |
| Current - Output Source/Sink | 50/-50 | Max Propagation Delay @ V, Max CL | 16.6@2.5V|11.4@3.3V|7.5@5V ns |
| Propagation Delay tpLH / tpHL (Max) | 20 13 8.5 | ||
Mechanical
| Width | 4.5(Max) | Weight | 0.002018 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :14 | Package / Case | 14TSSOP |
| Package Cooled | TSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5.1(Max) | Package Quantity | TSSOP |
| Number of Positions | 14 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 14-TSSOP | ||
Product Info
| Series | SN74LV00A | Process | CMOS |
| Function | NAND | Software | SCLS389K |
| Technology | CMOS | Number of Gates | 4 |
| Number of Lines | 2 / 1 | Number of Circuits | 4 |
| RF Family/Standard | LV-A | Utilized IC / Part | View |
| Printed Circuit Board | 14 | Number of Inputs and Type | 0 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
SN74LV00AD
texas instruments
NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube IC QUAD 2-IN NAND GATE 14-SOIC Logic Gates Quad 2-In Pos NAND IC, NAND GATE, QUAD 2-INPUT, SMD Quadruple 2-Input Positive-NAND Gates Texas Instruments 逻辑门, 12mA, 2 → 5.5 V, 14针 SOIC封装
$0.6120
Details
RE931-01
Roth Elektronik

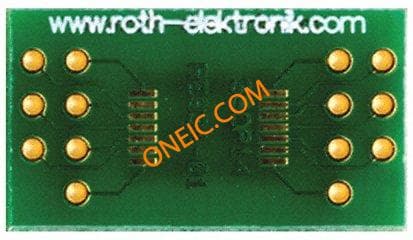

RE931-01, Surface Mount (SMT) Board SSOP Epoxy Glass Double-Sided 23.5 x 13.5 x 1.5mm FR4 ADAPTOR, SMD, SSOP-14, 0.65MM SMDmulti-adaptorSSOP-14pin,RE931-01 Board: universal; multiadapter; W:13mm; L:23.5mm; SSOP14 Laboratory card 14P 0.65 mm FR4 Epoxide + chem. Ni/Au, RE931-01, Roth Elektronik
