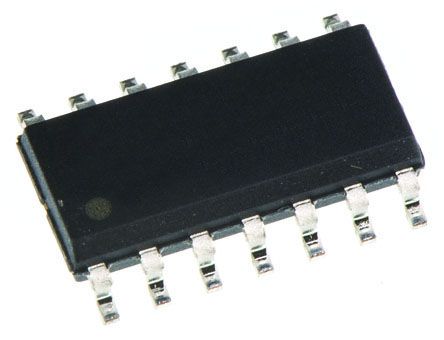

SN74LV00AD
| Manufacturer | |
| Description | NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube IC QUAD 2-IN NAND GATE 14-SOIC Logic Gates Quad 2-In Pos NAND IC, NAND GATE, QUAD 2-INPUT, SMD Quadruple 2-Input Positive-NAND Gates Texas Instruments 逻辑门, 12mA, 2 → 5.5 V, 14针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | NAND | Product Category | Logic Gates |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 2.5 3.3 5 | Input Type | TTL |
| Logic Type | LV | Output Type | TTL |
| Number of Bits | 4 | Voltage Rating | 2 V |
| Current - Output | :12mA | Number of Inputs | 2-IN |
| Voltage - Supply | 2 V ~ 5.5 V | Number of Outputs | 1 |
| Number of Elements | 4 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 70 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 5.5 V | Current - Quiescent (Iq) | 20 uA |
| Delay Time - Propagation | 16.6 ns | Logic Voltage - VIL, VIH | 0.5V |
| Current - Quiescent (Max) | 20µA | Current - Output High, Low | 12mA, 12mA |
| Current - Output Source/Sink | 50/-50 | Max Propagation Delay @ V, Max CL | 16.6@2.5V|11.4@3.3V|7.5@5V ns |
| Propagation Delay tpLH / tpHL (Max) | 20 13 8.5 | ||
Mechanical
| Width | 4(Max) | Weight | 0.004564 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :14 |
| Package / Case | 14SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 8.75(Max) |
| Package Quantity | SOIC | Number of Positions | 14 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 14-SOIC |
Product Info
| Series | SN74LV00A | Process | CMOS |
| Function | NAND | Software | SCLS389K |
| Base Unit | :74 | Technology | CMOS |
| Number of Gates | 4 | Number of Lines | 2 / 1 |
| Number of Circuits | 4 | RF Family/Standard | LV-A |
| Utilized IC / Part | View | Printed Circuit Board | 14 |
| Number of Inputs and Type | 0 | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 85 °C |
