SN65HVD08D
| Manufacturer | |
| Description | Single Transmitter/Receiver RS-485 8-Pin SOIC Tube IC TXRX RS485 3/5V 8-SOIC RS-485 Interface IC RS485 Wide Band TRANSCEIVER RS-485, 65HVD08, SOIC8 3.3/5-V RS-485 Transceiver Logic IC SOIC-8, SN65HVD08, SN65HVD08D, Texas Instruments Texas Instruments 10MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V、5 V, 8针 SOIC封装 |
| Category |
Business
| Other Names | 296-14010-5 | Product Category | RS-485 Interface IC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :65HVD08 | Rad Hardened | No |
| Fault Protection | -9 to 14 | ||
Electrical
| Data Rate | 10 Mbps | Interface | EIA/TIA-485|ISO-8482-E|RS-485 |
| Baud Rates | 10 | Drive Type | 3-State |
| Fail Short | Idle Open Short | Input Signal | Differential |
| Signal Types | Differential | Power - Input | Single |
| Isolated Power | No | Data Rate (Max) | Multipoint |
| Current - Output | 16 mA | Current - Supply | 16 |
| Number of Inputs | 1 | Voltage - Supply | 3.3|5 V |
| Number of Outputs | 1 | Power Supply Type | Single |
| Receiver Hysteresis | 35mV | Current - Input Bias | 16 |
| Current Rating (Max) | Catalog | Voltage - Supply Span (Typ) | Not Required V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 4(Max) | Weight | 0.002561 oz |
| Packaging | Tube | Case Color | :SOIC |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Transceiver | Duplex | Half |
| Series | SN65HVD08 | DELETED | Compliant |
| Function | Line Transceiver | Protocol | RS485 |
| Shutdown | No | Software | SLLS550D |
| Base Unit | :65 | Communications | RS-485 |
| Number of Nodes | 256 | Number of Drivers | 1 |
| Functional Diagram | fbd_slls550d.gif | Utilized IC / Part | View |
| Number of Receivers | 1 | Printed Circuit Board | 8 |
| Number of Transmitters | 1 | Number of Drivers/Receivers | 1/1 |
| Number of Transmitters/Receivers | 1 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
TPS54331D
texas instruments
Conv DC-DC Single Step Down 3.5V to 28V 8-Pin SOIC Tube IC REG BUCK ADJ 3A 8SOIC Voltage Regulators - Switching Regulators 3A 28V In Step Down SWIFT DC/DC Cnvrtr IC, SYNC STEP-DOWN DC/DC CONVERTER, 570KHZ, SOIC-8 BUCK, 3.5-28V, 3A, 570KHZ, 8SOIC 3.5V to 28V Input, 3A, 570kHz Step-Down Converter with Eco-mode Texas Instruments 降压 开关稳压器, 3A, 可调输出, 最低 0.8 V, 684 kHz, 8针 SOIC封装 Switching Voltage Regulators 3A 28V In Step Down SWIFT DC/DC Cnvrtr
MAX232ID
texas instruments
Dual Transmitter/Receiver RS-232 16-Pin SOIC Tube IC DUAL EIA-232 DRVR/RCVR 16SOIC MAX232ID, Line Transceiver, EIA/TIA-232-F, RS-232, V.28 2-TX 2-RX 2-TRX, 5V, 16-Pin SOIC DRIVER / RECEIVER, DUAL, RS232, 16SOIC Dual EIA-232 Driver/Receiver Interface IC RS232 SOIC-16, MAX232, MAX232ID, Texas Instruments Texas Instruments 120kbps 线路收发器, RS-232接口, 2-TX 2-RX, 5 V, 16针 SOIC封装 RS-232 Interface IC Dual EIA-232 Driver
PTN78020HAH
texas instruments

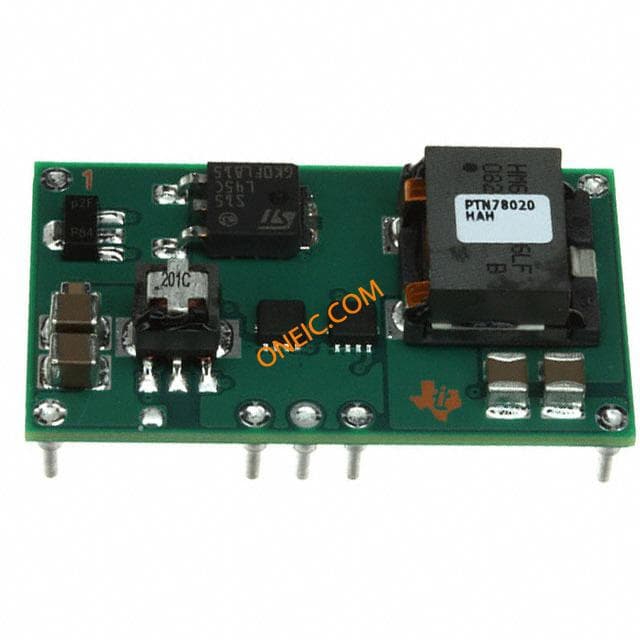

Module DC-DC 1-OUT 11.85V to 22V 6A 90W 7-Pin DIP Module REG SW 11.85-22V 6A HORZ T/H PTN78020HAH, DC-DC Power Supply Module 36V Input,, 7-Pin, DIP Module DC/DC Converters 6A Wide-In Wide Output Adj Module DC-DC CONV, LINEAR REG, 1 O/P, 90W, 6A DC-DC CONV, NON-ISO POLA, ADJ O/P, 6A 6 A, Wide Input Non-Isolated, Wide Output Adjust Module 直流-直流电源模块, 6A, 600 kHz, 7针 DIP 模块封装
