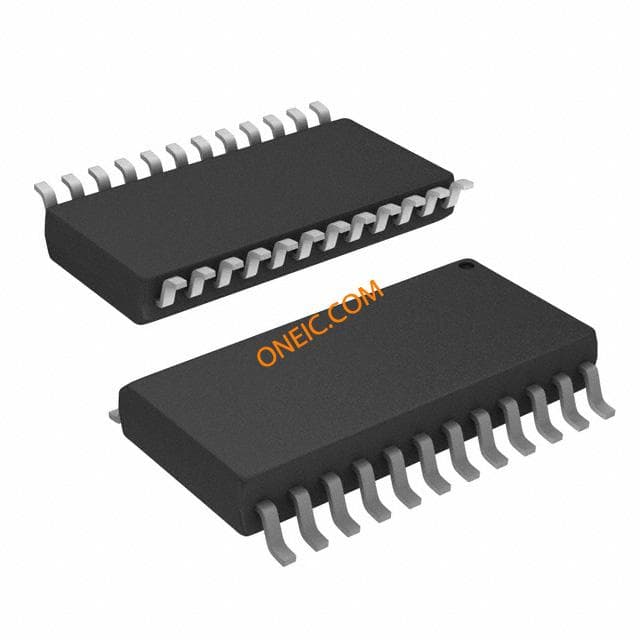

PCA9539DWR
| Manufacturer | |
| Description | PCA9539 DB,DBQ,DGV,DW,PW,RHL,RGE I2C/SMBus GPIO Expander 5.5V 24-Pin SOIC T/R IC I/O EXPANDER I2C 16B 24SOIC Interface - I/O Expanders 16-Bit I2C & SMBus Lo-Pwr I/O Expander PCA9539DWR IC, I/O EXPANDER, 16BIT, 24SOIC Remote 16-Bit I2C And SMBus, Low-Power I/O Expander With Interrupt Output, Reset & Config. Registers |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-20955-2 | Product Category | Interface - I/O Expanders |
| Standard Package | 2,000 | Factory Pack Quantity | 2000 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | ESD Protection | 2@HBM/1@CDM |
Electrical
| Reset | Yes | Frequency | :400kHz |
| Interface | Fast Mode | Logic Type | PCA9539 |
| Output Type | Open Drain | Number of I/O | 16 |
| Voltage Rating | 2.3 | Clock Frequency | 400kHz |
| Data Rate (Max) | 400 | Frequency - Max | 400 kHz |
| Current - Output | 25 mA | Interrupt Output | Yes |
| Voltage - Supply | 2.3 V ~ 5.5 V | Sampling Frequency | 0.4 |
| Current Rating (Max) | Catalog | Voltage - Supply (Min) | 5.5 |
| Current - Quiescent (Max) | 1 | Current - Output Source/Sink | 10mA, 25mA |
| Current - Average Rectified (Io) | 100 uA | ||
Mechanical
| Weight | 0.022025 oz | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :24 |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 15.6(Max) | Package Quantity | SOIC |
| Number of Positions | 24 | Shell Size - Insert | 2.35(Max) |
| Supplier Device Package | 24-SOIC | ||
Product Info
| Series | PCA9539 | Features | POR |
| Software | SCPS130G | Product Type | I/O Expanders |
| Utilized IC / Part | View | Number of Addresses | 4 |
| Other Specifications | :16bit | Printed Circuit Board | 24 |
| Number of Inputs and Type | 16 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
