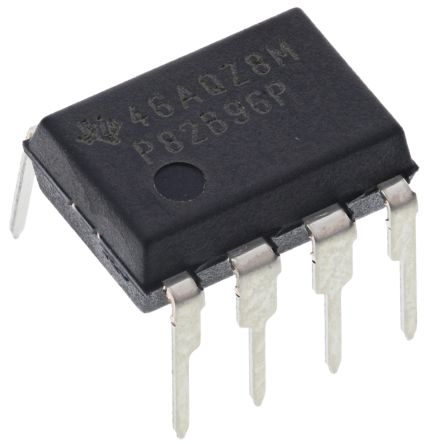

P82B96P
| Manufacturer | |
| Description | Bus Buffer 8-Pin PDIP Tube 12/10/8-BIT, 1 MSPS, 16/12/8/4-CHANNEL, SINGLE-ENDED, MICROPOWER, SERIAL INTERFACE ADCS IC DUAL BI-DIR BUS BUFFER 8-DIP Buffers & Line Drivers Dual Bidirectional Bus Buffer BUFFER BIDIRECTIONAL, DUAL, DIP-8 IC, BIDIRECTIONAL BUS BUFFER, DIP-8 Dual Bidirectional Bus Buffer P82B96 双总线缓冲器, 270ns, 3mA, 2 → 15 V, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-20943-5 | Product Category | Buffers & Line Drivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Input | I²C Logic | Delay Time | 5.0ns |
| Logic Type | Bidirectional Bus Buffers | Frequency - Max | 400 |
| Current - Output | 4mA | Voltage - Supply | 2.5|3.3|5|9|12 V |
| Number of Outputs | 2 | Number of Elements | 2 |
| Sampling Frequency | 0.4 | Capacitance - Input | 4pF |
| Delay Time - Propagation | 5 ns | ||
Mechanical
| Width | 2 | Weight | 0.015535 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 10.16(Max) | Package Quantity | PDIP |
| Number of Positions | 8 | Shell Size - Insert | 5.08(Max) - 0.51(Min) |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Type | Buffer | Series | P82B96 |
| DELETED | Compliant | Features | Open-Drain I/O Type |
| Software | SCPS144C | Functional Diagram | fbd_scps144c.gif |
| RF Family/Standard | P82B96 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
