OPA541AP
| Manufacturer | |
| Description | OP Amp Single GP ±35V/70V 11-Pin(11+Tab) TO-220 Tube IC OPAMP POWER 1.6MHZ TO220-11 OPA541AP, Operational Amplifier 1.6MHz, 24, 28V, 11-Pin TO-220 Operational Amplifiers - Op Amps Hi-Power Monolithic Op Amp OP Amp Single GP �35V/70V 11-Pin(11+Tab) TO-220 Tube OP AMP, HIGH POWER, TO-220-11, 541 Operational amplifier; 1.6MHz; 10÷35VDC; Channels:1; TO220 High Power Monolithic Operational Amplifier Operational Amplifier Single 1.6 MHz PP-11, OPA541, OPA541AP, Texas Instruments Texas Instruments 运算放大器, 1.6MHz, 24 V 28 V, 11针 TO-220 |
| Category |
Business
| Product Category | Operational Amplifiers - Op Amps | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | TO-220 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | :541 | Rad Hardened | No |
Electrical
| Gain | 97 dB | Slew Rate | 10@±35V V/us |
| Vn at 1kHz | 35 | Output Type | No |
| Offset Drift | 2 | Power - Input | Single/Dual |
| Rise Time (Typ) | 6V/μs | Transistor Type | :High Voltage |
| CMRR, PSRR (Typ) | 95 dB | Current - Output | 20mA |
| Voltage - Supply | 20 V | Power Supply Type | Single|Dual |
| Number of Channels | 1 | Number of Elements | 1 |
| Current - Input Bias | 4pA | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | :1 | Voltage - Input (Min) | 2mV |
| Gain Bandwidth Product | 1.6 MHz | Rail-to-Rail Operation | No |
| Current - Quiescent (Iq) | 25 | Current - Input Bias (Max) | 0.00005@±35V uA |
| Current - Output / Channel | 10A | Input Offset Current (Max) | 0.00003@±35V |
| Voltage - Supply (Vcc/Vdd) | 70 | Vos (Offset Voltage @ 25C) | 10 |
| Voltage - Supply Span (Typ) | �30 V | Frequency Bands (Low / High) | 1.6MHz |
| Voltage - Input Offset (Max) | 10@±35V mV | Voltage - Output Difference (Typ) @ Distance | 97 dB |
Mechanical
| Width | 10.7 | Weight | 0.002 |
| Bandwidth | :1.6MHz | Packaging | Tube |
| Tab Width | Tab | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :11 |
| Package / Case | 11TO-220 | Package Cooled | TO-220 |
| Material Finish | :- | Length - Overall | 20.02 |
| Package Quantity | TO-220 | Number of Positions | 11 |
| Shell Size - Insert | 4.5 | Supplier Device Package | TO-220-11 |
Product Info
| Spg | 25 | Type | General Purpose Amplifier |
| Series | OPA541 | Shutdown | No |
| Software | SBOS153A | Base Unit | :541 |
| Technology | BiFET | Manufacturer | High Output Current Amplifier |
| Amplifier Type | Power | Number of Units | 1 |
| Number of Circuits | 1 | Utilized IC / Part | View |
| Printed Circuit Board | 11 | ||
Environmental
| Temperature - Test | -25 to 85 | Operating Temperature | -25 to 85 °C |
Documents & Media
Similar Parts
OPA549T
texas instruments
OP Amp Single GP ±30V/60V 11-Pin(11+Tab) TO-220 Tube IC OPAMP POWER 900KHZ TO220-11 Operational Amplifiers - Op Amps Hi-Vltg Hi-Current Exc Output Swing OP Amp Single GP �30V/60V 11-Pin(11+Tab) TO-220 Tube OP AMP, 0.9MHZ, 9V/US, 1000UV, TO220-11 IC, OP-AMP, 900KHZ, 9V/ us, TO-220-11 Operational amplifier; 900kHz; 8÷60VDC; Channels:1; TO220 High-Voltage, High-Current Op Amp, Excellent Output Swing Operational Amplifier Single 900 kHz PP-11, OPA549, OPA549T, Texas Instruments
_4040208%5EC.jpg&w=3840&q=75)

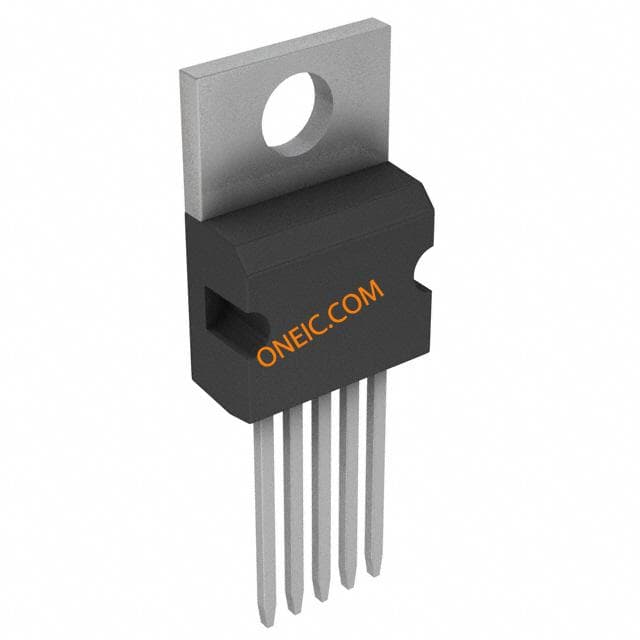

OPA544T
texas instruments
OP Amp Single GP ±35V 5-Pin(5+Tab) TO-220 Tube IC OPAMP POWER 1.4MHZ TO220-5 OPA544T, Operational Amplifier 1.4MHz, 5-Pin TO-220 Operational Amplifiers - Op Amps Hi-Vltg Hi-Current Op Amp OP Amp Single GP �35V 5-Pin(5+Tab) TO-220 Tube OP AMP, HIGH VOLT 2A, TO-220-5, 544 Operational amplifier; TO220-5 High-Voltage, High-Current Operational Amplifier Operational Amplifier Single 1.4 MHz TO-220-5, OPA544, OPA544T, Texas Instruments Texas Instruments 运算放大器, 1.4MHz, 5针 TO-220

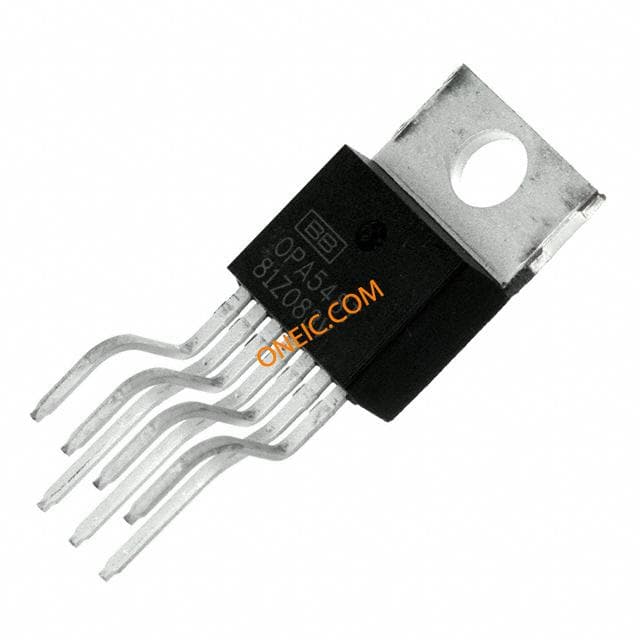

OPA548TG3
