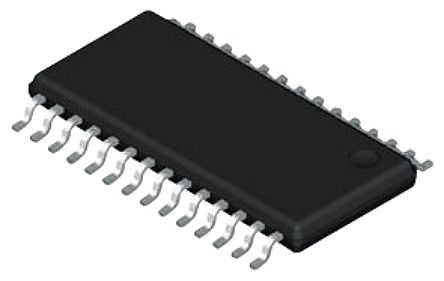

MSP430F2122IPW
| Manufacturer | |
| Description | MCU 16-bit MSP430 RISC 4KB Flash 2.5V/3.3V 28-Pin TSSOP 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr Microcontroller MCU 16-bit MSP430 MSP430 RISC 4KB Flash 2.5V/3.3V 28-Pin TSSOP IC MCU 16BIT 4KB FLASH 28TSSOP MSP430F2122IPW, 16 bit Microcontroller MSP430 16MHz 4kb Flash, 512B RAM, I2C LIN SPI 28-Pin TSSOP IC, MCU, 16BIT, 4K FLASH, 28TSSOP 16-bit Ultra-Low-Power Microcontroller, 4kB Flash, 512B RAM, 10 bit ADC, 1 USCI Texas Instruments MSP430 系列 16 bit MSP430 MCU, 16MHz, 256 B，4 kB ROM 闪存, 512 B RAM, 28针 TSSOP封装 |
| Category |
Business
| Tradename | MSP430 | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
| Approval Agency | No | Security Features | N/A |
Electrical
| GPIO | 24 | Speed | 16 MHz |
| Timer | 5 x 16 bit | Memory | 0 |
| RAM Size | 512 byte | Core Size | 16-Bit |
| Core Type | MSP430 | Frequency | 16 MHz |
| Interface | I2C/SCI/SPI/UART | Clock Rate | 16 MHz |
| Comparator | Yes | Delay Time | 1 |
| Resolution | 16bit | Memory Size | 512 B |
| Number of I/O | 24 | Counter/Timers | 2 |
| Number of Bits | 10 | Voltage Rating | 1.8 → 3.6 V |
| Watchdog Timer | 1 | Clock Frequency | :16MHz |
| Data Converters | A/D 8x10b | Frequency - Max | 16MHz |
| Number of DAC's | 2 | Oscillator Type | Internal |
| Serial Protocol | 1 | Voltage - Supply | 2.5|3.3 V |
| Resolution (Bits) | 10bit | Number of Channels | 8 |
| Analog Input:Output | ADC10 - 8ch | Non-Volatile Memory | 4 |
| Program Memory Size | 4 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 8 | Voltage - Input (Min) | 3.6 |
| Voltage - Supply (Min) | 1.8 V | Frequency (Center/Band) | 16bit |
| Power - Average Forward | 0.7 | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V | ||
Mechanical
| Width | 4.5mm | Height | 1.05mm |
| Length | 9.8mm | Weight | 0.004145 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :28 |
| Package / Case | 28TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 9.8(Max) |
| Package Quantity | TSSOP | Size / Dimension | 9.8 x 4.5 x 1.05mm |
| Number of Positions | 28 | Shell Size - Insert | 1.05(Max) |
| Number of Cores/Bus Width | 16 Bit | Pulse Width Distortion (Max) | 2 x 16 bit, 3 x 16 bit |
Product Info
| SPI | 1 | USB | 0 |
| Series | 2 Series | DELETED | Compliant |
| Features | Watchdog Temp Sensor Brown Out Reset | Protocol | 1 |
| Software | SLAS578J | Bootloader | UART |
| Flash Size | :4KB | Multiplier | N/A |
| On-Chip RAM | 8-chx10-bit | Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Special I/O | N/A | Architecture | RISC |
| Connectivity | I²C, IrDA, LIN, SCI, SPI, UART/USART | Programmable | Yes |
| Number of Timers | 2 | Controller Series | :MSP430F2xx |
| Functional Diagram | fbd_slas578j.gif | RF Family/Standard | MSP430 |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Printed Circuit Board | 28 | Number of A/D Converters | :8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
