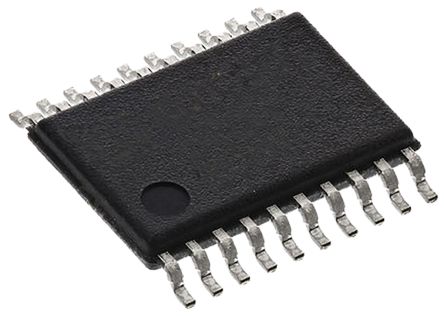

BQ76925PW

Manufacturer	Texas Instruments Incorporated
Description	Battery Protection Li-Ion 20-Pin TSSOP T/R IC BATT MGMT LI-ION AFE 20TSSOP Battery Management AFE FOR 3-6 SERIES LITHIUM-ION CELL BATT MGMT, LI-ION, AFE, 20TSSOP Analog Front End for 3 to 6 Series Lithium-Ion Cells Texas Instruments 锂离子、锂聚合物电池电量计 IC, 最高 +26.4V, 20针 TSSOP封装
Category	Integrated CircuitsGeneral Purpose ICsBattery Management ICs

对参数有疑问？问 AI 助手

Business

Other Names	296-29506-5	Product Category	Battery Management
Standard Package	Bulk	Factory Pack Quantity	70
Standard Package Name	TSSOP

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85423990
Part Status	ACTIVE	Rad Hardened	No

Electrical

Voltage Rating	3.6 V	Current - Output	10 uA
Current - Supply	48 uA	Voltage - Supply	4.2 V ~ 26.4 V
Voltage - Supply (Min)	4.2 V

Mechanical

Width	4.5(Max)	Weight	0.00027
Packaging	Tape and Reel	Lead Style	Gull-wing
Mounting Type	Surface Mount	Mounting Style	SMD/SMT
Package / Case	20TSSOP	Package Cooled	TSSOP
Material Finish	:-	Length - Overall	6.6(Max)
Package Quantity	TSSOP	Number of Positions	20
Shell Size - Insert	1.05(Max)	Supplier Device Package	20-TSSOP

Product Info

Type	Battery Protection	Series	BQ76925
DELETED	Compliant	Function	Fuel, Gas Gauge/Monitor, Overvoltage Protection
Software	SLUSAM9B	Base Unit	:76925
Product Type	Battery Protection	Battery Chemistry	Li-Ion
Utilized IC / Part	View	Printed Circuit Board	20

Environmental

Temperature - Test	-25 to 85	Temperature Display	Yes
Operating Temperature	-25 to 85 °C

Documents & Media

PDF Document

Copper Bond Wire Revision A 04/Dec/2013

PDF Document

bq76925.pdf
