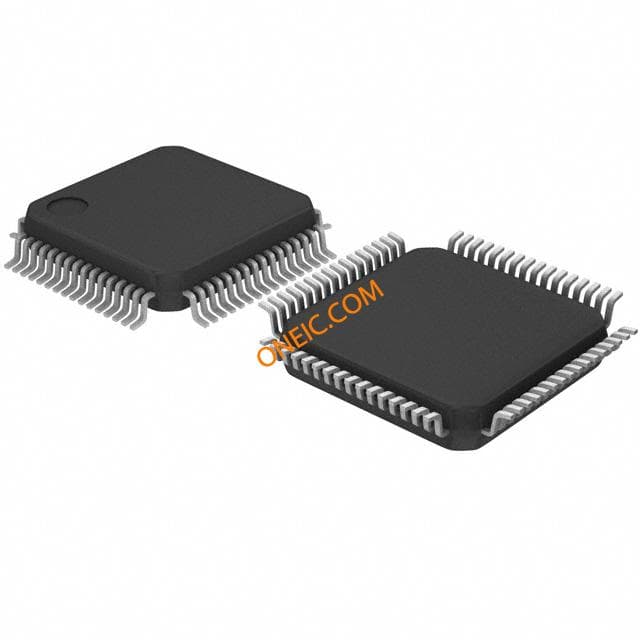

MSP430F135IPM
| Manufacturer | |
| Description | MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 64-Pin LQFP Tray MCU 16-bit MSP430 MSP430 RISC 16KB Flash 2.5V/3.3V 64-Pin LQFP Tray IC MCU 16BIT 16KB FLASH 64LQFP MSP430F135IPM, 16 bit Microcontroller MSP430 8MHz 16kb Flash, 512B RAM, SPI 64-Pin LQFP 16-bit Microcontrollers - MCU 16kB Flash 512B RAM 12bit ADC + 1 USART IC, FLASH LOW POWER MCU, QFP64, 430 Microcontroller; Flash:16kB; RAM:512B; 8MHz; QFP64 16-Bit Ultra-Low-Power Microcontroller, 16kB Flash, 512B RAM, 12 bit ADC, USART Microcontroller 16 Bit QFP-64, MSP430 F135, MSP430F135IPM, Texas Instruments Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 16 kB，256 B ROM 闪存, 512 B RAM, 64针 LQFP封装 |
| Category |
Business
| Tradename | MSP430 | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | Trays | Factory Pack Quantity | 160 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :430 | Rad Hardened | No |
| Approval Agency | No | Security Features | N/A |
Electrical
| GPIO | 48 | Speed | 8 MHz |
| Timer | 10 x 16 bit | Memory | 0 |
| RAM Size | 512 byte | Core Size | 16-Bit |
| Core Type | MSP430 | Frequency | 8 MHz |
| Interface | SPI/UART/USART | Clock Rate | 8 MHz |
| Comparator | Yes | Delay Time | 6 |
| Resolution | 16bit | Memory Size | 512 B |
| Memory Type | :Flash | Number of I/O | 48 |
| Counter/Timers | 2 | Number of Bits | 12 |
| Voltage Rating | 1.8 → 3.6 V | Watchdog Timer | 1 |
| Clock Frequency | :8MHz | Data Converters | A/D 8x12b |
| FPGA Core Cells | :8 | Frequency - Max | 8MHz |
| Number of DAC's | 2 | Oscillator Type | Internal |
| Serial Protocol | 1 | Voltage - Supply | 2.5|3.3 V |
| Resolution (Bits) | 12bit | Serial Interfaces | 1 |
| Number of Channels | 0 | Analog Input:Output | ADC12 - 8ch |
| Non-Volatile Memory | 16 | Program Memory Size | 16 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 8 |
| Voltage - Input (Min) | 1.8 | Voltage - Supply (Min) | 1.8 V |
| Frequency (Center/Band) | 16bit | Power - Average Forward | 1.6 |
| Number of Bits per Element | 12 bit | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Mechanical
| Width | 10.2mm | Height | 1.45mm |
| Length | 10.2mm | Weight | 0.012088 oz |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :64 | Package / Case | 64LQFP |
| Package Cooled | LQFP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 10.2(Max) | Package Quantity | LQFP |
| Size / Dimension | 10.2 x 10.2 x 1.45mm | Number of Positions | 64 |
| Shell Size - Insert | 1.45(Max) | Number of Cores/Bus Width | 16 Bit |
| Pulse Width Distortion (Max) | 3 x 16 bit, 7 x 16 bit | ||
Product Info
| SPI | 1 | Spg | 320 |
| USB | 0 | Type | microcontroller |
| Series | 1 Series | Features | Watchdog Temp Sensor |
| Protocol | 0 | Software | SLAS272F |
| Bootloader | UART | Flash Size | :16KB |
| Multiplier | N/A | On-Chip RAM | 8-chx12-bit |
| Peripherals | POR, PWM, WDT | Special I/O | N/A |
| Architecture | RISC | Connectivity | SPI, UART/USART |
| Programmable | Yes | Number of Units | 1 |
| Number of Timers | 2 | Controller Series | :MSP430 |
| RF Family/Standard | MSP430 | Utilized IC / Part | View |
| DigiKey Programmable | Yes | Printed Circuit Board | 64 |
| Microcontroller Features | :Serial Communication Interface (USART),SPI, 16KB+256B Flash Memory, 512B RAM, Serial Onboard Programming, On-Chip Comparator, Five Power-Saving Modes | Number of A/D Converters | :8 |
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40 to 85 |
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
