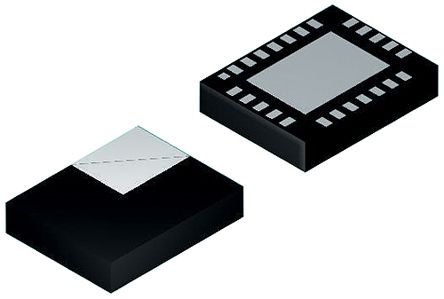

LMX2485ESQ/NOPB
| Manufacturer | |
| Description | PLL Frequency Synthesizer Dual 50MHz to 3000MHz 24-Pin LLP EP T/R Phase Locked Loops - PLL DELTA-SIGMA DUAL PLL FOR RF PERSONAL COMM LOGIC AND TIMING MISC IC PLL FREQ SYNTH 3GHZ 24-LLP LMX2485ESQ/NOPB, PLL Frequency Synthesizer 3, 50 to 3000MHz, 24-Pin LLP IC, DUAL FREQ SYNTHE, 3GHZ, LLP-24 Delta-Sigma Low Power Dual PLL for RF Personal Communications Texas Instruments 3元件 50 → 3000 MHz 频率合成器 , 24针 LLP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| PLL | Yes | Input | Clock |
| Output | Clock | Frequency | :3GHz |
| Frequency - Max | 3000 MHz | Current - Output | 3.3(Typ) mA |
| Voltage - Supply | 3 V | Divider/Multiplier | Yes/Yes |
| Number of Elements | 2 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 3000 | Ratio - Input:Output | 3:2 |
| Voltage - Supply (Min) | 2.5 V | Minimum Input Frequency | 50 MHz |
| Differential - Input:Output | Yes/No | ||
Mechanical
| Width | 4.15(Max) | Weight | 0.002 |
| Packaging | Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :24 | Package / Case | 24LLP EP |
| Package Cooled | LLP EP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 4.15(Max) | Package Quantity | WQFN EP |
| Number of Positions | 24 | Shell Size - Insert | 0.75(Max) |
| Supplier Device Package | 24-LLP-EP (4x4) | ||
Product Info
| Type | PLL Frequency Synthesizer | Series | LMX2485E |
| Software | SNAS236F | Plug Type | :Frequency Synthesis |
| Programmable | No | Functional Diagram | fbd_snas236f.gif |
| Number of Circuits | 2 | RF Family/Standard | LMX2485 |
| Utilized IC / Part | View | Other Specifications | 50 MHz |
| Printed Circuit Board | 24 | ||
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | -40 to 85 |
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Online Document
PDF Document
Online Document
Online Document
