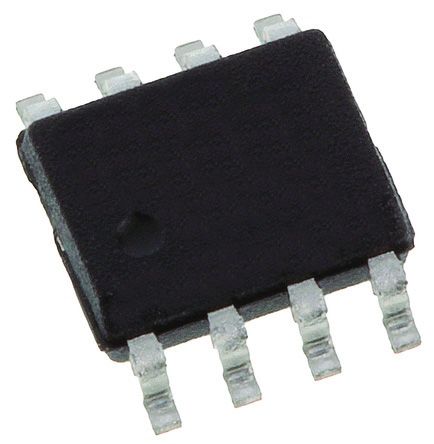

LF353DR
| Manufacturer | |
| Description | OP Amp Dual GP ±18V 8-Pin SOIC T/R IC OPAMP JFET 3MHZ 8SOIC Operational Amplifiers - Op Amps Dual JFET Op Amp OP Amp Dual GP �18V 8-Pin SOIC T/R Dual General-Purpose JFET-input Operational Amplifier Operational Amplifier Dual 3 MHz SOIC-8, LF353, LF353DR, Texas Instruments Texas Instruments LF353D 双 运算放大器, 3MHz, 8针 SOIC |
| Category |
Business
| Product | Operational Amplifiers | Other Names | 296-14587-2 |
| Product Category | Operational Amplifiers - Op Amps | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2500 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 100 dB | Frequency | 18nV/√Hz |
| Slew Rate | 13@±15V V/us | Input Type | Rail-to-Rail |
| Vn at 1kHz | 18 | Output Type | No |
| Offset Drift | 10 | Power - Input | Dual |
| Power - Rated | 0.5 W | Conversion Type | 13V/µs |
| Input Impedance | 0.01 pA/sqrt Hz | CMRR, PSRR (Typ) | 70 dB |
| Current - Output | 3.6mA | Current - Supply | 6.5@±15V@0C to 70C mA |
| Voltage - Supply | ±3.5 V | Power Supply Type | Dual |
| Number of Channels | 2 | Number of Elements | 2 |
| Current - Input Bias | 50pA | Current Rating (Max) | Catalog |
| Typical Voltage Gain | 100 dB | Noise - 0.1Hz to 10Hz | 18 nV/√Hz |
| Voltage - Input (Min) | 5mV | Gain Bandwidth Product | 3 MHz |
| Rail-to-Rail Operation | No | Power - Average Forward | 500 mW |
| Power Dissipation (Max) | 500 | Current - Quiescent (Iq) | 3.25 |
| Current - Input Bias (Max) | 0.0002@±15V uA | Input Offset Current (Max) | 0.0001@±15V |
| Vos (Offset Voltage @ 25C) | 10 | Input Noise Current Density | 0.01@±15V pA/rtHz |
| Input Noise Voltage Density | 18@±15V nV/rtHz | Voltage - Common Mode (Vcm) | Negative Rail + 4 V to Positive Rail - 4 V |
| Voltage - Supply Span (Typ) | �5/�9/�12/�15 V | Voltage - Input Offset (Max) | 10@±15V mV |
| Voltage - Supply, Dual (V+/-) | ±12 V, ±15 V, ±5 V, ±9 V | Voltage - Output Difference (Typ) @ Distance | 100 dB |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002561 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | General Purpose Amplifier | Design | Dual |
| Series | LF353 | Function | Y |
| Shutdown | No | Software | SLOS012B |
| Technology | BiFET | Manufacturer | Wideband Amplifier |
| Amplifier Type | J-FET | Number of Circuits | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
