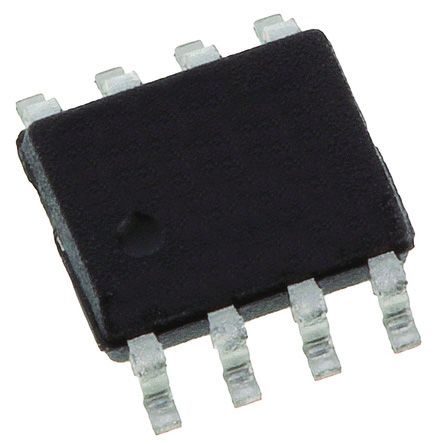

OPA2134UA
| Manufacturer | |
| Description | OP Amp Dual GP ±18V 8-Pin SOIC Tube IC OPAMP AUDIO 8MHZ 8SOIC 3.91mm OPA2134UA, Audio Amplifier 8MHz 86dB +85°C 8-Pin SOIC Audio Amplifiers SoundPlus(TM) Hi-Perf Aud Oper Amp OP Amp Dual GP �18V 8-Pin SOIC Tube Operational amplifier; SO8 SoundPlus(TM) High Performance Audio Operational Amplifiers Operational Amplifier Dual 8 MHz SO-8, OPA2134, OPA2134UA, Texas Instruments Texas Instruments 音频 音频放大器, 8 86dB, +85 °C, 8引脚 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Audio Amplifiers | Product Category | Audio Amplifiers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 120 dB | PSRR | 90 dB |
| Noise | 0.00015 % | Slew Rate | 20@±15V V/us |
| Input Type | 差分 | Vn at 1kHz | 8 |
| Output Type | No | Offset Drift | 2 |
| Output Signal | 差分 | Power - Input | Dual |
| CMRR, PSRR (Typ) | 86 dB | Current - Output | 4mA |
| Current - Supply | 4 mA | Voltage - Supply | ±2.5 V |
| Power Supply Type | Dual | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 5pA |
| Current Rating (Max) | Catalog | Noise - 0.1Hz to 10Hz | 8 nV/√Hz |
| Voltage - Input (Min) | 500µV | Gain Bandwidth Product | 8 MHz |
| Rail-to-Rail Operation | No | Current - Quiescent (Iq) | 5 |
| Current - Input Bias (Max) | 0.0001@±15V uA | Current - Output / Channel | 35mA |
| Input Offset Current (Max) | 0.00005@±15V | Voltage - Supply (Vcc/Vdd) | 36 |
| Vos (Offset Voltage @ 25C) | 2 | Input Noise Current Density | 0.003@±15V pA/rtHz |
| Input Noise Voltage Density | 8@±15V nV/rtHz | Voltage - Input Offset (Max) | 2@±15V mV |
| Voltage - Supply, Dual (V+/-) | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V | Voltage - Output Difference (Typ) @ Distance | 120 dB |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.21 g |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Spg | 10 | Type | General Purpose Amplifier |
| Design | Dual | Series | OPA2134 |
| DELETED | Compliant | Function | Wideband Amplifier |
| Shutdown | No | Software | SBOS058 |
| Technology | FET | Applications | 通用音频 |
| Manufacturer | Wideband Amplifier | Amplifier Type | Audio |
| Pattern Number | Y | Number of Units | 1 |
| Number of Circuits | 2 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
