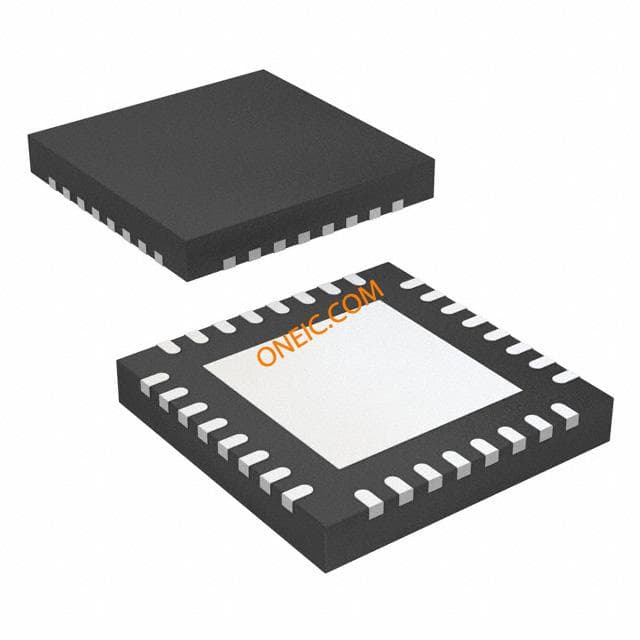

DS90LV804TSQ/NOPB
| Manufacturer | |
| Description | 4 CHANNEL LVDS BUFFER/REPEATER LVDS Buffer/Repeater 0.6V 32-Pin WQFN EP T/R IC BUFF REPEATER LVDS 4CH 32LLP DS90LV804TSQ, LVDS Buffer & Repeater Quad CML, LVDS, LVPECL, 800Mbit/s, 32-Pin LLP EP IC, LVDS, BUFFER/REPEATER, LLP-32 4-Channel 800 Mbps LVDS Buffer/Repeater Texas Instruments 四 800MBps LVDS缓冲器和中继器, CML，LVDS，LVPECL输入, 32针 LLP封装 LVDS Interface IC 4CH 800 MBPS LVDS BFR/REPEATER |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | DS90LV804TSQ/NOPBDKR | Standard Package | 1,000 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | ESD Protection | :12kV |
Electrical
| Input | LVDS | Baud Rates | :800Mbps |
| Delay Time | 3.2ns | Input Type | CML, LVDS, LVPECL |
| Output Type | Buffer/Repeater | Power - Max | :35ps |
| Input Signal | CML|LVDS|LVPECL | Output Signal | LVDS |
| Voltage Rating | 3.15 V | Data Rate (Max) | 800Mbit/s |
| Current - Output | 140mA | Current - Supply | :140mA |
| Number of Inputs | 4 | Voltage - Supply | 3.15 V ~ 3.45 V |
| Number of Outputs | 4 | Number of Elements | 4 |
| Voltage - I/O High | 0.1V | Capacitance - Input | 3.5pF |
| Current - Input Bias | 140 | Voltage - Output (Max) | 0.6 |
| Voltage - Supply (Min) | 3.45 V | Input Logic Level - Low | -0.1V |
| Power Dissipation (Max) | 4160 | Propagation Delay tpLH / tpHL (Max) | 3.2 |
Mechanical
| Width | 5mm | Height | 0.8mm |
| Length | 5mm | Weight | 0.002 |
| Packaging | Tape and Reel | Case Color | :LLP |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Number of Pins | :32 | Package / Case | 32-WFQFN Exposed Pad |
| Package Cooled | LLP EP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 5.15(Max) | Package Quantity | WQFN EP |
| Size / Dimension | 5 x 5 x 0.8mm | Number of Positions | 32 |
| Shell Size - Insert | 0.75(Max) | Supplier Device Package | 32-WQFN (5x5) |
Product Info
| Type | Buffer | Function | Buffer/Repeater |
| Software | SNLS195L | Pattern Number | Y |
| Number of Drivers | 4 | Functional Diagram | fbd_snls195l.gif |
| Utilized IC / Part | View | Number of Receivers | 4 |
| Printed Circuit Board | 32 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | +85 °C |
Documents & Media
PDF Document
PDF Document
