DRV101T
| Manufacturer | |
| Description | PWM Solenoid/Valve Driver 7-Pin(7+Tab) PFM Tube Motor Speed Controller 24V 7-Pin(7+Tab) PFM Tube IC MOTOR DRIVER PWM TO220-7 Motor / Motion / Ignition Controllers & Drivers PWM Solenoid/Valve DRIVER, SOLENOID, PWM, TO-220-7, 101 PWM Solenoid/Valve Driver |
| Category |
Business
| Product | Electromechanical Drivers | Product Category | Motor / Motion / Ignition Controllers & Drivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | PFM | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :101 | Rad Hardened | No |
Electrical
| Input Type | Non-Inverting | Voltage - Load | 9 V to 60 V |
| Voltage Rating | :800mV | Current - Output | 2.3 A |
| Voltage - Supply | 9 V ~ 60 V | Number of Outputs | 1 |
| Current Rating (Max) | Catalog | Current - Peak Output | 3A |
| Rds On (Max) @ Id, Vgs | 0.8 | Voltage - Output (Max) | :1V |
| Voltage - Supply (Min) | 9 V | Current - Output / Channel | 2.3A |
| Voltage - Supply (Vcc/Vdd) | 60 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 8.34 | Weight | 0.002 |
| Packaging | Tube | Tab Width | Tab |
| Case Color | :TO-220 | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :7 | Package / Case | 7PFM |
| Package Cooled | TO-220 | Material Finish | :- |
| Length - Overall | 10.16 | Package Quantity | PFM |
| Number of Positions | 7 | Shell Size - Insert | 4.6 |
| Supplier Device Package | TO-220-7 | ||
Product Info
| Type | Motor Speed Controller | Series | DRV101 |
| Software | SBVS008B | Base Unit | :101 |
| Utilized IC / Part | View | Printed Circuit Board | 7 |
Environmental
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
DRV101T
texas instruments
PWM Solenoid/Valve Driver 7-Pin(7+Tab) PFM Tube Motor Speed Controller 24V 7-Pin(7+Tab) PFM Tube IC MOTOR DRIVER PWM TO220-7 Motor / Motion / Ignition Controllers & Drivers PWM Solenoid/Valve DRIVER, SOLENOID, PWM, TO-220-7, 101 PWM Solenoid/Valve Driver
DRV102FKTWT
texas instruments

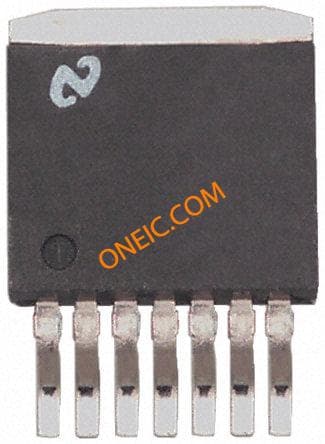

PWM Solenoid/Valve Driver 8-Pin(7+Tab) PFM T/R Motor Speed Controller 24V 8-Pin(7+Tab) TO-263 T/R IC MOTOR DRIVER PWM 7DDPAK DRV102FKTWT, Motor Driver,, 7, 8-Pin PFM Motor / Motion / Ignition Controllers & Drivers PWM Solenoid/ Valve Driver CONTROLLER, PWM, SMD, PFM-7, 102 PWM Solenoid/Valve Driver PWM Solenoid/Valve Driver 7-Pin D2PAK
