DAC716P

Manufacturer	Texas Instruments Incorporated
Description	DAC 1-CH R-2R 16-bit 16-Pin PDIP Tube Digital to Analog Converters - DAC 16-Bit w/Ser Data Interface IC 16-BIT D/A CONVERTER 16-DIP IC, 16BIT DAC, DIP16, 716 16-Bit Digital-to-Analog Converter with Serial Data Interface
Category	Integrated CircuitsData ConvertersData Converters

对参数有疑问？问 AI 助手

Business

Product Category	Digital to Analog Converters - DAC	Standard Package	Rail / Tube
Factory Pack Quantity	25	Standard Package Name	PDIP

Compliance

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85423190
Part Status	:716	Rad Hardened	No

Electrical

Interface	Serial (SPI)	Linearity	:2%
Full Scale	±0.25 %FSR	Input Type	:Serial
Resolution	16 Bit	Output Type	Voltage
Output Range	0	INL/DNL (LSB)	±8 LSB
Power - Input	Dual	Settling Time	10 us
Converter Type	General Purpose	Data Interface	Serial
Number of Bits	16	Reference Type	Int
Data Rate (Max)	86 Ksps	Number of DAC's	1
Current - Output	:22mA	Voltage - Supply	�11.4 V
Distortion Rating	+/- 8 LSB	Number of Outputs	1
Power Supply Type	Dual	Resolution (Bits)	:16bit
Voltage Reference	Internal	Number of Channels	1
Sampling Frequency	:86kSPS	Current Rating (Max)	Catalog
Voltage Supply Source	Dual ±	Gain Bandwidth Product	0.2
Rise / Fall Time (Typ)	:4µs	Power - Average Forward	525
Power Dissipation (Max)	:750mW	Number of Outputs and Type	1 Voltage, Unipolar
Sampling Rate (Per Second)	86k	Voltage - Supply Span (Typ)	�15 V

Mechanical

Width	6.6(Max)	Weight	0.037172 oz
Packaging	Tube	Lead Style	Through Hole
Termination	:Through Hole	Mounting Type	Through Hole
Mounting Style	Through Hole	Number of Pins	:16
Package / Case	16PDIP	Package Cooled	PDIP
Material Finish	:-	Length - Overall	19.69(Max)
Package Quantity	PDIP	Number of Positions	16
Shell Size - Insert	5.08(Max) - 0.51(Min)	Supplier Device Package	16-PDIP

Product Info

Series	DAC716	Software	SBAS049
Base Unit	:716	Replacement	DAC716U
Architecture	R-2R	Functional Diagram	fbd_sbas049.gif
Utilized IC / Part	View	Printed Circuit Board	16
Number of A/D Converters	1

Environmental

Mechanical Life	NRND: Not recommended for new designs.	Temperature - Test	-40 to 85
Operating Temperature	-40 to 85 °C	Operating Temperature - Junction	85C

Documents & Media

PDF Document

DAC716

PDF Document

713071.pdf

PDF Document

dac716.pdf

Similar Parts

TLV5616CDG4

texas instruments

DAC 1-CH Resistor-String 12-bit 8-Pin SOIC Tube Digital to Analog Converters - DAC 2.7-5.5 V Low Power 12-Bit IC 12 BIT 3US DAC S/O 8-SOIC TLV5616CDG4, 12-Bit 12 Bit DAC 102ksps, SPI, Microwire, 8-Pin SOIC IC, 12BIT DAC, SMD, SOIC8, 5616 12-Bit, 3 us DAC, Serial Input, Pgrmable Settling Time/Power Consump., Voltage O/P Range=2x VRef.

$27.1800

Details

DAC7551IDRNTG4

texas instruments

DAC 1-CH Resistor-String 12-Bit 12-Pin USON EP T/R Digital to Analog Converters - DAC 12-Bit UltrLo Glitch Vltg Output Cnvtr DAC 1-CH Resistor-String 12-bit 12-Pin USON EP T/R IC DAC 12BIT OCTAL 12-SON DAC7551IDRNTG4, 12-Bit 12 Bit DAC 500ksps, SPI, Microwire, 12-Pin USON, USON EP D/A CONVERTER, 12BIT, 1-CH, 7551 12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter

$18.1200

Details

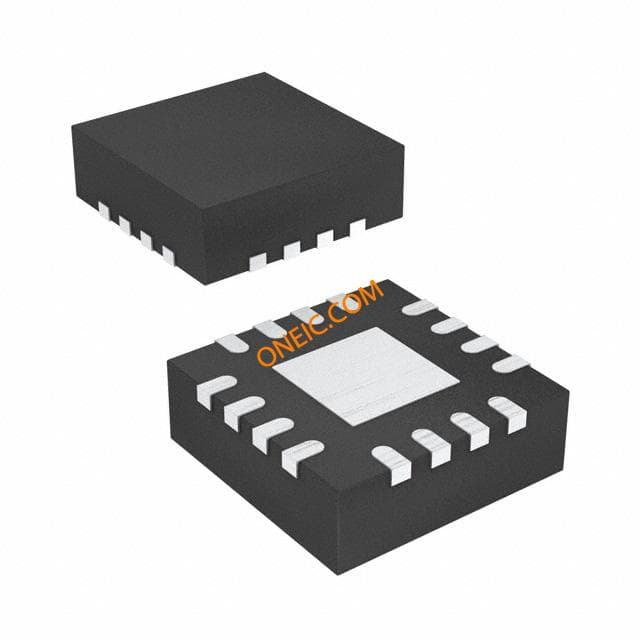

LOG114AIRGVT
