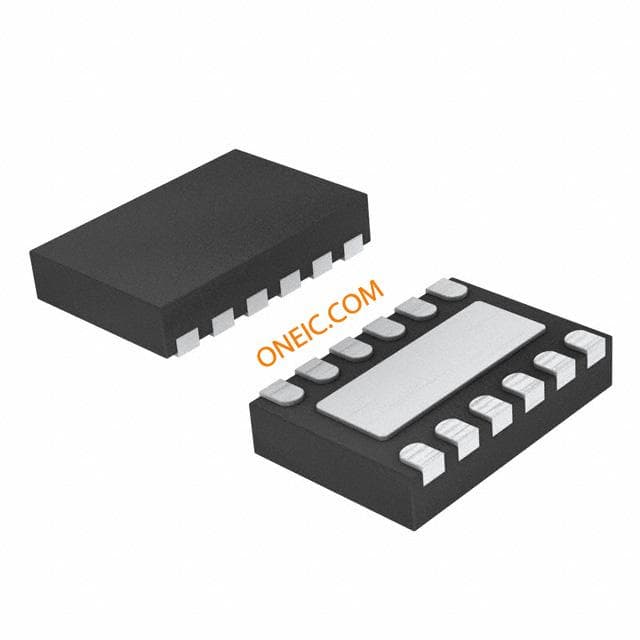

DAC7551IDRNTG4
| Manufacturer | |
| Description | DAC 1-CH Resistor-String 12-Bit 12-Pin USON EP T/R Digital to Analog Converters - DAC 12-Bit UltrLo Glitch Vltg Output Cnvtr DAC 1-CH Resistor-String 12-bit 12-Pin USON EP T/R IC DAC 12BIT OCTAL 12-SON DAC7551IDRNTG4, 12-Bit 12 Bit DAC 500ksps, SPI, Microwire, 12-Pin USON, USON EP D/A CONVERTER, 12BIT, 1-CH, 7551 12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter |
| Category |
Business
| Product Category | Digital to Analog Converters - DAC | Standard Package | Cut Tape, Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | USON |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :7551 | Rad Hardened | No |
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | Linearity | :0.35LSB |
| Full Scale | ±0.5 %FSR | Input Type | :Serial |
| Resolution | 12 Bit | Output Type | Voltage |
| Output Range | 0 | INL/DNL (LSB) | ±1 LSB |
| Power - Input | Single | Settling Time | 5 us |
| Converter Type | General Purpose | Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| Number of Bits | 12 | Reference Type | Ext |
| Data Rate (Max) | 500 KSPS | Number of DAC's | 1 |
| Current - Output | :150µA | Voltage - Supply | 5.5 V |
| Distortion Rating | +/- 1 LSB | Number of Outputs | 1 |
| Power Supply Type | Single | Resolution (Bits) | :12bit |
| Voltage Reference | External | Number of Channels | 1 |
| Sampling Frequency | :500kSPS | Current Rating (Max) | Catalog |
| Voltage Supply Source | Single Supply | Gain Bandwidth Product | 0.15 |
| Power - Average Forward | 0.27 | Voltage - Supply, Digital | :2.7V to 5.5V |
| Voltage Supply - Internal | :2.7V to 5.5V | Number of Outputs and Type | 1 Voltage, Unipolar |
| Sampling Rate (Per Second) | 500k | Voltage - Supply Span (Typ) | Not Required V |
Mechanical
| Width | 3 | Weight | 0.000575 oz |
| Packaging | Reel | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :12 | Package / Case | 12USON EP |
| Package Cooled | USON EP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 2 | Package Quantity | USON EP |
| Number of Positions | 12 | Shell Size - Insert | 0.75 |
| Supplier Device Package | 12-USON (3x2) | ||
Product Info
| Series | DAC7551 | Software | SLAS441E |
| Base Unit | :7551 | Architecture | Resistor-String |
| Functional Diagram | fbd_slas441e.gif | Utilized IC / Part | View |
| Printed Circuit Board | 12 | Number of A/D Converters | 1 |
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | 105C | ||
Documents & Media
