CSD86350Q5DEVM-604
| Manufacturer | |
| Description | Evaluation Board For Synchronous Buck NEX FET Power Block Power Management IC Development Tools Hi Density,Hi Crrnt Pwr Supply Sol EVAL MODULE FOR CSD86350Q5D EVAL MODULE, FOR CSD86350Q5D |
| Category |
Business
| Product | Power Management Modules | Tradename | NexFET |
| Product Category | Power Management IC Development Tools | Standard Package | Boxed |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | RoHS Not Applicable | Tariff No | 85423990 |
Electrical
| Current - Output | 25A | Regulator Topology | Buck |
| Frequency - Switching | 290kHz | Voltage - Input (Min) | 1.2V |
Mechanical
| Weight | 0.25 | Board Thickness | Fully Populated |
Product Info
| Type | Development Kit | DELETED | Not Compliant |
| Contents | Board | Features | http://www.ti.com/lit/ug/sluu416a/sluu416a.pdf |
| Technology | DC to DC Controller | Kit Contents | :Dev Board CSD86350Q5DEVM-604 |
| Main Purpose | DC/DC, Step Down | Outputs and Type | 1, Non-Isolated |
| Tool Type Feature | CSD86350Q5D | RF Family/Standard | CSD86350Q5D |
| Utilized IC / Part | CSD86350Q | ||
Documents & Media
Similar Parts
CSD86350Q5D
texas instruments
Synchronous Buck NexFET Power Block 8-Pin SON T/R MOSFET N-CH 25V 40A 8SON Synchronous Buck NexFET™ Power Block MOSFET Pair Texas Instruments 双 N沟道 Si MOSFET 模块 , 120 A, Vds=25 V, 8针 SON封装 MOSFET Synch Buck NexFET Pwr Block MOSFET

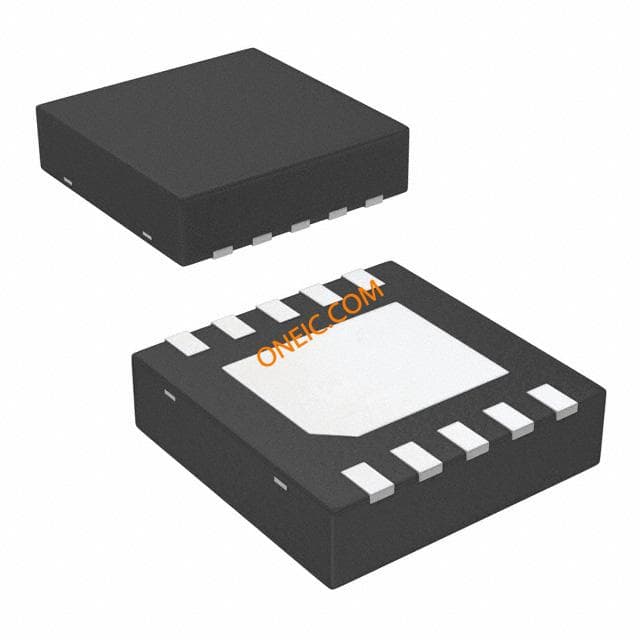

TPS51218DSCT
texas instruments
DC DC Cntrlr Single-OUT Sync Step Down 3V to 28V Input 10-Pin WSON EP T/R IC REG CTRLR BUCK PWM 10WSON Switching Controllers 3-28V In,20A Synch Step Down Cntrlr DC DC Cntrlr Single-OUT Sync Step Down 3V to 28V 10-Pin SON EP T/R DC/DC CONTROLLER, 3 TO 28V, 10SON 3V to 28V Input. 20A Synchronous Step Down Controller with DCAP™ Mode for Notebook Power Supply 1输出 直流-直流控制器, 20A, 28 V, 降压, 465 kHz, 10引脚 WSON封装
TPS51218EVM-496
texas instruments
TPS51218EVM-496 Power Management IC Development Tools Step Down Converter Eval Mod EVALUATION MODULE WITH 20-ADC STEADY-STATE CURRENT EVAL MODULE FOR TPS51218 TPS5121, STEP DOWN CONV, EVAL MOD
