CSD16325Q5
| Manufacturer | |
| Description | Trans MOSFET N-CH 25V 33A 8-Pin SON EP T/R MOSFET N-Channel NexFET Power MOSFET MOSFET N-CH 25V 5X6 100A 8SON MOSFET, N CH, 25V, 100A, 8SON N-Channel NexFET™ Power MOSFET |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | NexFET | Other Names | 296-24964-2 |
| Product Category | MOSFET | Standard Package | Cut Tape, Tape & Reel |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85412900 |
| Part Status | ACTIVE | ||
Electrical
| FET Type | MOSFET N-Channel, Metal Oxide | Fall Time | 12 ns |
| Vgs (Max) | 10 V | FET Feature | Logic Level Gate |
| Gate Charge | 18 nC | Power - Max | 3.1W |
| Power - Rated | 3.1 W | Fall Time (Typ) | 12 ns |
| Rise Time (Typ) | 16 ns | Transistor Type | N-Channel |
| Delay to 1st Tap | 32 ns | Number of Elements | 1 |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA | Voltage - Breakdown | 25 V |
| Voltage - Threshold | :1.1V | Current Rating (Max) | :100A |
| Resistance - RDS(On) | :1.7mohm | Contact Voltage (Max) | :25V |
| Rds On (Max) @ Id, Vgs | 2@8V mOhm | Power Dissipation (Max) | :3.1W |
| Propagation Delay (Max) | 16 ns | Vce(on) (Max) @ Vge, Ic | 25 |
| Logic Voltage - VIL, VIH | Yes | On-State Resistance (Max) | 2@8V |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 4.5V | Current - Peak Pulse (8/20us) | 200 |
| DC Resistance (DCR) - Primary | 159 S | Switch Time (Ton, Toff) (Max) | 10.5 ns |
| Drain to Source Voltage (Vdss) | 25V | Current - Peak Pulse (10/1000us) | 33 A |
| Current - Drain (Idss) @ Vds (Vgs=0) | 33 A | Input Capacitance (Ciss) (Max) @ Vds | 4000pF @ 12.5V |
| Current - Continuous Drain (Id) @ 25degC | 33A (Ta), 100A (Tc) | ||
Mechanical
| Width | 6.1(Max) | Weight | 0.0035 |
| Packaging | Reel | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SON EP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5.1(Max) |
| Package Quantity | SON EP | Number of Positions | 8 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 8-SON |
Product Info
| Software | SLPS218C | Base Unit | :16325 |
| Channel Type | Enhancement | Configuration | Single |
| Pattern Number | Y | Utilized IC / Part | View |
| Other Specifications | 3.5 | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -55 to 150 | Operating Temperature | -55 to 150 °C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Online Document
Similar Parts
CSD16325Q5
texas instruments
Trans MOSFET N-CH 25V 33A 8-Pin SON EP T/R MOSFET N-Channel NexFET Power MOSFET MOSFET N-CH 25V 5X6 100A 8SON MOSFET, N CH, 25V, 100A, 8SON N-Channel NexFET™ Power MOSFET
$2.5874
Details

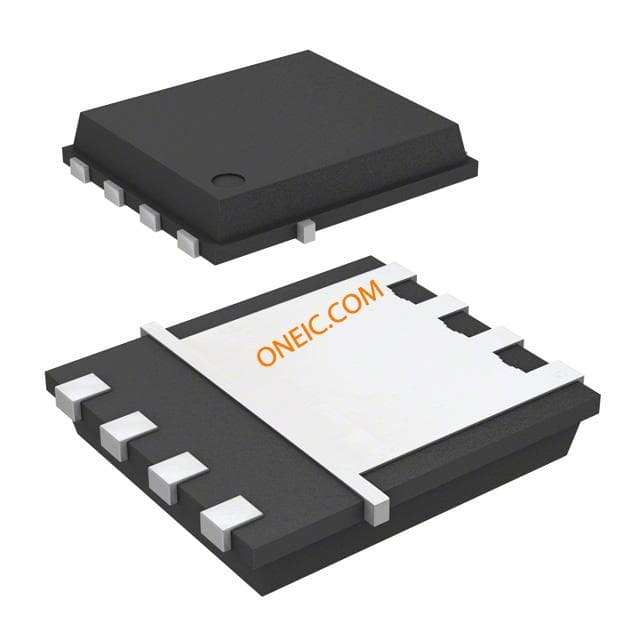

CSD16404Q5A
