CSD16323Q3
| Manufacturer | |
| Description | Trans MOSFET N-CH 25V 21A 8-Pin SON EP MOSFET N-CH 25V 3.3X3.3 8-SON MOSFET, N CH, 25V, 60A, 8SON N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 60 A, Vds=25 V, 8针 SON封装 MOSFET N-Ch NexFET Pwr MOSFET |
| Category |
Business
| Other Names | 296-24522-2 | Standard Package | Tape & Reel |
Compliance
| RoHS | Contains lead / RoHS compliant by exemption | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85412900 |
| Part Status | ACTIVE | ||
Electrical
| FET Type | MOSFET N-Channel, Metal Oxide | Vgs (Max) | 10 V |
| FET Feature | Logic Level Gate | Power - Max | 3W |
| Fall Time (Typ) | 6.3 ns | Transistor Type | :N Channel |
| Delay to 1st Tap | 13 ns | Number of Elements | 1 |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA | Voltage - Breakdown | 25 V |
| Voltage - Threshold | :1.1V | Current Rating (Max) | :60A |
| Resistance - RDS(On) | :4.4mohm | Contact Voltage (Max) | :25V |
| Rds On (Max) @ Id, Vgs | 4.5@8V mOhm | Power Dissipation (Max) | :3W |
| Propagation Delay (Max) | 15 ns | Vce(on) (Max) @ Vge, Ic | 25 |
| Logic Voltage - VIL, VIH | Yes | On-State Resistance (Max) | 4.5@8V |
| Gate Charge (Qg) (Max) @ Vgs | 8.4nC @ 4.5V | Current - Peak Pulse (8/20us) | 112 |
| Switch Time (Ton, Toff) (Max) | 5.3 ns | Drain to Source Voltage (Vdss) | 25V |
| Current - Peak Pulse (10/1000us) | 21 A | Input Capacitance (Ciss) (Max) @ Vds | 1300pF @ 12.5V |
| Current - Continuous Drain (Id) @ 25degC | 21A (Ta), 60A (Tc) | ||
Mechanical
| Width | 3.3 | Weight | 0.0001 |
| Packaging | Tape & Reel (TR) | Termination | :SMD |
| Mounting Type | Surface Mount | Number of Pins | :8 |
| Package / Case | 8SON EP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.3 | Package Quantity | SON EP |
| Number of Positions | 8 | Shell Size - Insert | 1 |
| Supplier Device Package | 8-SON | ||
Product Info
| Software | SLPS224B | Channel Type | Enhancement |
| Configuration | Single | Pattern Number | Y |
| Functional Diagram | alt_slps224b.gif | Utilized IC / Part | View |
| Other Specifications | 1.1 | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -55 to 150 | Operating Temperature | -55 to 150 °C |
Documents & Media
Similar Parts
CSD16323Q3
texas instruments
Trans MOSFET N-CH 25V 21A 8-Pin SON EP MOSFET N-CH 25V 3.3X3.3 8-SON MOSFET, N CH, 25V, 60A, 8SON N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 60 A, Vds=25 V, 8针 SON封装 MOSFET N-Ch NexFET Pwr MOSFET

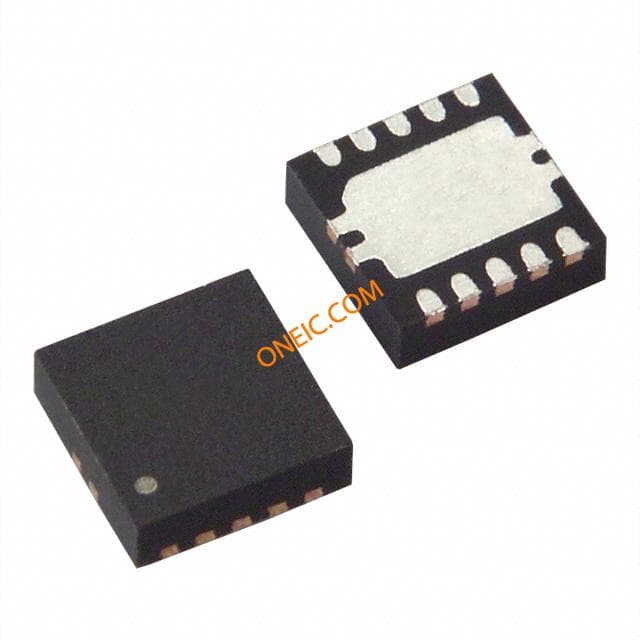

TPS51163DRCT
