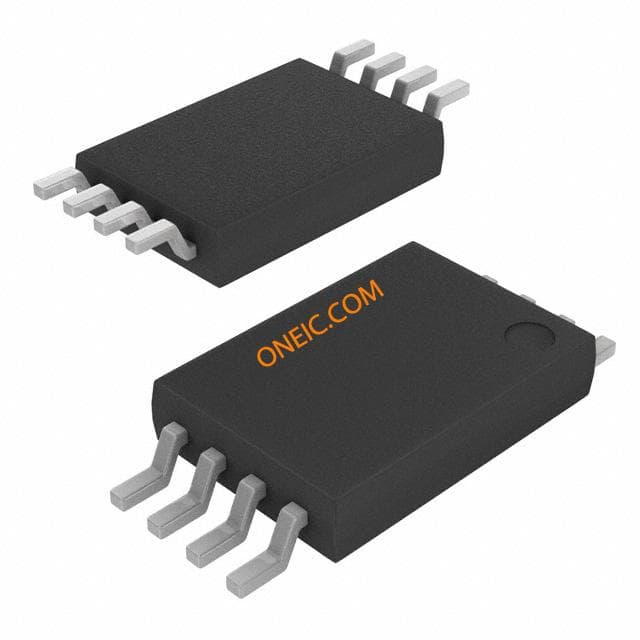

CDCV304PW
| Manufacturer | |
| Description | Clock Fanout Buffer 4-OUT 8-Pin TSSOP Tube CDCV304PW, Clock Buffer, 8-Pin TSSOP Clock Buffer CLOCK BUFFER IC, CLOCK BUFFER, SMD, TSSOP8, 304 General Purpose and PCI-X 1:4 Clock Buffer Clock Buffer TSSOP-8, CDCV304, CDCV304PW, Texas Instruments 时钟生成器, 8针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Clock Buffer | Standard Package | Rail / Tube |
| Factory Pack Quantity | 150 | Standard Package Name | TSSOP |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | :304 | Rad Hardened | No |
Electrical
| Frequency | 140 MHz | Input Type | :TTL |
| Output Type | :CMOS | Output Signal | LVTTL |
| Voltage Rating | 2.3 V | Clock Frequency | :140MHz |
| Frequency - Max | 140 MHz | Current - Output | :37mA |
| Voltage - Output | LVTTL | Voltage - Supply | 2.5|3.3 V |
| Number of Outputs | 4 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 200 | Voltage - Supply (Min) | 3.6 V |
| Input Logic Level - Low | LVTTL | Propagation Delay (Max) | 2.5 ns |
| Delay Time - Propagation | 3 ns | Current - Input Bias (Max) | :5µA |
| Max Propagation Delay @ V, Max CL | 2.5(Typ)@3.3V ns | ||
Mechanical
| Width | 4.4mm | Height | 1.15mm |
| Length | 3mm | Weight | 0.001376 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.1(Max) |
| Package Quantity | TSSOP | Size / Dimension | 3 x 4.4 x 1.15mm |
| Number of Positions | 8 | Shell Size - Insert | 1.05(Max) |
Product Info
| Type | Fanout Buffer | Series | CDCV304 |
| DELETED | Compliant | Software | SCAS643H |
| Base Unit | :304 | Pattern Number | Y |
| Functional Diagram | alt_scas643h.gif | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | +85 °C |
Documents & Media
PDF Document
Online Document
Similar Parts
CDCV304PWR
texas instruments
Clock Fanout Buffer 4-OUT 8-Pin TSSOP T/R IC CLK BUFFER 1:4 200MHZ 8TSSOP Clock Buffer Gen Purpose and PCI-X 1:4 Clock Buff IC, CLOCK BUFFER General Purpose and PCI-X 1:4 Clock Buffer Clock Buffer TSSOP-8, CDCV304, CDCV304PWR, Texas Instruments CDCV304PW 时钟生成器, LVTTL, LVTTL输出, 8针 TSSOP封装
$0.4750
Details

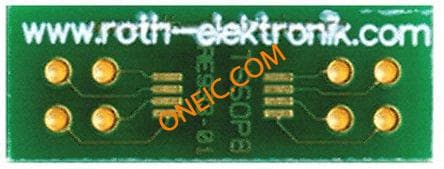

RE933-01
