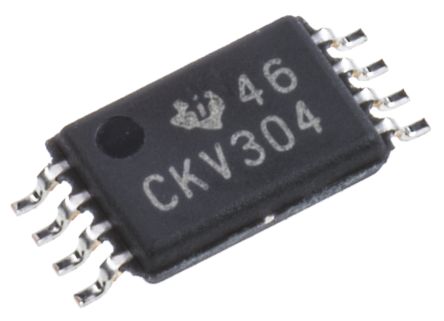

CDCV304PWR
| Manufacturer | |
| Description | Clock Fanout Buffer 4-OUT 8-Pin TSSOP T/R IC CLK BUFFER 1:4 200MHZ 8TSSOP Clock Buffer Gen Purpose and PCI-X 1:4 Clock Buff IC, CLOCK BUFFER General Purpose and PCI-X 1:4 Clock Buffer Clock Buffer TSSOP-8, CDCV304, CDCV304PWR, Texas Instruments CDCV304PW 时钟生成器, LVTTL, LVTTL输出, 8针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-9436-2 | Product Category | Clock Buffer |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2000 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Input | LVTTL | Output | LVTTL |
| Frequency | 140 MHz | Output Signal | LVTTL |
| Voltage Rating | 2.3 V | Frequency - Max | 140 MHz |
| Current - Output | :37mA | Voltage - Output | LVTTL |
| Voltage - Supply | 2.5|3.3 V | Number of Outputs | 4 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 200 |
| Ratio - Input:Output | 1:4 | Voltage - Supply (Min) | 3.6 V |
| Input Logic Level - Low | LVTTL | Propagation Delay (Max) | 2.5 ns |
| Delay Time - Propagation | 3 ns | Differential - Input:Output | No/No |
| Max Propagation Delay @ V, Max CL | 2.5(Typ)@3.3V ns | ||
Mechanical
| Width | 4.5(Max) | Weight | 0.001376 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.1(Max) |
| Package Quantity | TSSOP | Number of Positions | 8 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 8-TSSOP |
Product Info
| Type | Fanout Buffer | Series | CDCV304 |
| DELETED | Compliant | Software | SCAS643H |
| Pattern Number | Y | Functional Diagram | alt_scas643h.gif |
| Number of Circuits | 1 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
