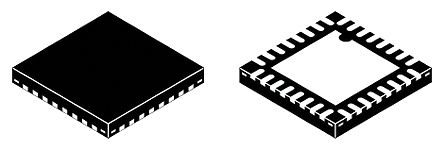

CDCE62002RHBT
| Manufacturer | |
| Description | Clock Generator/Jitter Cleaner 32-Pin VQFN EP T/R IC CLK SYNTH/JITTER CLEANR 32QFN Clock Synthesizer / Jitter Cleaner Four Output Clock Gen/Jitter Cleaner IC, CLOCK GENERATOR, 1175MHZ, QFN-32 CLOCK GENERATOR, 1.175GHZ, QFN-32 Four Output Clock Generator/Jitter Cleaner with Integrated Dual VCOs Texas Instruments 10.94 → 1175 MHz 频率合成器 , 32针 VQFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-24660-2 | Product Category | Clock Synthesizer / Jitter Cleaner |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| PLL | Yes | Input | LVCMOS, LVDS, LVPECL, Crystal |
| Output | LVCMOS, LVDS, LVPECL | Frequency | :1.175GHz |
| Interface | :Serial, SPI | Output Signal | LVPECL, LVDS, LVCMOS |
| Frequency - Max | 1.175GHz | Current - Output | 20 mA |
| Voltage - Supply | 3 V ~ 3.6 V | Number of Outputs | 4 |
| Divider/Multiplier | Yes/No | Frequency - Output 1 | 1.175 GHz |
| Ratio - Input:Output | 2:2 | Input Logic Level - High | LVPECL, LVDS, LVCMOS |
| Voltage - Supply (Vcc/Vdd) | 3.3 | Differential - Input:Output | Yes/Yes |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 5.15(Max) | Weight | 0 |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :32 | Package / Case | 32VQFN EP |
| Package Cooled | QFN EP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 5.15(Max) | Package Quantity | VQFN EP |
| Number of Positions | 32 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 32-VQFN (5x5) | ||
Product Info
| Type | Clock Generator | Series | CDCE62002 |
| Features | Design Tool Available | Function | Clock Generator |
| Software | SCAS882D | Number of Circuits | 1 |
| RF Family/Standard | CDCE62002 | Utilized IC / Part | View |
| Printed Circuit Board | 32 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
