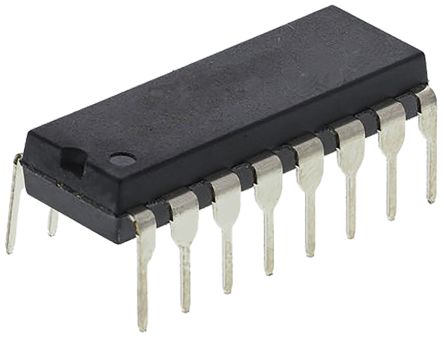

CD74HC4094E
| Manufacturer | |
| Description | Shift Register/Latch Single 8-Bit Serial to Serial/Parallel 16-Pin PDIP Tube IC 8STG SHFT/STOR BUS REG 16DIP CD74HC4094E, 8-stage Shift Register HC, Serial to Serial/Parallel, Uni-Directional 2 to 6V 16-Pin PDIP Counter Shift Registers High Speed CMOS 8-Stg Shift Register IC, 74HC, 74HC4094, DIP16, 6V High Speed CMOS Logic 8-Stage Shift-and-Store Bus Register with 3-Stage Outputs Logic IC PDIP-16, CD74HC4094, CD74HC4094E, Texas Instruments , 8-Bit 移位寄存器, 串行至串行/并行, 单向, 2 → 6 V电源, 16针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Counter Shift Registers | Standard Package | Bulk, Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :74HC4094 | Rad Hardened | No |
Electrical
| GPIO | :Serial to Parallel, Serial to Serial | Output | Yes |
| Voltage | 6 | Frequency | :60MHz |
| Input Type | CMOS | Logic Type | HC |
| Output Type | 3-State | Number of Bits | 8 |
| Operating Mode | Serial to Serial/Parallel | Voltage Rating | 2.5|3.3|5 V |
| Number of Inputs | 1 | Voltage - Supply | 2 V ~ 6 V |
| Number of Outputs | 10 | Number of Elements | 1 |
| Current Rating (Max) | :1µA | Frequency - Output 1 | 28 |
| Schmitt Trigger Input | No | Voltage - Supply (Min) | 6 V |
| Propagation Delay (Max) | 295 | Delay Time - Propagation | 195 ns, 39 ns, 33 ns |
| Current - Quiescent (Max) | 0.08 | Number of Bits per Element | 8 |
| Current - Output Source/Sink | 5.2/-5.2 | Propagation Delay tpLH / tpHL (Max) | 33 |
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.033570 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :16 |
| Package / Case | 16PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 19.69(Max) |
| Package Quantity | PDIP | Size / Dimension | 19.3 x 6.35 x 4.57mm |
| Number of Positions | 16 | Shell Size - Insert | 5.08(Max) - 0.51(Min) |
| Switch Actuation Level | Positive Edge | Supplier Device Package | 16-PDIP |
Product Info
| Type | Not Required | Series | CD74HC4094 |
| Process | CMOS | Function | Shift Register/Latch |
| Software | SCHS211E | Base Unit | :74 |
| Technology | CMOS | Port Direction | Uni-Directional |
| Number of Stages | 8 | Counting Sequence | Serial to Serial/Parallel |
| Number of Circuits | 2 | RF Family/Standard | HC |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
