CD4066BE
| Manufacturer | |
| Description | Analog Switch Quad SPST 14-Pin PDIP Tube Analog Switch ICs Quad QUAD BILATERAL SWITCH 14-DIP CD4066BE, Analogue Switch Quad SPST, 5, 9, 12, 15V, 14-Pin, PDIP IC, ANALOGUE SWITCH, QUAD, 14DIP IC, ANALOG SWITCH, QUAD, SPST, DIP-14 CMOS Quad Bilateral Switch Logic IC DIL-14, HCF4066BEY, ST Texas Instruments 模拟开关, 四单刀单掷, 12 V, 15 V, 5 V, 9 V电源电压, 14针 PDIP封装 |
| Category |
Business
| Other Names | 296-2061-5 | Product Category | Analog Switch ICs |
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 25 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :4066 | Rad Hardened | No |
| High Reliability | Y | ||
Electrical
| Circuit | 1 x 1:1 | Channels | 4 |
| Crosstalk | Yes | Logic Type | :4066 |
| Input Signal | Yes | Turn On Time | 70@5V ns |
| Output Signal | Single Ended | Power - Input | Single/Dual |
| Delay Time - OFF | 70@5V ns | Number of Inputs | 4 |
| Voltage - Supply | ±1.5 V | Number of Outputs | 4 |
| Power Supply Type | Single|Dual | Switching Voltage | 15 V |
| Number of Channels | 4 | Voltage - Breakdown | 15 V |
| Current Rating (Max) | Military | Resistance - RDS(On) | :470ohm |
| Schmitt Trigger Input | No | Voltage Supply Source | Dual Supply |
| Switch Function/Rating | SPST | On-State Resistance (Max) | 1050@5V Ohm |
| Voltage - Supply Span (Typ) | �3/�5 V | Switch Time (Ton, Toff) (Max) | 70 ns |
| Max Propagation Delay @ V, Max CL | 15@15V|20@10V|40@5V ns | Multiplexer/Demultiplexer Circuit | Quad SPST |
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.032734 oz |
| Bandwidth | :40MHz | Packaging | Tube |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :14 | Package / Case | 14PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 19.69(Max) | Package Quantity | PDIP |
| Size / Dimension | 19.3 x 6.35 x 4.57mm | Number of Positions | 14 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 14-PDIP |
Product Info
| Type | Analog Switch | Series | CD4066B |
| Features | Low Power Low Crosstalk | Function | :Quadruple Bilateral Switch |
| Polarity | Non-Inverting | Software | SCHS051D |
| Base Unit | :4066 | Switch Type | Analogue |
| Configuration | Quad SPST | Number of Switches | 4 |
| RF Family/Standard | CD4000 | Utilized IC / Part | :CD4066BE |
| Independent Circuits | 4 | Printed Circuit Board | 14 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | + 125 C |
Documents & Media
Similar Parts
HCF4066BEY
stmicroelectronics
Analog Switch Quad SPST 14-Pin PDIP Tube Analog Switch ICs Quad Bilateral Sw QUAD ANALOG SWITCH DIP14 IC BILATERAL SWITCH QUAD 14-DIP IC, ANALOG SWITCH, QUAD, SPST, DIP-14 Logic;DIP;-0.5TO+22V;200mW;25;7.5uA(Max.)ICC;8pF(Typ.)@25C
1-390261-3
te connectivity / amp
Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube DIP Sockets CONN IC SOCKET VERT 14POS TIN 14 way Augat tin plate DIL socket,0.3in IC & Component Sockets 14P ECONOMY TIN Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:DIP SocketNumber of Positions = 14Row-to-Row Spacing = 7.62 mmThru HoleMount Style = VerticalSearch Keywords:IC sockets, solderless, NIC, Network Interface Cards, PC Cards, EIA RS-415, MIL-S-83734, dual in-line IC package, SOCKET IC, DIL, 0.3", 14WAY Socket,DIP;14Pins;DualLeaf;EconomyLadder;0.3In.;PhosphorBronze;Tin/Lead
CD4066BE
texas instruments
Analog Switch Quad SPST 14-Pin PDIP Tube Analog Switch ICs Quad QUAD BILATERAL SWITCH 14-DIP CD4066BE, Analogue Switch Quad SPST, 5, 9, 12, 15V, 14-Pin, PDIP IC, ANALOGUE SWITCH, QUAD, 14DIP IC, ANALOG SWITCH, QUAD, SPST, DIP-14 CMOS Quad Bilateral Switch Logic IC DIL-14, HCF4066BEY, ST Texas Instruments 模拟开关, 四单刀单掷, 12 V, 15 V, 5 V, 9 V电源电压, 14针 PDIP封装

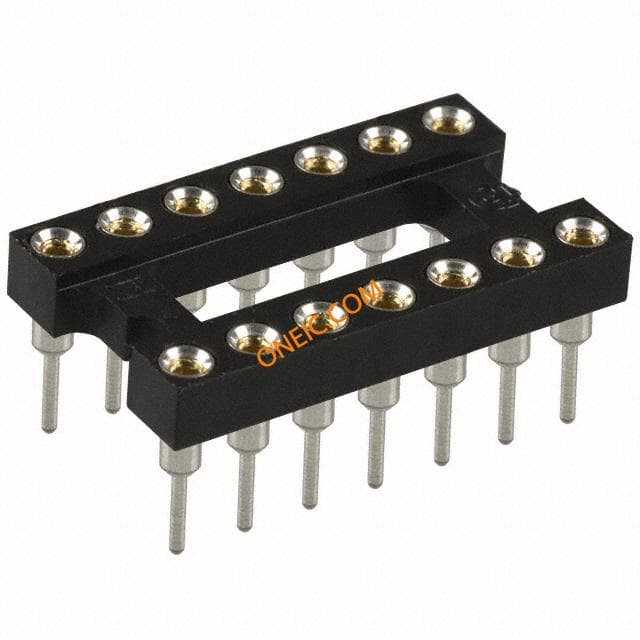

14-3518-10
Aries Electronics
14 PIN SOLDER TAIL DIP SOCKET IC & Component Sockets 14P SOLDER TIN/GLD SOCKET, DIP, 14WAY

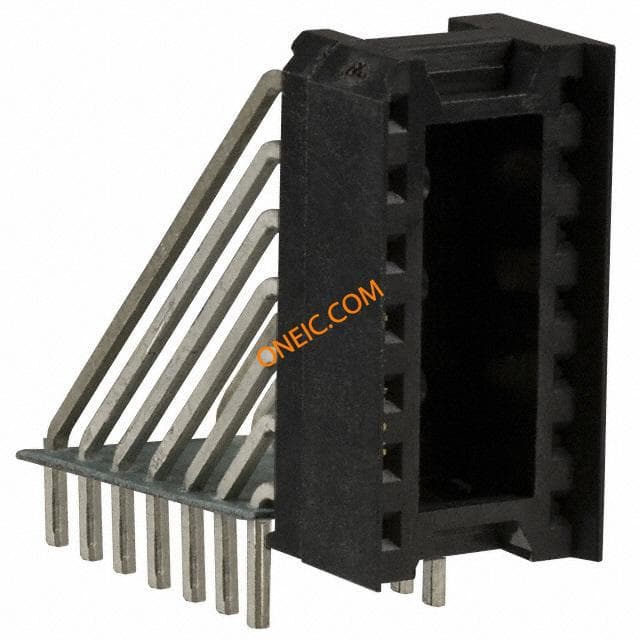

14-810-90T
