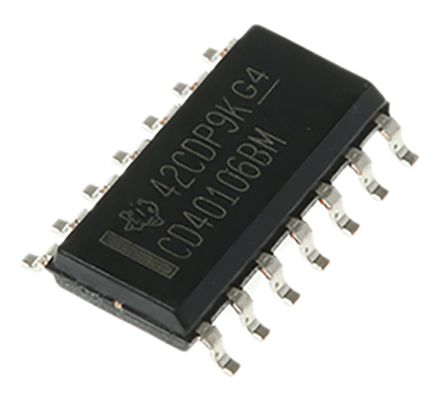

CD40106BM
| Manufacturer | |
| Description | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC Tube IC HEX SCHMITT TRIGGER 14-SOIC CD40106BM, CMOS Hex Schmitt Trigger Inverter, 4.2mA 3 to 18V 14-Pin SOIC Inverters CMOS Hex Schmitt Triggers IC, HEX SCHMITT TRIGGER, CMOS, 14SOIC IC: digital; Schmitt trigger; Channels:6; CMOS; SO14; 3÷18VDC CMOS Hex Schmitt Triggers Logic IC SOIC-14, CD40106, CD40106BM, Texas Instruments , 六 反相器, 4.2mA, 14针 SOIC封装 |
| Category |
Business
| Product Category | Inverters | Standard Package | Bulk, Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :40106 | Rad Hardened | No |
Electrical
| Voltage | 5 | Input Type | Schmitt Trigger |
| Logic Type | CD4000 | Output Type | Schmitt Trigger |
| Number of Bits | 6 | Voltage Rating | 3.3|5|9|12|15 V |
| Current - Output | :6.8mA | Number of Inputs | 1 |
| Voltage - Supply | 3 V ~ 18 V | Propagation Delay | 50 pF |
| Number of Channels | 6 | Number of Elements | 6 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 12 |
| Schmitt Trigger Input | Yes | Voltage - Supply (Min) | 18 V |
| Propagation Delay (Max) | 280 | Current - Quiescent (Iq) | 0.04 uA |
| Delay Time - Propagation | 280 ns, 140 ns, 120 ns | Logic Voltage - VIL, VIH | 0.9 V ~ 4 V |
| Current - Quiescent (Max) | 4µA | Current - Output High, Low | 4.2(Min) mA |
| Current - Output Source/Sink | -1/1 | Max Propagation Delay @ V, Max CL | 280@5V|140@10V|120@15V ns |
| Propagation Delay tpLH / tpHL (Max) | 280 | Common Mode Transient Immunity (Min) | Military |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 8.65mm | Weight | 0.004564 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :14 | Package / Case | 14SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 8.75(Max) | Package Quantity | SOIC |
| Size / Dimension | 8.65 x 3.91 x 1.58mm | Number of Positions | 14 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 14-SOIC |
Product Info
| Spg | 1000 | Type | digital |
| Series | CD40106B | Process | CMOS |
| Features | Schmitt Trigger | Function | Inverter Schmitt Trigger |
| Software | SCHS097D | Base Unit | :40106 |
| Technology | CMOS | Number of Units | 1 |
| Number of Circuits | 6 | RF Family/Standard | CD4000 |
| Utilized IC / Part | :CD40106BM | Printed Circuit Board | 14 |
Environmental
| Temperature - Test | -55 to 125 | Operating Temperature | -55 to 125 °C |
