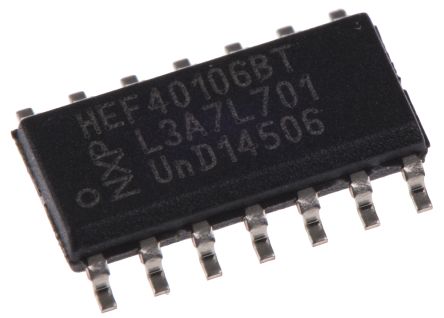

HEF40106BT
| Manufacturer | |
| Description | HEF40106BT, Hex Schmitt Trigger Inverter, 3.6mA 3 to 15V 14-Pin SOIC IC: digital; Schmitt trigger, inverting; Channels:6; CMOS; SO14 Logic IC SO-14, HEF40106BT, NXP , 六 反相器, 3.6mA, 14针 SOIC封装 |
| Category |
Electrical
| Input Type | Schmitt Trigger | Logic Type | 4000 |
| Output Type | Schmitt Trigger | Voltage Rating | 3 V |
| Voltage - Supply | 3 V | Propagation Delay | 50pF |
| Number of Channels | 6 | Number of Elements | 6 |
| Schmitt Trigger Input | 是 | Voltage - Supply (Min) | 15 V |
| Propagation Delay (Max) | 50pF | Current - Output 1 (Range) | 3.6mA |
| Current - Output 2 (Range) | -3.6mA | Current - Output High, Low | -3.6mA |
| Max Propagation Delay @ V, Max CL | 180 ns @ 5 V, 60 ns @ 15 V, 70 ns @ 10 V | ||
Mechanical
| Width | 4mm | Height | 1.45mm |
| Length | 8.75mm | Weight | 0.37 g |
| Mounting Type | Surface Mount | Number of Pins | 14 |
| Package / Case | SO14 | Package Cooled | SO |
| Package Quantity | 2500 | Size / Dimension | 8.75 x 4 x 1.45mm |
| Number of Positions | 14 | Pulse Width Distortion (Max) | 60 ns @ 15 V, 70 ns @ 10 V, 180 ns @ 5 V |
Product Info
| Spg | 2500 | Type | digital |
| Function | Inverter Schmitt Trigger | Technology | CMOS |
| Number of Units | 1 | Utilized IC / Part | Schmitt trigger, inverting |
Environmental
| Operating Temperature | +85 °C | ||
Documents & Media
Similar Parts
MC14106BCPG
on semiconductor
Inverter Schmitt Trigger 6-Element CMOS 14-Pin PDIP Rail IC SCHMITT TRIGGER HEX 14DIP IC, HEX INVERTER, SCHMITT TRIGGER, DIP14 TRIGGER,HexSchmitt;PDIP-14;CMOSLogic;-0.5TO+18V;+/-10mAO/P;500mW Logic IC DIL-14, MC14106BCPG, ON Semiconductor
HCF40106BEY
stmicroelectronics
Inverter Schmitt Trigger 6-Element CMOS 14-Pin PDIP Tube HEX SCHMITT TRIGGER DIP14 IC HEX SCHMITT TRIGGER 14 DIP HCF40106BEY, Hex Schmitt Trigger Inverter, 2.4mA 3 to 20V 14-Pin PDIP IC, 4000 CMOS, 40106, DIP14, 15V Circuit;DIP;HexSchmitt-TriggerLogic;-0.5TO+22V;200mW;30uA(Max.)ICC
CD40106BE
texas instruments
Inverter Schmitt Trigger 6-Element CMOS 14-Pin PDIP Tube Inverters Hex Schmitt Trigger IC HEX SCHMITT TRIGGER 14-DIP CD40106BE, CMOS Hex Schmitt Inverter, 4.2mA 3 to 18V 14-Pin PDIP IC, HEX INVERTER, 4000 CMOS, 14DIP IC, HEX INVERTER, SCHMITT TRIGGER, DIP14 CMOS Hex Schmitt Triggers Logic IC DIL-14, HEF40106BP, NXP , 六 CMOS 反相器, 4.2mA, 14针 PDIP封装
CD40106BM
texas instruments
Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC Tube IC HEX SCHMITT TRIGGER 14-SOIC CD40106BM, CMOS Hex Schmitt Trigger Inverter, 4.2mA 3 to 18V 14-Pin SOIC Inverters CMOS Hex Schmitt Triggers IC, HEX SCHMITT TRIGGER, CMOS, 14SOIC IC: digital; Schmitt trigger; Channels:6; CMOS; SO14; 3÷18VDC CMOS Hex Schmitt Triggers Logic IC SOIC-14, CD40106, CD40106BM, Texas Instruments , 六 反相器, 4.2mA, 14针 SOIC封装
HEF40106BP
NXP
Inverter Schmitt Trigger 6-Element CMOS 14-Pin PDIP Bulk IC, HEX INVERTER, SCHMITT, LOCMOS, 14DIP IC: digital; Schmitt trigger, inverting; Channels:6; CMOS; DIP14
CD40106BE
Harris Semiconductor
CD40106BM
Harris Semiconductor
HEF40106BT653
NXP
