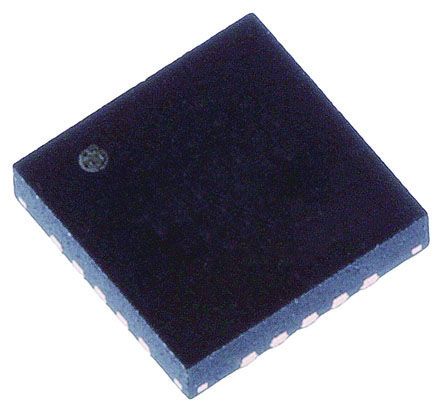

BQ24100RHLR
| Manufacturer | |
| Description | Switch Mode Charger Li-Ion/Li-Pol/NiMH/NiCD Packs 150mA to 2000mA 4.2V 20-Pin VQFN EP T/R IC LI-ION/POL CHARGE MGMT 20-QFN BQ24100RHLR, Battery Charge Controller, Lithium-Ion/Polymer, NiCD/NiMH, 2A, 20-Pin QFN EP Battery Management Sync Switch-Mode Li-Ion Charger CHARGER LI-ION SWITCH MODE, 24100 Standalone Synchronous Switch-mode Li-Ion Charger w/2A FET in QFN-20, 1-Cell Texas Instruments 锂离子、锂聚合物、镍镉、镍氢 电池充电控制器, 2000mA最大输出, 20针 QFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-17154-2 | Product Category | Battery Management |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :24100 | Rad Hardened | No |
Electrical
| Voltage Rating | 4.2 V | Number of Cells | :1 |
| Current - Output | 150 to 2000 mA | Voltage - Supply | 4.35 to 16 V |
| Regulator Topology | Switchmode Buck | Charge Current - Max | :2A |
| Current - Output (Typ) | 150mA | Voltage - Supply (Min) | 4.35 V |
| Current - Supply (Main IC) | 2 | ||
Mechanical
| Width | 3.5mm | Height | 0.9mm |
| Length | 4.5mm | Weight | 0.001668 oz |
| Packaging | Tape and Reel | Case Color | :QFN |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20VQFN EP | Package Cooled | QFN EP, VQFN EP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 4.65(Max) |
| Package Quantity | VQFN EP | Size / Dimension | 4.5 x 3.5 x 0.9mm |
| Number of Positions | 20 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 20-VQFN (3.5x4.5) | ||
Product Info
| Type | Switch Mode Charger | Series | BQ24100 |
| Function | Charge Management | Software | SLUS606O |
| Base Unit | :24100 | Product Type | Charge Management |
| Battery Series | :Charge Management | Pattern Number | Y |
| Battery Chemistry | Li-Ion|Li-Pol|NiMH|NiCD Packs | Control Interface | Standalone |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
Online Document
Online Document
PDF Document
Online Document
