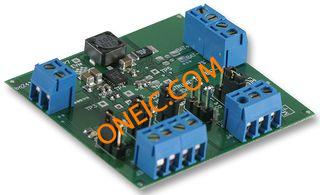

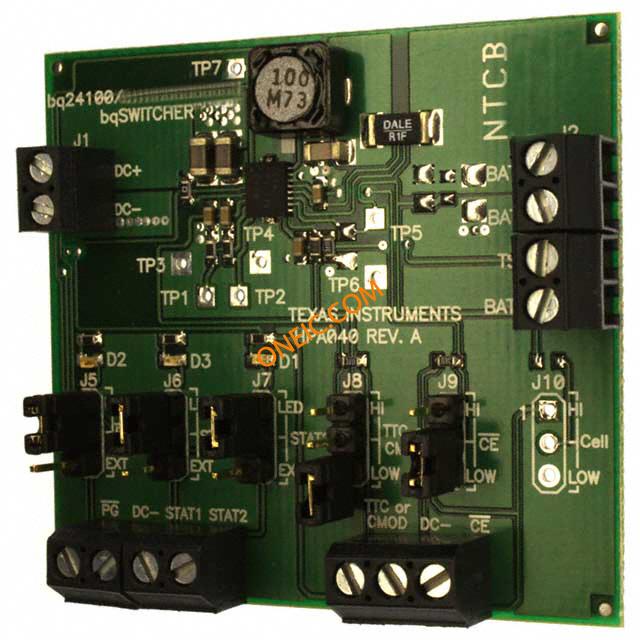

BQ24100EVM
| Manufacturer | |
| Description | Synchronous Switch Mode, Li-Ion And Li-Polymer Charge-Management IC With Integrated Power FETs Power Management IC Development Tools BQ24100 Eval Mod EVALUATION MODULE FOR BQ24100 BQ24100, BATTERY MGMT, EVAL MODULE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Management Modules | Other Names | 296-17258 |
| Product Category | Power Management IC Development Tools | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | RoHS Not Applicable | Tariff No | 85423190 |
Electrical
| Core Type | :Battery Charger | Voltage Rating | 5 V |
| Number of Elements | :BQ24100 | ||
Mechanical
| Weight | 0.34 | Packaging | Reel |
| Size / Dimension | 50.8 mm x 47 mm | ||
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | No | Features | http://download.siliconexpert.com/pdfs/2013/2/18/4/39/28/77/txn_/manual/... |
| Kit Type | :Power Management - Battery | Technology | Battery Management |
| Kit Contents | :Evaluation Module, User Guide, Bill of Materials, Component Placement, BQ24100 Data Sheet | Main Purpose | Power Management, Battery Charger |
| Tool Type Feature | BQ24100 | Primary Attributes | 1 Cell- Li-Ion / Li-Pol, 4.2V @ 2A Out, CV/CC, Up to 16V In |
| RF Family/Standard | bq24100 | Utilized IC / Part | BQ24100 |
| Chipset Manufacturer | :Texas Instruments | Secondary Attributes | Safety Timer, Cell Temperature Monitoring, Status LEDs |
| Application Specifics | :Battery Charger | MCU Supported Families | :BQ241xx |
| For Use With/Related Products | :BQ24100 | ||
Documents & Media
Online Document
PDF Document
Online Document
PDF Document
Online Document
