AM3352BZCE30
| Manufacturer | |
| Description | IC ARM CORTEX MPU 298NFBGA Microprocessors - MPU Sitara ARM Cortex-A8 MPU MPU AM335x RISC 32-Bit 300MHz 1.8V/3.3V 298-Pin NFBGA IC MPU, SITARA CORTEX A8, 300MHZ, 298BGA Sitara Processor |
| Category |
Business
| Tradename | Sitara | Other Names | 296-36202-5 |
| Standard Package | 160 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423190 | Part Status | ACTIVE |
| Rad Hardened | No | Security Features | Cryptography, Random Number Generator |
Electrical
| Speed | 300MHz | Voltage | 0.912 V ~ 1.144 V |
| Ethernet | 10/100/1000 Mbps (2) | Core Size | 32 b |
| Core Type | ARM Cortex A8 | Frequency | 300 MHz |
| Interface | CAN, I2C, SPI, UART, USB | Clock Rate | 300 MHz |
| Memory Size | 128 KB | Voltage - I/O | 1.8V, 3.3V |
| Clock Frequency | :300MHz | RAM Controllers | LPDDR, DDR2, DDR3, DDR3L |
| Voltage - Supply | 1.1 V | Co-Processors/DSP | Multimedia; NEON™ SIMD |
| Program Memory Size | 64 KB | Graphics Acceleration | Yes |
Mechanical
| Weight | 0.00027 | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :298 | Package / Case | 298-LFBGA |
| Package Cooled | NFBGA | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | 160 | Supplier Device Package | 298-NFBGA (13x13) |
| Number of Cores/Bus Width | 32 bit | ||
Product Info
| USB | USB 2.0 + PHY (2) | Type | ARM® Microprocessor |
| Series | AM3352 | Software | SPRS717H |
| On-Chip RAM | Yes | Architecture | RISC |
| Core Processor | ARM Cortex-A8 | Pattern Number | Y |
| Number of Timers | 10 | Functional Diagram | fbd_sprs717h.gif |
| RF Family/Standard | AM335x | Utilized IC / Part | View |
| Additional Interfaces | CAN, I²C, McASP, McSPI, MMC/SD/SDIO, UART | Display & Interface Controllers | LCD, Touchscreen |
Environmental
| Temperature - Test | 0 to 90 | Operating Temperature | 0 C |
| Operating Temperature - Junction | 90C | ||
Documents & Media
Similar Parts
TPS650250RHBT
texas instruments
Power Management 32-Pin VQFN EP T/R POWER MANAGEMENT IC FOR LI-ION POWERED SYSTEMS IC PWR MGMT LI-ION SYSTEMS 32QFN Power Management IC for Li-Ion Sys QFN32 Battery Management Power Mgmt IC for Li-Ion Pwr Sys IC, POWER MANAGEMENT, QFN-32 PMU, LI-ION SYSTEMS, 32QFN Power Management IC (PMIC) for Li-Ion Powered Systems Texas Instruments 6输出 电源管理 IC, 降压, 800mA, 1.5 → 6.5 V输入, 1 → 3.3 V输出, 2.25 MHz, 32针 QFN封装
TMDXEVM3358
texas instruments
GENERAL PURPOSE AM335X EVM DEVELOPMENT BOARDS & KITS - ARM AM335X EVAL MOD EVAL MODULE FOR AM335X AM335x ARM Cortex-A8 Evaluation Module Development Boards & Kits - ARM AM335x Eval Mod AM335X, WLAN / BLUETOOTH, EVAL MOD
TPS65910A3A1RSL
Texas Instruments
Power Management Unit 48-Pin VQFN EP T/R IC PWR MGMT 4DCDC/8 LDO 48VQFN PMIC Solutions Int Pwr Mgmt IC PMU, 3BUCK, 2BOOST, 9LDO, 48VQFN Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family Texas Instruments 11输出 电源管理 IC, 降压, 1.7A, 2.7 → 5.5 V输入, 1.78 → 1.88 V输出, 3 MHz, 48针 Power Management Specialized - PMIC Int Pwr Mgmt IC

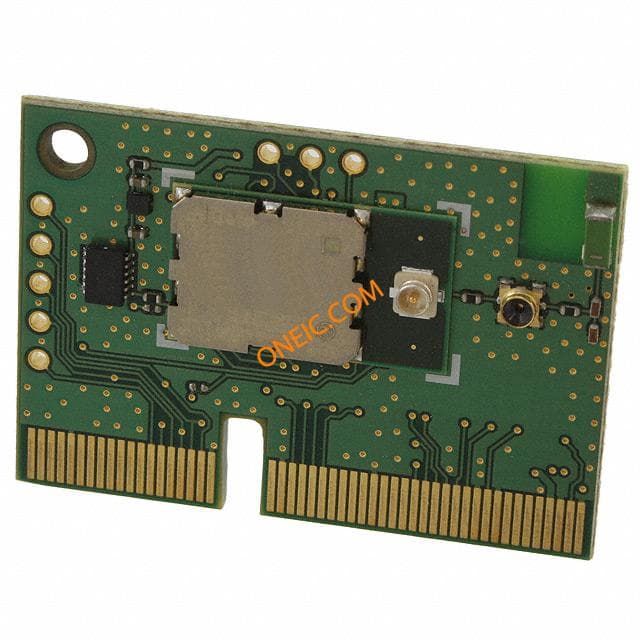

TMDXWL1271COM6M
Texas Instruments
DAUGHTER CARD WL1271 WIFI/BT WL1271 Wi-Fi & Bluetooth Daughter Card ADD-ON CARD, WIFI BLUTOOH, FOR AM335x EVM

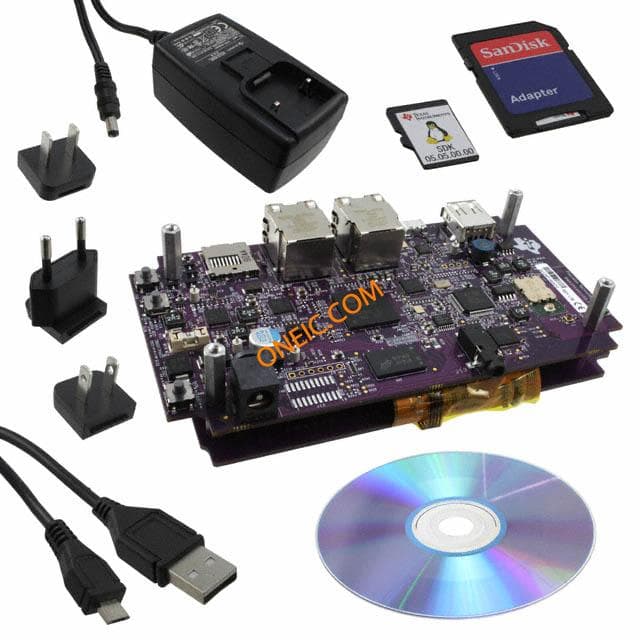

TMDSSK3358
