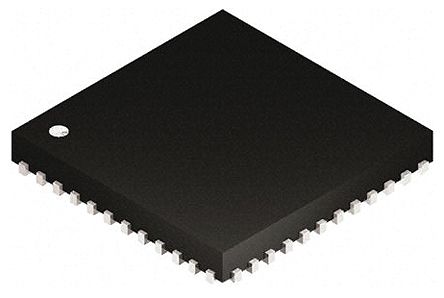

TPS65910A3A1RSL
| Manufacturer | |
| Description | Power Management Unit 48-Pin VQFN EP T/R IC PWR MGMT 4DCDC/8 LDO 48VQFN PMIC Solutions Int Pwr Mgmt IC PMU, 3BUCK, 2BOOST, 9LDO, 48VQFN Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family Texas Instruments 11输出 电源管理 IC, 降压, 1.7A, 2.7 → 5.5 V输入, 1.78 → 1.88 V输出, 3 MHz, 48针 Power Management Specialized - PMIC Int Pwr Mgmt IC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-30399-5 | Product Category | PMIC Solutions |
| Standard Package | 60 | Factory Pack Quantity | 60 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 12 | Regulator Type | 9 |
| Voltage Rating | 2.5 V to 5.5 V | Current - Output | 20 mA |
| Voltage - Supply | 1.7 V ~ 5.5 V | Number of Outputs | :11 |
| Current Rating (Max) | Catalog | Number of Regulators | :9 |
| Frequency - Switching | 3000 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 6.15(Max) | Weight | 0.000104 |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :48 | Package / Case | 48-VFQFN Exposed Pad |
| Package Cooled | VQFN EP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 6.15(Max) | Package Quantity | VQFN EP |
| Number of Positions | 48 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 48-VQFN (6x6) | ||
Product Info
| Series | TPS65910A3 | Features | Comm Control Dynamic Voltage Scaling Enable I2C Control Over Current Protection Power Sequencing Synchronous Rectification Thermal Shutdown |
| Software | SWCS046U | Applications | Handheld/Mobile Devices, OMAP™ |
| Manufacturer | Texas Instruments Samsung Freescale | Core Processor | AM1705/07 AM1806/08 AM335x AM3505/17 AM3703/15 DM3730/25 OMAP-L137/38 OMAP350xx TMS320C674x S5PV210 S5PC110 S5PC100 S5P6440x DM643x DM644x IMX27 IMX35 IMX37 IMX508 IMX51 IMX53 |
| Pattern Number | Y | Utilized IC / Part | View |
| Printed Circuit Board | 48 | Number of A/D Converters | :3 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
