ADS8344NB
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Analog to Digital Converters - ADC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 70 | Standard Package Name | SSOP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :8344 | Rad Hardened | No |
Electrical
| Interface | Serial (4-Wire) | Linearity | �2LSB |
| S/N Ratio | 86 | Input Type | Voltage |
| Resolution | 16 Bit | Input Signal | Single-Ended|Differential |
| INL/DNL (LSB) | 8LSB | Power - Input | Single |
| Power - Rated | 10 W | Converter Type | General Purpose |
| Data Interface | Serial | Input Polarity | Unipolar |
| Number of Bits | 16 | Reference Type | Ext |
| Voltage Rating | 2.7V/5V | Data Rate (Max) | 100 KSPs |
| Voltage - Rated | 2.7/5 | Current - Output | :1.5mA |
| Number of Inputs | 8 | Voltage - Supply | 2.7 V to 5 V |
| Resolution (Bits) | :16bit | Voltage Reference | External |
| Number of Channels | 8/4 | Number of Elements | 1 |
| Sampling Frequency | 100 ksps | Analog Input:Output | 5.25 |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Power - Average Forward | 3.6 |
| Power Dissipation (Max) | 10 mW | Differential Nonlinearity | ±2LSB |
| Voltage - Supply, Digital | 5.25 | Voltage Supply - Internal | :2.7V to 3.6V, 4.75V to 5.25V |
| Sampling Rate (Per Second) | 100k | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | Yes |
Mechanical
| Width | 5.6(Max) | Weight | 0.005527 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20SSOP | Package Cooled | SSOP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 7.5(Max) |
| Package Quantity | SSOP | Number of Positions | 20 |
| Shell Size - Insert | 2(Max) - 0.05(Min) | Supplier Device Package | 20-SSOP |
Product Info
| Series | ADS8344 | Software | SBAS139E |
| Base Unit | :8344 | Architecture | SAR |
| Functional Diagram | fbd_sbas139e.gif | Utilized IC / Part | View |
| Printed Circuit Board | 20 | Number of A/D Converters | 8|4 |
| Number of Inputs and Type | 8 Single-Ended, Unipolar; 4 Differential, Unipolar | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
Documents & Media
PDF Document
PDF Document
Similar Parts
ADS8326IBDGKT
texas instruments
$78.9820
Details
ADS8345NBG4
texas instruments
$99.6600
Details
OPA132U
texas instruments
$38.2092
Details
ADS8317IDGKT
texas instruments
$14694.3036
Details
ADS8343EBG4
texas instruments
$180.4720
Details

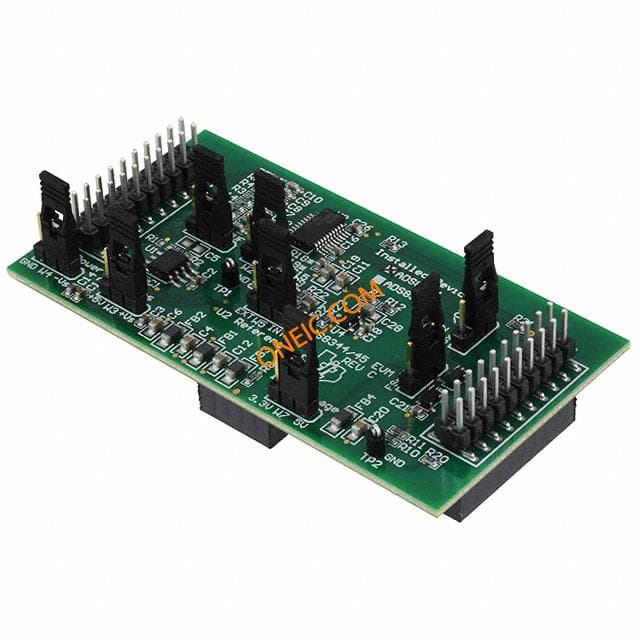

ADS8344EVM
