ADS8345NBG4
| Manufacturer | |
| Description | ADC Single SAR 100ksps 16-bit Serial 20-Pin SSOP Tube Single ADC SAR 100ksps 16-bit Serial 20-Pin SSOP Tube IC ADC 16BIT 8CH 20-SSOP ADS8345NBG4, 16-Bit Analogue to Digital Converter, Differential, Serial, 20-Pin SSOP Analog to Digital Converters - ADC 16-Bit 8-Ch Serial Output Sampling 16BIT ADC, SERIAL O/P, SMD, 8345 16-Bit, 8-Channel Serial Output Sampling Analog-to-Digital Converter |
| Category |
Business
| Product Category | Analog to Digital Converters - ADC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 70 | Standard Package Name | SSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :8345 | Rad Hardened | No |
Electrical
| Interface | Serial (4-Wire) | Linearity | �2LSB |
| S/N Ratio | 85 | Input Type | Voltage |
| Resolution | 16 Bit | Input Signal | Pseudo-Differential|Differential |
| INL/DNL (LSB) | ±6LSB | Power - Input | Single |
| Power - Rated | 10 W | Converter Type | General Purpose |
| Data Interface | Serial | Input Polarity | Bipolar |
| Number of Bits | 16 | Reference Type | Ext |
| Voltage Rating | ±1.25V/±2.5V | Data Rate (Max) | 100 KSPs |
| Ratio - S/H:ADC | Yes | Voltage - Rated | �1.25/�2.5 |
| Current - Output | :1.5mA | Number of Inputs | 8 |
| Voltage - Supply | 3.3 V, 5 V | Resolution (Bits) | :16bit |
| Voltage Reference | External | Number of Channels | 8 Channel/4 Channel |
| Number of Elements | 1 | Sampling Frequency | 100 ksps |
| Analog Input:Output | 5.25 | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Power - Average Forward | 3.6 | Power Dissipation (Max) | 10 mW |
| Differential Nonlinearity | ±2LSB | Voltage - Supply, Digital | 5.25 |
| Voltage Supply - Internal | :2.7V to 3.6V, 4.75V to 5.25V | Sampling Rate (Per Second) | 100k |
| Differential - Input:Output | Yes | Voltage - Supply Span (Typ) | Not Required V |
| S/N Ratio, ADCs / DACs (db) Typ | No | ||
Mechanical
| Width | 5.3mm | Height | 1.95mm |
| Length | 7.2mm | Weight | 0.005527 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20SSOP | Package Cooled | SSOP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 7.5(Max) |
| Package Quantity | SSOP | Size / Dimension | 7.2 x 5.3 x 1.95mm |
| Number of Positions | 20 | Shell Size - Insert | 2(Max) - 0.05(Min) |
| Supplier Device Package | 20-SSOP | ||
Product Info
| Series | ADS8345 | Software | SBAS177C |
| Base Unit | :8345 | Architecture | SAR |
| Amplifier Type | :High Speed | Functional Diagram | fbd_sbas177c.gif |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
| Number of A/D Converters | 8|4 | Number of Inputs and Type | 8 Single-Ended, Bipolar; 4 Differential, Bipolar |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
SN74LVC1G07DBVR
texas instruments
Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SOT-23 T/R IC BUFF/DVR NON-INVERT SOT23-5 Buffers & Line Drivers Single w/ OD IC, NON INVERTING BUFFER, SOT-23-5 Single Buffer/Driver With Open-Drain Output Logic IC SOT-23-5, SN74LVC1G07, SN74LVC1G07DBVR, Texas Instruments Texas Instruments 74LVC 系列 漏极开路 非反相 缓冲器/驱动器 , 5针 SOT-23封装
ADS8325IDGKT
texas instruments
ADC Single SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R Analog to Digital Converters - ADC 16-Bit 100kSPS Serial Out Single ADC SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC MICPWR SMPL 16BIT 8VSSOP IC, 16BIT ADC, 100KSPS, SMD, MSOP8 16-Bit, 100kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装
ADS8326IBDGKT
texas instruments
ADC Single SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC 16BIT SAMPLING 8VSSOP Analog to Digital Converters - ADC 16B Pseudo Diff Input A/D CONVERTER, 16BIT NMC, SAR, SMD A/D converter; Channels:1; 16bit; 250ksps; 2.7÷5.5VDC; MSOP8 16-Bit, Pseudo Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装

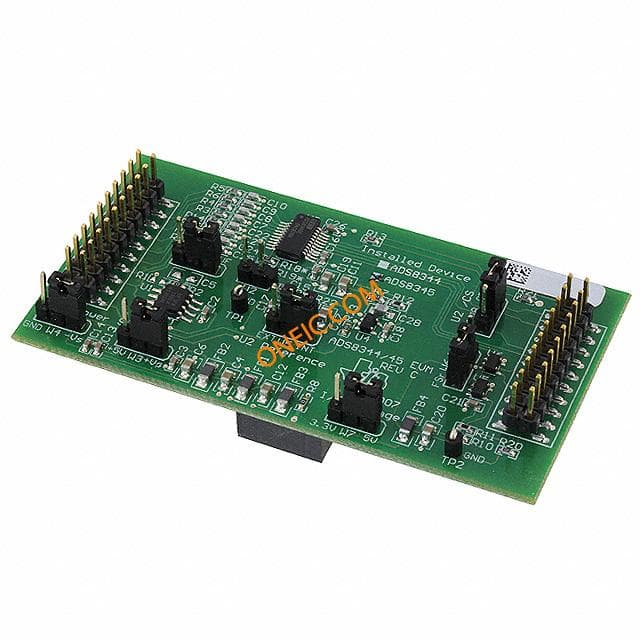

ADS8345EVM
texas instruments
Evaluation Module For ADS8345 Data Conversion IC Development Tools ADS8345 Eval Mod EVAL MOD FOR ADS8345
OPA132U
texas instruments
OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP GP 8MHZ 8SOIC High Speed Operational Amplifiers High Speed FET-Input Oper Amplifier OP Amp Single GP �18V 8-Pin SOIC Tube IC, OP-AMP, 8MHZ, 20V/ us, SOIC-8 OP-AMP, PRECISION, 8MHZ, 20V/US, SOIC-8 High Speed FET-Input Operational Amplifiers Operational Amplifier Single 8 MHz SO-8, OPA132U, Texas Instruments Texas Instruments 运算放大器, 8MHz, 8针 SOIC Operational Amplifiers - Op Amps High Speed FET-Input Oper Amplifier

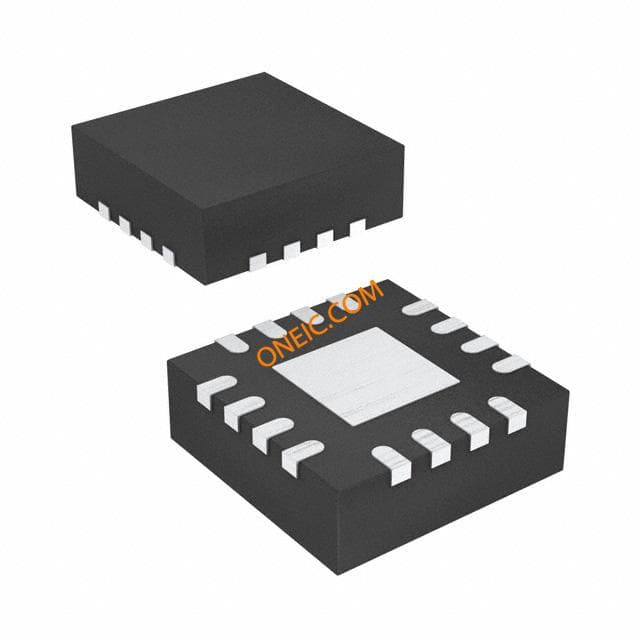

LOG114AIRGVT
