ADS8341EB
| Manufacturer | |
| Description | ADC Single SAR 100ksps 16-bit Serial 16-Pin SSOP Tube Analog to Digital Converters - ADC 16-Bit 4-Ch Serial Output Sampling Single ADC SAR 100ksps 16-bit Serial 16-Pin SSOP Tube IC 16BIT 4CH SERIAL A/D 16SSOP IC, 16BIT ADC, SMD, 8341, SSOP16 16-Bit, 4-Channel Serial Output Sampling Analog-To-Digital Converter Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 16针 SSOP封装 |
| Category |
Business
| Product Category | Analog to Digital Converters - ADC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SSOP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :8341 | Rad Hardened | No |
Electrical
| Interface | Serial (SPI) | Linearity | �2LSB |
| S/N Ratio | 86 | Input Type | Voltage |
| Resolution | 16 Bit | Input Signal | Single-Ended|Differential |
| INL/DNL (LSB) | ±8LSB | Power - Input | Single |
| Power - Rated | 10 W | Converter Type | General Purpose |
| Data Interface | Serial | Input Polarity | Unipolar |
| Number of Bits | 16 | Reference Type | Ext |
| Voltage Rating | 2.5V/5V | Data Rate (Max) | 100 KSPs |
| Voltage - Rated | 2.5/5 | Current - Output | :1.5mA |
| Number of Inputs | 4 | Voltage - Supply | 3.3 V, 5 V |
| Resolution (Bits) | :16bit | Voltage Reference | External |
| Number of Channels | 4/2 | Number of Elements | 1 |
| Sampling Frequency | 100 ksps | Analog Input:Output | 5.25 |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Rise / Fall Time (Typ) | :16µs |
| Power - Average Forward | 3.6 | Power Dissipation (Max) | 10 mW |
| Differential Nonlinearity | ±2LSB | Voltage - Supply, Digital | 5.25 |
| Voltage Supply - Internal | :2.7V to 3.6V, 4.75V to 5.25V | Sampling Rate (Per Second) | 100k |
| Differential - Input:Output | Yes | Voltage - Supply Span (Typ) | Not Required V |
| S/N Ratio, ADCs / DACs (db) Typ | Yes | ||
Mechanical
| Width | 4(Max) | Weight | 0.002603 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16SSOP | Package Cooled | SSOP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 5(Max) |
| Package Quantity | SSOP | Number of Positions | 16 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 16-SSOP |
Product Info
| Series | ADS8341 | Software | SBAS136D |
| Base Unit | :8341 | Architecture | SAR |
| Functional Diagram | fbd_sbas136d.gif | Utilized IC / Part | View |
| Printed Circuit Board | 16 | Number of A/D Converters | 4|2 |
| Number of Inputs and Type | 4 Single-Ended, Unipolar; 2 Differential, Unipolar | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
Documents & Media
Similar Parts
ADS8326IBDGKT
texas instruments
ADC Single SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC 16BIT SAMPLING 8VSSOP Analog to Digital Converters - ADC 16B Pseudo Diff Input A/D CONVERTER, 16BIT NMC, SAR, SMD A/D converter; Channels:1; 16bit; 250ksps; 2.7÷5.5VDC; MSOP8 16-Bit, Pseudo Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装
LOG112AID
texas instruments
SP Amp LOG Amp Single ±18V 14-Pin SOIC Tube IC OPAMP GP 1.4MHZ 14SOIC LOG112AID, Logarithmic Amplifier, 14-Pin SOIC Logarithmic Amplifiers Precision Log & Log Ratio Amp SP Amp LOG Amp Single ?18V 14-Pin SOIC Tube IC, AMP LOG, SMD, SOIC14, 112 Precision Logarithmic and Log Ratio Amplifier with On-Chip 2.5V Voltage Reference 对数放大器, 14针 SOIC封装

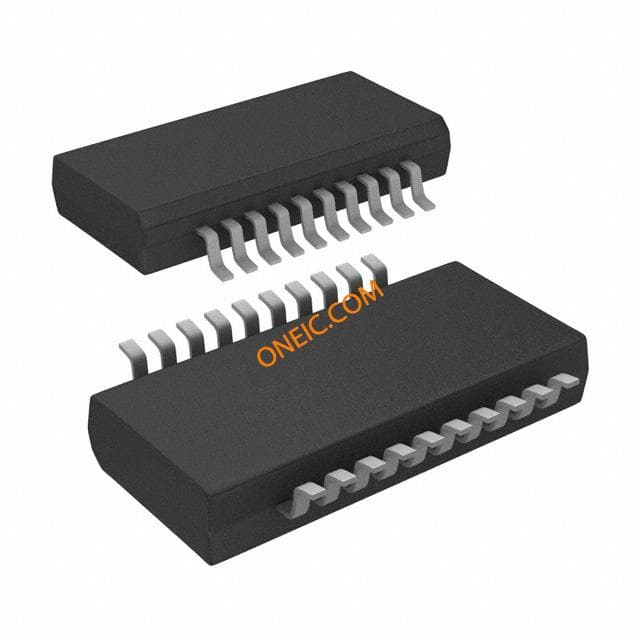

ADS8344EBG4
