ADS7864YB/250G4
| Manufacturer | |
| Description | ADC Dual SAR 500ksps 12-bit Parallel 48-Pin TQFP T/R Analog to Digital Converters - ADC 500kHz 12-Bit 6-Ch Simltns Smplng ADC Dual ADC SAR 500ksps 12-bit Parallel 48-Pin TQFP T/R IC 12BIT 500KHZ 6CH ADC 48-TQFP ADC 12-Bit 500kHz 6-Channel Parallel 500kHz, 12-Bit, 6-Channel Simultaneous Sampling Analog-To-Digital Converter |
| Category |
Business
| Product Category | Analog to Digital Converters - ADC | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | QFP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Parallel | Linearity | �0.4LSB(Typ) |
| S/N Ratio | 71 dB | Input Type | Voltage |
| Resolution | 12 Bit | Input Signal | Single-Ended|Differential |
| INL/DNL (LSB) | ±1LSB | Power - Input | Analog and Digital |
| Power - Rated | 50 W | Converter Type | General Purpose |
| Data Interface | Parallel | Input Polarity | Bipolar |
| Number of Bits | 12 | Reference Type | Ext Int |
| Voltage Rating | ±2.5V | Data Rate (Max) | 500 KSPs |
| Voltage - Rated | �2.5 | Number of Inputs | 6 |
| Voltage - Supply | 5 V | Power Supply Type | Single |
| Voltage Reference | Internal, External | Number of Channels | 6 |
| Number of Elements | 2 | Sampling Frequency | 500 ksps |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 2 |
| Voltage Supply Source | Analog and Digital | Power Dissipation (Max) | 50 mW |
| Differential Nonlinearity | ±0.4LSB(Typ) | Sampling Rate (Per Second) | 500k |
| Differential - Input:Output | Yes | Voltage - Supply Span (Typ) | Not Required V |
| S/N Ratio, ADCs / DACs (db) Typ | 71 dB | ||
Mechanical
| Width | 7.2mm | Height | 1.05mm |
| Length | 7.2mm | Weight | 0.004847 oz |
| Packaging | Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 48TQFP | Package Cooled | TQFP |
| Length - Overall | 7.2(Max) | Package Quantity | TQFP |
| Size / Dimension | 7.2 x 7.2 x 1.05mm | Number of Positions | 48 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 48-TQFP (7x7) |
Product Info
| Series | ADS7864 | Software | SBAS141A |
| Architecture | SAR | Functional Diagram | fbd_sbas141a.gif |
| Utilized IC / Part | View | Printed Circuit Board | 48 |
| Number of A/D Converters | 6 | Number of Inputs and Type | 12 Single-Ended, Bipolar; 6 Differential, Bipolar |
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
Similar Parts
OP07CP
texas instruments
OP Amp Single GP ±18V 8-Pin PDIP Tube IC OPAMP GP 600KHZ 8DIP OP07CP, Operational Amplifier 0.6MHz, 8-Pin PDIP OP Amp Single GP �18V 8-Pin PDIP Tube IC, OP AMP, LOW OFFSET, DIP8 IC, OP-AMP LOW OFFSET, TUBE50 IC, OP-AMP, 600KHZ, 0.3V/ us, DIP-8 Operational amplifier; 600kHz; 3÷18VDC; Channels:1; DIP8 Low-Offset Voltage Operational Amplifier Operational Amplifier Single 600 kHz PDIP-8, OP07, OP07CP, Texas Instruments Texas Instruments E4 运算放大器, 600kHz, 8针 PDIP Precision Amplifiers Low Offset Volt Prec
TMS320LF2407APGEA
texas instruments
DSP Fixed-Point 16-Bit 40MHz 40MIPS 144-Pin LQFP IC MCU 16BIT 64KB FLASH 144LQFP TMS320LF2407APGEA, 16bit Digital Signal Processor 40MHz 64kb Flash EEPROM, 5kb RAM, 144-Pin LQFP Digital Signal Processors & Controllers - DSP, DSC 16-Bit Fixed Point DSP with Flash 16BIT DSP, FLASH, SMD, 320LF2407 Digital Signal Processor; 40MHz; Mounting: SMD; LQFP144 Microcontroller 16/32 Bit LQFP-144, TMS320 LF2407, TMS320LF2407APGEA, Texas Instruments Texas Instruments 16bit 数字信号处理器 DSP, 40MHz, 64 kB ROM 闪存 EEPROM, 5 kB RAM, 144针 LQFP封装
.jpg&w=3840&q=75)
PGA204BU
texas instruments
SP Amp INSTR Amp Single ±18V 16-Pin SOIC Tube IC OPAMP INSTR 1MHZ 16SOIC PGA204BU, Instrumention Amplifier, 80dB CMRR, 16-Pin SOIC SP Amp INSTR Amp Single �18V 16-Pin SOIC Tube AMP INSTRUMENT PROG GAIN, SOIC16 Programmable Gain Instrumentation Amplifier Texas Instruments 仪表放大器, 50μV偏置, 80dB CMRR 16针 SOIC封装 Instrumentation Amplifiers Programmable Gain Instrum Amp
ADS8365IPAGG4
texas instruments
ADC Hex SAR 250ksps 16-bit Parallel 64-Pin TQFP Tray Hex ADC SAR 250ksps 16-bit Parallel 64-Pin TQFP Tray IC ADC 16BIT 250KSPS 6CH 64-TQFP ADC 16-Bit 6-Ch 250kSPS Simult. Sampling Analog to Digital Converters - ADC 16B 250kSPS 6Ch Simu Sampling SAR ADC IC, 16BIT ADC, 6CH SAR, SMD, TQFP64 16-Bit 250kSPS 6-Ch Simultaneous Sampling SAR ADC
ADS1100A0IDBVT
texas instruments
ADC Single Delta-Sigma 128sps 16-bit Serial 6-Pin SOT-23 T/R IC ADC 16-BIT I2C PROGBL SOT23-6 Single ADC Delta-Sigma 128sps 16-bit Serial 6-Pin SOT-23 T/R 16BIT ADC, SMD, 1100A0, SOT-23-6 IC, ADC, 16BIT, 128SPS, SOT-23-6 Self-Calibrating, 16-Bit Analog-to-Digital Converter A/D converter IC 16 Bit SOT-23-6, ADS1100, ADS1100A0IDBVT, Texas Instruments Texas Instruments , 16 位 ADC, 差分输入, 串行接口, 6针 SOT-23封装 Analog to Digital Converters - ADC Self-Calibrating 16-Bit
DAC7624U
texas instruments
DAC 4-CH R-2R 12-bit 28-Pin SOIC Tube Digital to Analog Converters - DAC 12-Bit Quad Voltage Output IC 12-BIT QUAD GP D/A 28-SOIC 12BIT DAC QUAD VOLT O/P, SMD, 7624 D/A converter; 12bit; 100ksps; Channels:4; 4.75÷5.25VDC; SO28 12-Bit Quad Voltage Output Digital-to-Analog Converter
TMS320LF2406APZA
texas instruments
DSP Fixed-Point 16-Bit 40MHz 40MIPS 100-Pin LQFP IC MCU 16BIT 64KB FLASH 100LQFP TMS320LF2406APZA, 16bit Digital Signal Processor 40MHz 64kb Flash EEPROM, 5kb RAM, 100-Pin LQFP 16BIT DSP, FLASH, SMD, 320LF2406 Microcontroller 16/32 Bit LQFP-100, TMS320 LF2406, TMS320LF2406APZA, Texas Instruments Texas Instruments 16bit 数字信号处理器 DSP, 40MHz, 64 kB ROM 闪存 EEPROM, 5 kB RAM, 100针 LQFP封装 Digital Signal Processors & Controllers - DSP, DSC 16-Bit Fixed-Pt DSP with Flash
ADS7864M-EVM
texas instruments

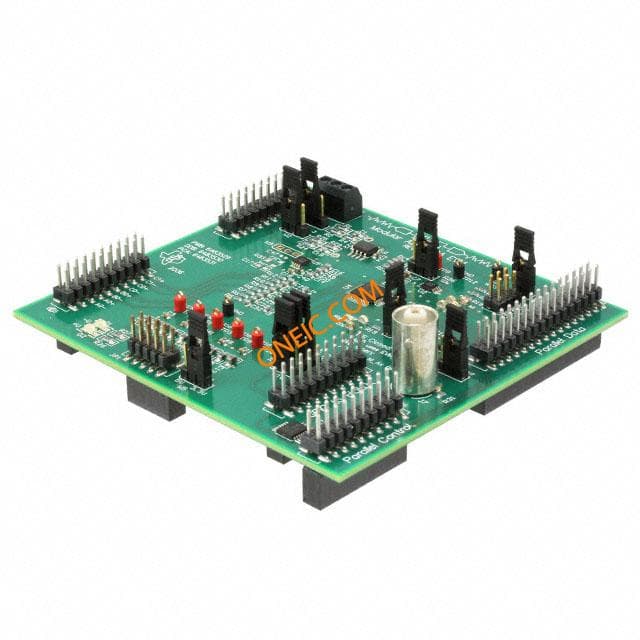

Evaluation Board For 500KHz, 12-Bit, 6-Channel Simultaneous Sampling Analog-To-Digital Converter Data Conversion IC Development Tools ADC CONVERTER EVAL MODULE FOR ADS7864M
ADS8361IDBQG4
texas instruments
ADC Dual SAR 500ksps 16-bit Serial 24-Pin SSOP Tube Dual ADC SAR 500ksps 16-bit Serial 24-Pin SSOP Tube IC ADC DUAL 16BIT 500KSPS 24QSOP Analog to Digital Converters - ADC 16-Bit 500 kSPS 2 ADC 4ch ser out 16BIT ADC, DUAL, SMD, 8361, SSOP24 16-Bit 500 kSPS 2 ADCs, 4ch, serial out
TMS320F240PQG4
Texas Instruments

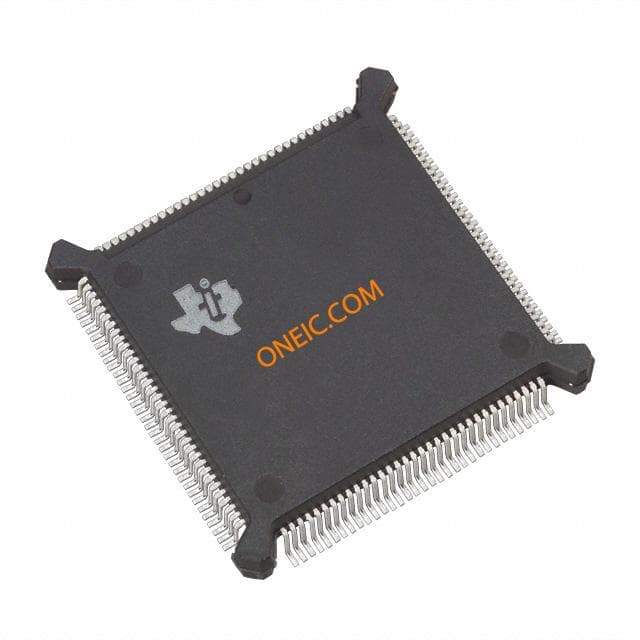

IC CMOS DSP CNTRLR 132-BQFP IC MCU 16BIT 32KB FLASH 132QFP C2000 DSP, SMD, 320F240, PQFP132
