ADS8365IPAGG4
| Manufacturer | |
| Description | ADC Hex SAR 250ksps 16-bit Parallel 64-Pin TQFP Tray Hex ADC SAR 250ksps 16-bit Parallel 64-Pin TQFP Tray IC ADC 16BIT 250KSPS 6CH 64-TQFP ADC 16-Bit 6-Ch 250kSPS Simult. Sampling Analog to Digital Converters - ADC 16B 250kSPS 6Ch Simu Sampling SAR ADC IC, 16BIT ADC, 6CH SAR, SMD, TQFP64 16-Bit 250kSPS 6-Ch Simultaneous Sampling SAR ADC |
| Category |
Business
| Product Category | Analog to Digital Converters - ADC | Standard Package | Rail / Tube, Trays |
| Factory Pack Quantity | 160 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Parallel | Linearity | �1.5LSB(Typ) |
| S/N Ratio | 88(Typ) dB | Input Type | Voltage |
| Resolution | 16 Bit | Input Signal | Single-Ended|Differential |
| INL/DNL (LSB) | ±8LSB | Power - Input | Single |
| Power - Rated | 241 W | Converter Type | General Purpose |
| Data Interface | Parallel | Input Polarity | Bipolar |
| Number of Bits | 16 | Reference Type | Ext Int |
| Regulator Type | :ADC | Voltage Rating | ±2.5V |
| Data Rate (Max) | 250 KSPs | Voltage - Rated | �2.5 |
| Current - Output | :40mA | Number of Inputs | 6 |
| Voltage - Supply | 5 V | Power Supply Type | Single |
| Resolution (Bits) | :16bit | Voltage Reference | Internal|External |
| Number of Channels | 6 Channel | Number of Elements | 6 |
| Sampling Frequency | 250 ksps | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 6 | Voltage Supply Source | Single |
| Rise / Fall Time (Typ) | :100µs | Power Dissipation (Max) | 241 mW |
| Differential Nonlinearity | ±1.5LSB(Typ) | Voltage - Supply, Digital | :2.7V to 3.6V, 4.5V to 5.5V |
| Voltage Supply - Internal | :4.75V to 5.25V | Sampling Rate (Per Second) | 250k |
| Differential - Input:Output | Yes | Voltage - Supply Span (Typ) | Not Required V |
| S/N Ratio, ADCs / DACs (db) Typ | 88 dB | ||
Mechanical
| Width | 10.2mm | Height | 1.05mm |
| Length | 10.2mm | Weight | 0.009690 oz |
| Packaging | Tray | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :64 |
| Package / Case | 64TQFP | Package Cooled | TQFP |
| Material Finish | :MSL 4 - 72 hours | Length - Overall | 10.2(Max) |
| Package Quantity | TQFP | Size / Dimension | 10.2 x 10.2 x 1.05mm |
| Number of Positions | 64 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 64-TQFP (10x10) | ||
Product Info
| Series | ADS8365 | Software | SBAS362C |
| Base Unit | :8365 | Architecture | SAR |
| Functional Diagram | fbd_sbas362c.gif | Utilized IC / Part | View |
| Printed Circuit Board | 64 | Number of A/D Converters | 6 |
| Number of Inputs and Type | 12 Single-Ended, Bipolar; 6 Differential, Bipolar | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
INA114BP
texas instruments
SP Amp INSTR Amp Single ±18V 8-Pin PDIP Tube IC OPAMP INSTR 1MHZ 8DIP Instrumentation Amplifiers Precision Instrumentation Amp SP Amp INSTR Amp Single �18V 8-Pin PDIP Tube IC, AMP INSTRUMENTATION, PDIP8, 114 Operational amplifier; 1MHz; 2.25÷18VDC; Channels:1; DIP8 Precision Instrumentation Amplifier Texas Instruments 仪表放大器, 50μV偏置, 1MHz, 115dB CMRR 8针 PDIP封装
OPA627BP
texas instruments
OP Amp Single GP ±18V 8-Pin PDIP Tube IC OPAMP GP 16MHZ 8DIP OP Amp Single GP �18V 8-Pin PDIP Tube OP AMP, DIFET PRECISION, PDIP8, 627 Operational amplifier; 16MHz; 4.5÷18VDC; Channels:1; DIP8 Precision High-Speed Difet(R) Operational Amplifiers Texas Instruments 运算放大器, 16MHz, 8针 PDIP High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp
.jpg&w=3840&q=75)
PGA204BU
texas instruments
SP Amp INSTR Amp Single ±18V 16-Pin SOIC Tube IC OPAMP INSTR 1MHZ 16SOIC PGA204BU, Instrumention Amplifier, 80dB CMRR, 16-Pin SOIC SP Amp INSTR Amp Single �18V 16-Pin SOIC Tube AMP INSTRUMENT PROG GAIN, SOIC16 Programmable Gain Instrumentation Amplifier Texas Instruments 仪表放大器, 50μV偏置, 80dB CMRR 16针 SOIC封装 Instrumentation Amplifiers Programmable Gain Instrum Amp
INA118P
texas instruments
SP Amp INSTR Amp Single ±18V 8-Pin PDIP Tube IC OPAMP INSTR 800KHZ 8DIP INA118P, Instrumention Amplifier, 73dB CMRR, 8-Pin PDIP Instrumentation Amplifiers Precision Low Power Instrumentation Amp SP Amp INSTR Amp Single �18V 8-Pin PDIP Tube AMP, INSTRUMENTATION, 800KHZ, PDIP8 Operational amplifier; 800kHz; 1.35÷18VDC; Channels:1; DIP8 Precision, Low Power Instrumentation Amplifier Instrumentation Amplifier DIL-8, INA118, INA118P, Texas Instruments Texas Instruments 仪表放大器, 125μV偏置, 800kHz, 73dB CMRR 8针 PDIP封装
MSP430FG4619IPZ
texas instruments
MCU 16-bit MSP430 RISC 120KB Flash 2.5V/3.3V 100-Pin LQFP Tray IC MCU 16BIT 120KB FLASH 100LQFP 16-bit Microcontrollers - MCU 16-Bit 120KB Flash 4KB RAM MCU 16-bit MSP430 MSP430 RISC 120KB Flash 2.5V/3.3V 100-Pin LQFP Tray MCU, 16BIT, 120K FLASH, 8K RAM, LQFP100 16-Bit Ultra-Low-Power MCU, 120KB Flash, 4KB RAM, 12-Bit ADC, Dual DAC, DMA, 3 OPAMP, 160 Seg LCD
TMS320F2812PGFA
texas instruments
DSP Fixed-Point 32-Bit 150MHz 150MIPS 176-Pin LQFP IC MCU 32BIT 256KB FLASH 176LQFP TMS320F2812PGFA, 32bit Digital Signal Processor 150MHz 256kb Flash EEPROM, 36kb RAM, 176-Pin LQFP IC, DSP 150 MHZ, SMD 32-Bit Digital Signal Controller with Flash Microprocessor LQFP-176, TMS320 F2812, TMS320F2812PGFA, Texas Instruments Texas Instruments 32bit 数字信号处理器 DSP, 150MHz, 256 kB ROM 闪存 EEPROM, 36 kB RAM, 176针 LQFP封装 Digital Signal Processors & Controllers - DSP, DSC 32-Bit Digital Sig Controller w/Flash
OPA4340UA
texas instruments
OP Amp Quad GP R-R I/O 5.5V 14-Pin SOIC Tube IC OPAMP GP 5.5MHZ RRO 14SOIC Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail Operational amplifier; 5.5MHz; 2.5÷5.5VDC; Channels:4; SO14 Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier(TM) Series Operational Amplifier Quad 5.5 MHz SO-14, OPA4340UA, Texas Instruments Texas Instruments 四路 运算放大器, 5.5MHz CMOS、轨至轨, 3 V 5 V, 14针 SOIC
ISO124P
texas instruments
SP Amp ISOL Amp Single ±18V 8-Pin PDIP Tube IC OPAMP ISOLATION 50KHZ 16DIP ISO124P, Isolation Amplifier, 8-Pin PDIP Isolation Amplifiers Precision Low Cost Isolation Amp SP Amp ISOL Amp Single �18V 8-Pin PDIP Tube IC, AMP ISOLATION, PDIP16, 124 Operational amplifier; 50kHz; 4.5÷18VDC; Channels:1; DIP16 Precision Lowest Cost Isolation Amplifier Isolation Amplifier DIL-16, ISO124, ISO124P, Texas Instruments Texas Instruments 隔离放大器, 8引脚 PDIP封装

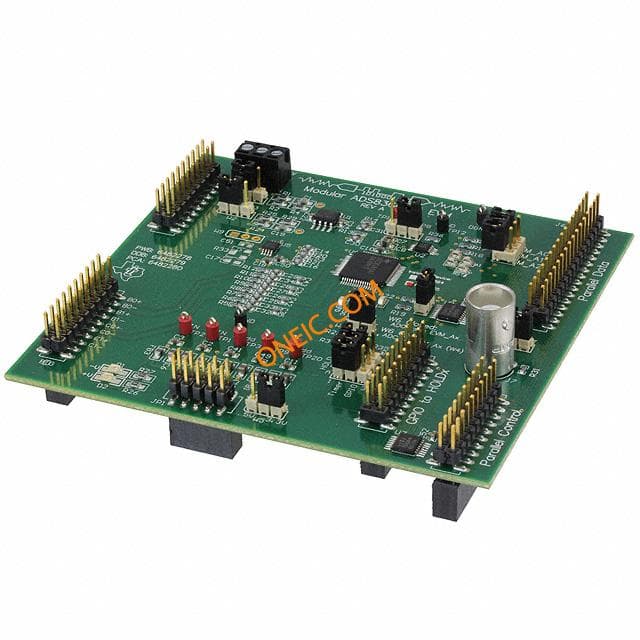

ADS8365M-EVM
