ADS7863IDBQ
| Manufacturer | |
| Description | ADC Dual SAR 2Msps 12-bit Serial 24-Pin SSOP Tube Analog to Digital Converters - ADC Dual 2MSPS 12B 3+3 or 2+2Ch Sampling Dual ADC SAR 2Msps 12-bit Serial 24-Pin SSOP Tube IC ADC 12BIT DUAL 2MSPS 24-QSOP IC, ADC 12BIT DUAL 2MSPS 24-QSOP Resolution (Bits |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-23309-5 | Product Category | Analog to Digital Converters - ADC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Interface | Serial | Linearity | �1LSB |
| S/N Ratio | 71.5(Typ) dB | Input Type | Voltage |
| Resolution | 12 Bit | Input Signal | Pseudo-Differential|Differential |
| INL/DNL (LSB) | ±1.25LSB | Power - Input | Single |
| Power - Rated | 45.3 W | Converter Type | General Purpose |
| Data Interface | Serial | Input Polarity | Bipolar |
| Number of Bits | 12 | Voltage Rating | ±2.5V |
| Data Rate (Max) | 1 MSPs | Ratio - S/H:ADC | Yes |
| Voltage - Rated | �2.5 | Current - Output | :6.5mA |
| Voltage - Supply | 5 V | Resolution (Bits) | :12bit |
| Voltage Reference | Internal, External | Number of Channels | 6/4 |
| Number of Elements | 2 | Sampling Frequency | 2 Msps |
| Number of ADCs / DACs | 2 | Voltage Supply Source | Single |
| Power Dissipation (Max) | 45.3 mW | Differential Nonlinearity | ±1LSB |
| Voltage - Supply, Digital | :2.7V to 3.6V, 4.5V to 5.5V | Voltage Supply - Internal | :2.7V to 5.5V |
| Sampling Rate (Per Second) | 2M | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | 71.5 dB |
Mechanical
| Width | 4(Max) | Weight | 0.004568 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :24 |
| Package / Case | 24SSOP | Package Cooled | SSOP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 8.75(Max) |
| Package Quantity | SSOP | Number of Positions | 24 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 24-SSOP/QSOP |
Product Info
| Series | ADS7863 | Base Unit | :7863 |
| Architecture | SAR | Printed Circuit Board | 24 |
| Number of A/D Converters | 6|4 | Number of Inputs and Type | 4 Differential, Bipolar; 6 Pseudo-Differential, Bipolar |
Environmental
| Operating Temperature | + 125 C | ||
Documents & Media
Similar Parts
ADS7864YB/250G4
texas instruments
ADC Dual SAR 500ksps 12-bit Parallel 48-Pin TQFP T/R Analog to Digital Converters - ADC 500kHz 12-Bit 6-Ch Simltns Smplng ADC Dual ADC SAR 500ksps 12-bit Parallel 48-Pin TQFP T/R IC 12BIT 500KHZ 6CH ADC 48-TQFP ADC 12-Bit 500kHz 6-Channel Parallel 500kHz, 12-Bit, 6-Channel Simultaneous Sampling Analog-To-Digital Converter
Details

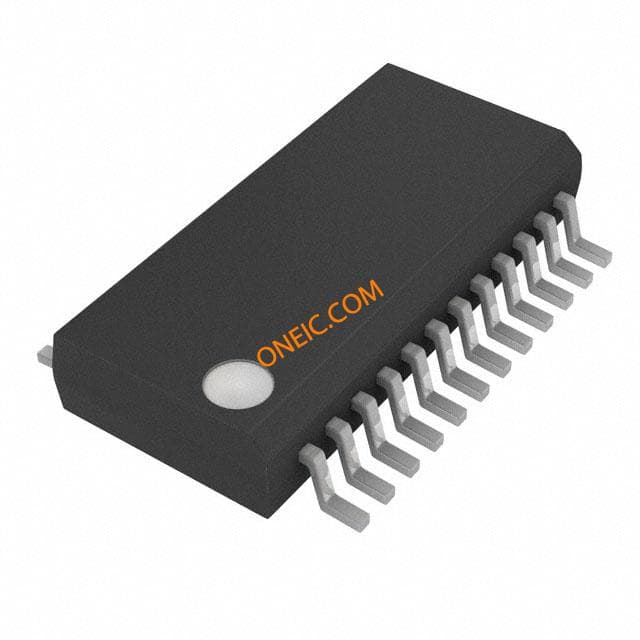

ADS8361IDBQG4
