ADC121S101EVAL
| Manufacturer | |
| Description | Data Conversion IC Development Tools ADC121S101 EVAL BOARD BOARD EVALUATION FOR ADC121S101 |
| Category |
Business
| Product | Evaluation Kits | Product Category | Data Conversion IC Development Tools |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | ||
Electrical
| Interface | Serial | Input Range | 0 ~ 5.25 V |
| Data Interface | Serial | Number of Bits | 12 |
| Current - Supply | 5 mA | Voltage - Supply | 2.7 V to 5.25 V |
| Number of ADCs / DACs | 1 | Power (Typ) @ Conditions | 2mW @ 1MSPS |
| Sampling Rate (Per Second) | 500k ~ 1M | ||
Mechanical
| Size / Dimension | 72 mm x 72 mm | ||
Product Info
| Type | ADC | Contents | Board |
| Function | 12 bit, Single Channel, 0.5 MSPS to 1 MSPS | Tool Type Feature | ADC121S101 |
| Utilized IC / Part | ADC121S101 | ||
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | + 125 C |
Documents & Media
Similar Parts
ADC121S101CISDX
Texas Instruments
Analog to Digital Converters - ADC ADC 12BIT 1CH 1MSPS 6-LLP
ADC121S101CIMFX
Texas Instruments
Analog to Digital Converters - ADC ADC 12BIT 1CH 1MSPS SOT23-6

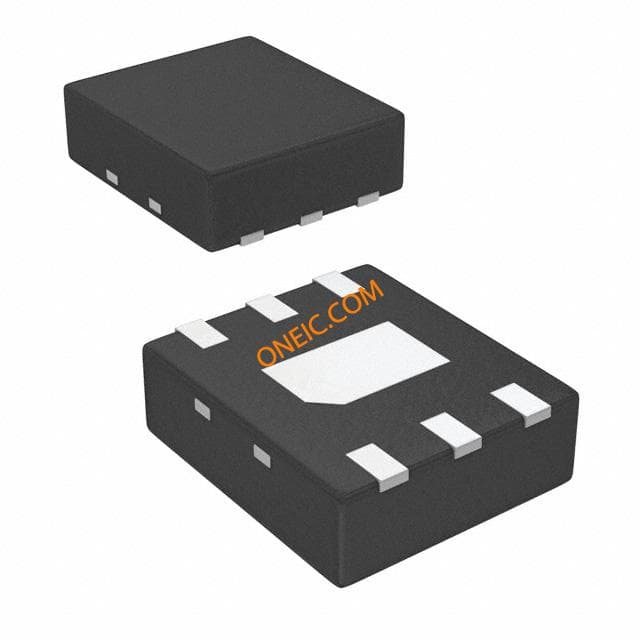

ADC121S101CISD/NOPB
