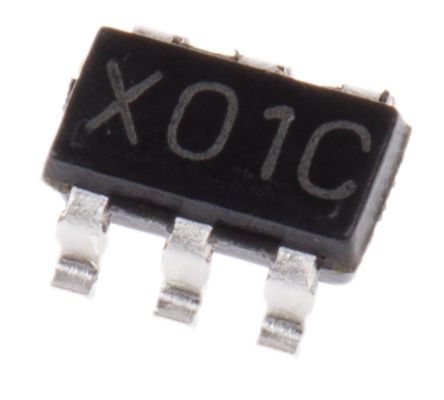

点击放大查看
ADC121S101CIMF/NOPB
| Manufacturer | |
| Description | ADC Single SAR 1Msps 12-bit Serial 6-Pin SOT-23 T/R IC ADC 12BIT 1MSPS SOT23-6 ADC121S101CIMF, 12-Bit Analogue to Digital Converter, SPI, 6-Pin SOT-23 Analog to Digital Converters - ADC SGL CHANNEL,0.5-1 MSPS,12B ADC Single ADC SAR 1Msps 12-bit Serial 6-Pin SOT-23 T/R Single Channel, 0.5 to 1 Msps, 12-Bit A/D Converter Texas Instruments , 12 位 ADC, SPI接口, 6针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | ADC121S101CIMF/NOPBDKR |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | Linearity | �1LSB |
| S/N Ratio | 72.5(Typ) dB | Input Type | Voltage |
| Resolution | 12 Bit | Input Signal | Single Ended |
| INL/DNL (LSB) | -1.1/1LSB | Power - Input | Single |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Input Polarity | Unipolar |
| Number of Bits | 12 | Reference Type | Supply |
| Voltage Rating | 5.25 V | Ratio - S/H:ADC | Yes |
| Voltage - Rated | 5.25 | Number of Inputs | 1 |
| Voltage - Supply | 3.3 V, 5 V | Digital I/O Lines | 串行 （SPI） |
| Distortion Rating | -1.1/1LSB | Number of Channels | 1 Channel |
| Number of Elements | 1 | Sampling Frequency | 1 Msps |
| Analog Input:Output | 5.25 | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single Supply |
| Gain Bandwidth Product | 1.2 LSB | Power - Average Forward | 2 |
| Voltage - Supply, Analog | 2.7 V to 5.25 V | Voltage - Supply, Digital | 5.25 |
| Sampling Rate (Per Second) | 500k ~ 1M | Differential - Input:Output | No |
| Voltage - Supply Span (Typ) | Not Required V | ||
Mechanical
| Width | 1.6mm | Height | 1.02mm |
| Length | 2.92mm | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 6 | Package / Case | 6SOT-23 |
| Package Cooled | SOT-23 | Package Quantity | 1000 |
| Size / Dimension | 2.92 x 1.6 x 1.02mm | Number of Positions | 6 |
| Supplier Device Package | SOT-23-6 | Shell Size - Insert (Convert To) | SAR |
Product Info
| Type | S/H ADC | Series | ADC121S101 |
| Software | SNAS304G | Architecture | SAR |
| Manufacturer | Texas Instruments | Pattern Number | Y |
| Functional Diagram | fbd_snas304g.gif | Utilized IC / Part | View |
| Number of A/D Converters | 1 | Number of Inputs and Type | 1 Single-Ended |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40°C ~ 125°C |
