553121-2
| Manufacturer | |
| Description | 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 24POS .085 R/A |
| Category |
Business
| Lead Time | 365 Days | Subcategory | Connector Interface |
| Standard Package | 540 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | ELV compliant, 5 of 6 Compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Color | Black | Material | Thermoplastic |
| Orientation | Reverse | Shield Type | No |
| Termination | Solder | 2nd Connector | Without |
| Mounting Type | No | Connector Type | Receptacle |
| Contact Finish | Tin-Lead over Nickel | Flange Feature | Hollow, Unthreaded |
| Mounting Style | Right Angle | Number of Rows | 2 |
| Connector Style | Outer Shroud Contacts | Panel Thickness | 3.18 [0.125] |
| Profile (W x H) | Standard | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Material - Frame | Thermoplastic |
| Panel Mount Type | Rear Mount | Number of Positions | 24 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Note | EMI | Gender | Receptacle |
| Manufacturer | AMP | Other Specifications | No |
| For Use With/Related Products | 5553121-2 | ||
Similar Parts
552443-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors 24 CONTACT,CHAMP PLUG SCREW LOCK Headers & Wire Housings PLUG 24P SCREW LOCK 26-28 AWG stranded Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:Connector Classification = IDCProduct Category = ConnectorsConnector24 PositionsPlugSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

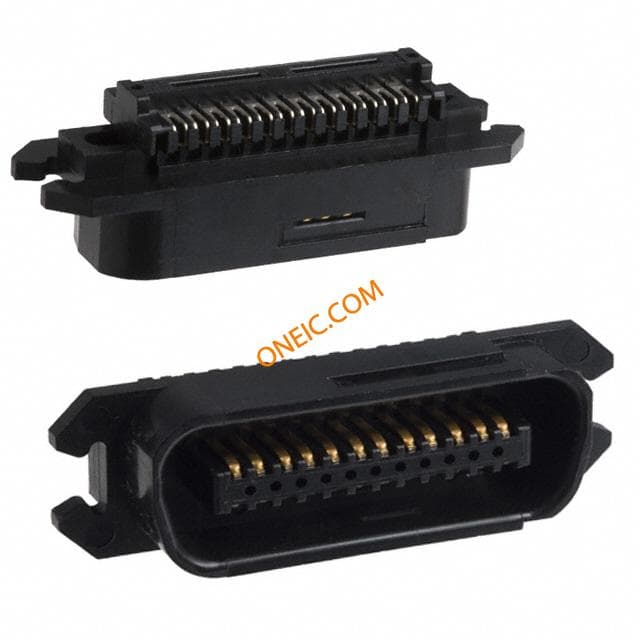

552469-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors 24 CONTACT,CHAMP PLUG BAIL LOCK Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray
552272-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 24 CONTACTS, PLUG, CHAMP, BAIL Headers & Wire Housings PLUG 24P BAIL LOCK 24-26 AWG Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 24Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics ASSY,PLUG,24POS,BSLOT ASSY, PLUG, 24 POS, B SLOT
552317-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 24 POS, C SLOT I/O Connectors PLUG 24P BAIL LOCK 22AWG solid/stranded

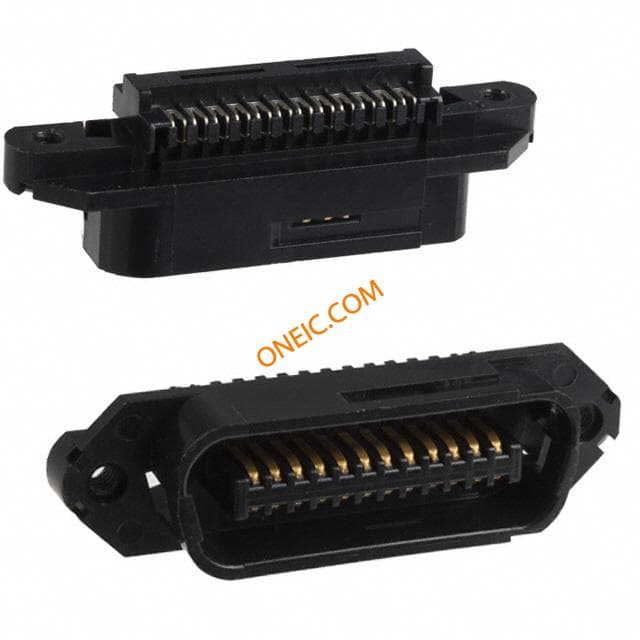

4-24036-0130
