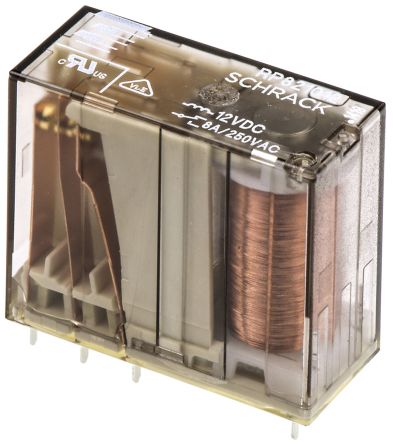

RP821012
| Manufacturer | |
| Description | General Purpose Relays DPDT 8A 12VDC PCB RELAY GEN PURPOSE DPDT 8A 12V DPDT PCB power relay,8A 12Vdc coil Electromechanical Relay DPDT 14A 12VDC 270Ohm Through Hole Electromechanical Relay DPDT 14A 12VDC 270Ohm Through Hole Product Highlights:RPII/2 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 8 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, DPCO, 12VDC REINFORCEDPCBR16A TE Connectivity 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 12V dc |
| Category |
Business
| Part # Aliases | 1393845-4 | Product Category | General Purpose Relays |
| Standard Package | 20 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85364900 |
| Approval Agency | :KEMA-KEUR, SEV, VDE | ||
Electrical
| Coil Type | Monostable | Coil Power | 500 mW |
| Range deg/s | :TE - RPII/2 Series | Coil Current | 44.4mA |
| Release Time | 3ms | Voltage - Core | :250V |
| Coil Resistance | 270 Ohms | Number of Poles | :2 |
| Current - Output | :8A | Voltage - Supply | 12 V |
| Switching Voltage | 400VAC - Max | Vgs(th) (Max) @ Id | 1.2 VDC |
| Voltage - Breakdown | :4kV | Current Rating (Max) | 16A |
| Power - Output Surge | 2 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :8A | Power - Average Forward | 500 mW |
| Vce(on) (Max) @ Vge, Ic | 8.4 VDC | Contact Rating (Current) | 8A |
| Voltage - Supply (Vcc/Vdd) | :21.6V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 12.6mm | Width | 12.6 mm |
| Height | 25.5 mm | Length | 29 mm |
| Weight | :18g | Packaging | Tube |
| Contact Form | 2 Form C (DPDT-BM) | Height (Max) | :29mm |
| Pitch - Post | :7.5mm | Mounting Type | Through Hole |
| Terminal Type | Through Hole | Mounting Style | PCB |
| Number of Pins | :8 | Contact Material | Silver Nickel |
| Termination Style | PC Pin | Contact Termination | PCB |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Power Relay | Series | RPII/2 |
| Features | Sealed - Fully | Relay Type | General Purpose |
| Application Specifics | Power | ||
Environmental
| Operate Time | 9ms | NEMA Frame Size | :IP67 |
| Operating Temperature | -40°C ~ 70°C | ||
Documents & Media
